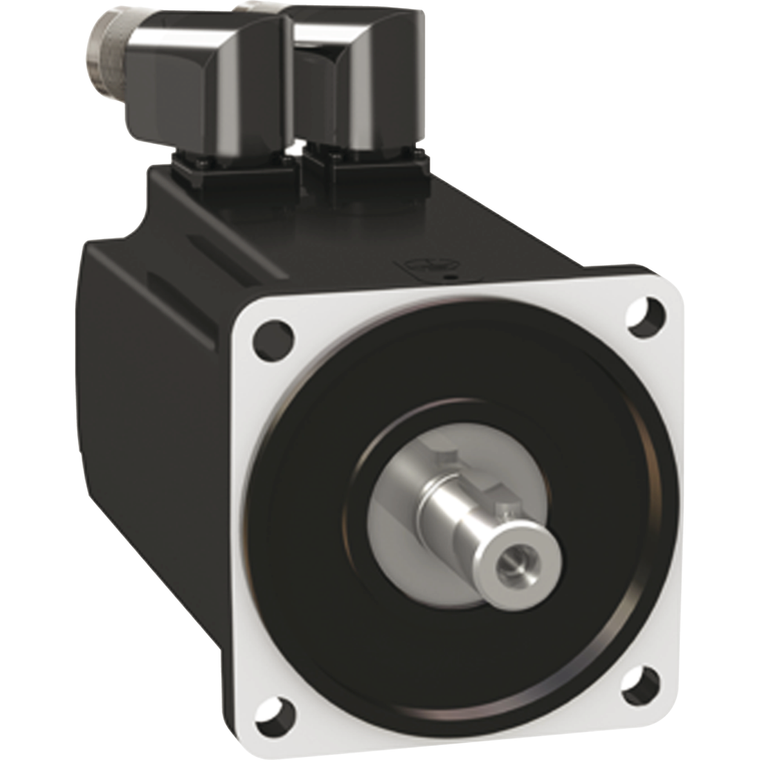

Schneider Electric BMH1001T22F2A Motor 100Mm Iec 3,6Nm Ip65/67 1350W No

SKU:

BMH1001T22F2A

UPC:

3606485196961

MPN:

Condition:

New

Peak Stall Torque:

8.9 N.m LXM32.D30M2 10 A, 115 V, single phase || 10.2 N.m LXM32.D18M2 6 A, 230 V, single phase

Brake Pull-In Power:

12 W

Number Of Mounting Holes:

4

Maximum Radial Force Fr:

900 N 1000 rpm || 720 N 2000 rpm || 630 N 3000 rpm || 570 N 4000 rpm || 530 N 5000 rpm

Type Of Cooling:

natural convection

Length:

170.3 mm

Shaft Length:

40 mm

Stator Electrical Time Constant:

4.5 ms 20 °C

Nominal Torque:

3.3 N.m LXM32.D30M2 10 A, 115 V, single phase || 2.8 N.m LXM32.D18M2 6 A, 230 V, single phase

Phase:

three phase

Environmental Disclosure:

ENVPEP111002EN

Net Weight:

4.8 kg

Warranty:

18 months

Number Of Motor Stacks:

1

Centring Collar Depth:

3.5 mm

Electrical Connection:

rotatable right-angled connectors

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Stator Inductance:

5.3 mH 20 °C

Centring Collar Diameter:

95 mm

Shaft End:

smooth shaft

Holding Torque:

5.5 N.m holding brake

Feedback Type:

multiturn SinCos Hiperface

Continuous Power:

1.74 W

Maximum Permanent Current:

19.38 A

Second Shaft:

without second shaft end

Maximum Current Irms:

15 A LXM32.D30M2 || 19.4 A LXM32.D18M2

Continuous Stall Torque:

3.4 N.m LXM32.D30M2 10 A, 115 V, single phase || 3.4 N.m LXM32.D18M2 6 A, 230 V, single phase

Nominal Output Power:

700 W LXM32.D30M2 10 A, 115 V, single phase || 900 W LXM32.D18M2 6 A, 230 V, single phase

Product Or Component Type:

servo motor

[Us] Rated Supply Voltage:

240 V

Shaft Diameter:

19 mm

Maximum Axial Force Fa:

0.2 x Fr

Number Of Motor Poles:

10

Holding Brake:

with

China Rohs Regulation:

X

Rohs Exemption Information:

Yes

Speed Feedback Resolution:

131072 points/turn x 4096 turns

Mounting Holes Diameter:

9 mm

Maximum Mechanical Speed:

6000 rpm

Pvc Free:

Yes

Circularity Profile:

N/A

Motor Flange Size:

100 mm

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Rotor Inertia:

3.68 kg.cm²

Mercury Free:

Yes

Sustainable Offer Status:

Green Premium product

Range Compatibility:

Lexium 32

Ip Degree Of Protection:

IP65 standard || IP67 with IP67 kit

Mounting Support:

international standard flange

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Device Short Name:

BMH

Back Emf Constant:

43.3 V/krpm 120 °C

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Continuous Stall Current:

5.11 A

Product Compatibility:

LXM32.D30M2 115 V single phase || LXM32.D18M2 230 V single phase

Circle Diameter Of The Mounting Holes:

115 mm

Nominal Speed:

2000 rpm LXM32.D30M2 10 A, 115 V, single phase || 3000 rpm LXM32.D18M2 6 A, 230 V, single phase

Stator Resistance:

1.19 Ohm 20 °C

Torque Constant:

0.67 N.m/A 120 °C
