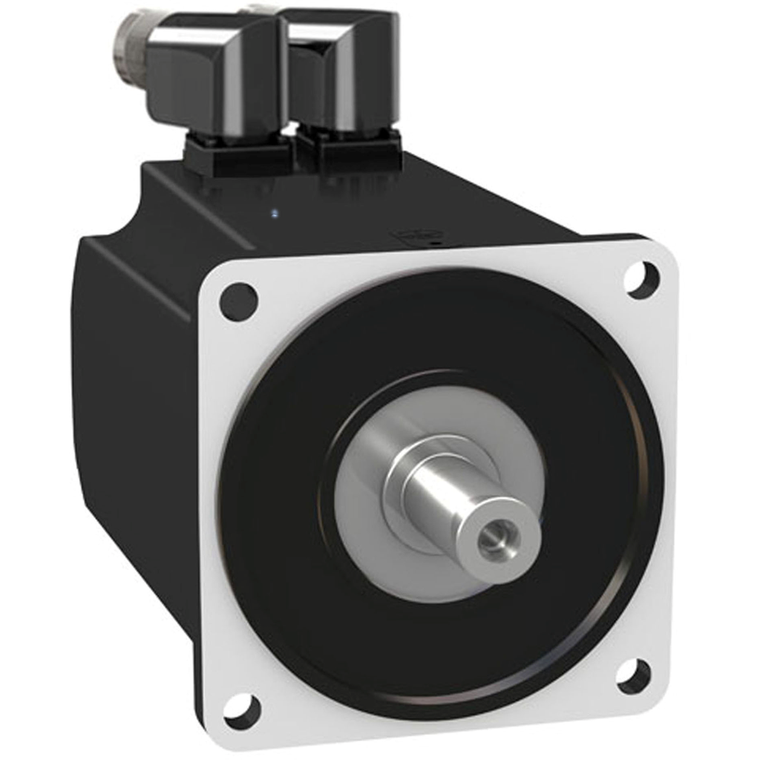

Schneider Electric BMH1401P01A2A Motor 140Mm Iec 10,3Nm Ip54 2640W No

Schneider Electric BMH1401P01A2A Motor 140Mm Iec 10,3Nm Ip54 2640W No

Schneider Electric
SKU:
BMH1401P01A2A
|
UPC:
3.60649E+12
$1,719.23
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description
This product is part of the Lexium 32 range, an offer of servo motors from 0.15kW to 11kW. The 10-pole servo motor features maximum mechanical speed of 4000RPM and smooth shaft end without holding brake. It is an equipped with a single-turn SinCos Hiperface® feedback with 1,31,072 points/turn speed feedback resolution. It is a servo motor with a rated supply voltage of 480V, a continuous stall current of 8.58A and a continuous power of 2.85W. The shaft dimensions are 24mm (diameter) x 50mm (length). It is furnished with rotatable right angled connectors for electrical connection. It is an IP54 rated product. The length of this product is 152mm and the centering collar dimensions are 3.5mm (depth) x 130mm (diameter) with 165mm mounting hole. It weighs 8kg. This range is compatible with Lexium 32 servo drives. This product is compatible with LXM32.D30M2 at 230V single phase and LXM32.D30N4 at 400V to 480V three phase. It supports 140mm international standard flange mount with a natural convection cooling system. Lexium 32 is a servo drive range provides drive and motor combination that has exactly the right power, performance and functionality. The Lexium 32 range of servo drives includes four servo drive models with power ratings from 0.15kW to 11kW and the servo motor ranges BMH and BSH series.
Additional Information
Pvc Free:
Yes
Product Or Component Type:
servo motor
Maximum Mechanical Speed:
4000 rpm
China Rohs Regulation:
X
Range Compatibility:
Lexium 32
Length:
152 mm
Ip Degree Of Protection:
IP54 standard
Torque Constant:
1.2 N.m/A 120 °C
Back Emf Constant:
77.4 V/krpm 120 °C
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Stator Resistance:
0.69 Ohm 20 °C
Rotor Inertia:
16.46 kg.cm²
Motor Flange Size:
140 mm
Centring Collar Diameter:
130 mm
Stator Electrical Time Constant:
9.7 ms 20 °C
Product Compatibility:
LXM32.D30M2 230 V single phase || LXM32.D30N4 400...480 V three phase
Stator Inductance:
6.7 mH 20 °C
Number Of Motor Poles:
10
Mercury Free:
Yes
Second Shaft:
without second shaft end
Feedback Type:
single turn SinCos Hiperface
Maximum Permanent Current:
29.8 A
Phase:
three phase
Maximum Radial Force Fr:
1930 N 1000 rpm || 1530 N 2000 rpm || 1340 N 3000 rpm
Maximum Axial Force Fa:
0.2 x Fr
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Net Weight:
8 kg
Number Of Motor Stacks:
1
Nominal Torque:
6.9 N.m LXM32.D30M2 10 A, 230 V, single phase || 7.7 N.m LXM32.D30N4 10 A, 400 V, three phase || 7.7 N.m LXM32.D30N4 10 A, 480 V, three phase
Rohs Exemption Information:
Yes
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Speed Feedback Resolution:
131072 points/turn
Centring Collar Depth:
3.5 mm
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Sustainable Offer Status:
Green Premium product
[Us] Rated Supply Voltage:
480 V
Device Short Name:
BMH
Continuous Power:
2.85 W
Nominal Output Power:
1450 W LXM32.D30M2 10 A, 230 V, single phase || 2400 W LXM32.D30N4 10 A, 400 V, three phase || 2400 W LXM32.D30N4 10 A, 480 V, three phase
Peak Stall Torque:
30.8 N.m LXM32.D30M2 10 A, 230 V, single phase || 30.8 N.m LXM32.D30N4 10 A, 400 V, three phase || 30.8 N.m LXM32.D30N4 10 A, 480 V, three phase
Shaft Diameter:
24 mm
Shaft Length:
50 mm
Environmental Disclosure:
ENVPEP111002EN
Circularity Profile:
N/A
Warranty:
18 months
Number Of Mounting Holes:
4
Continuous Stall Torque:
10.3 N.m LXM32.D30M2 10 A, 230 V, single phase || 10.3 N.m LXM32.D30N4 10 A, 400 V, three phase || 10.3 N.m LXM32.D30N4 10 A, 480 V, three phase
Maximum Current Irms:
29.8 A LXM32.D30M2 || 29.8 A LXM32.D30N4
Nominal Speed:
2000 rpm LXM32.D30M2 10 A, 230 V, single phase || 3000 rpm LXM32.D30N4 10 A, 400 V, three phase || 3000 rpm LXM32.D30N4 10 A, 480 V, three phase
Holding Brake:
without
Continuous Stall Current:
8.58 A
Type Of Cooling:
natural convection
Electrical Connection:
rotatable right-angled connectors
Shaft End:
smooth shaft
Mounting Support:
international standard flange
Mounting Holes Diameter:
11 mm
Circle Diameter Of The Mounting Holes:
165 mm
Datasheet:
View
