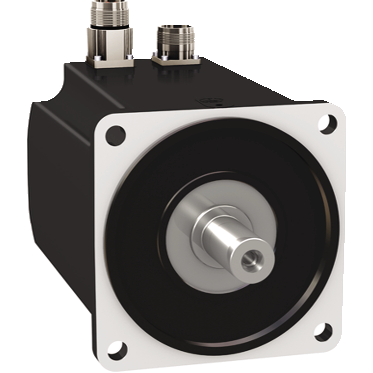

Schneider Electric BMH1401P11F1A Motor 140Mm Iec 10,3Nm Ip54 2640W Key
SKU:
BMH1401P11F1A
UPC:
3.60649E+12
MPN:
Condition:
New
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Product Or Component Type:
servo motor
Product Compatibility:
LXM32.D30M2 230 V single phase || LXM32.D30N4 400...480 V three phase
Stator Inductance:
6.7 mH 20 °C
Number Of Mounting Holes:
4
Net Weight:
10.3 kg
Nominal Speed:
2000 rpm LXM32.D30M2 10 A, 230 V, single phase || 3000 rpm LXM32.D30N4 10 A, 400 V, three phase || 3000 rpm LXM32.D30N4 10 A, 480 V, three phase
Rotor Inertia:
17.96 kg.cm²
Continuous Power:
2.85 W
Number Of Motor Poles:
10
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Range Compatibility:
Lexium 32
Centring Collar Depth:
3.5 mm
Type Of Cooling:
natural convection
Number Of Motor Stacks:
1
Sustainable Offer Status:
Green Premium product
Environmental Disclosure:
ENVPEP111002EN
Warranty:
18 months
Continuous Stall Torque:
10.3 N.m LXM32.D30M2 10 A, 230 V, single phase || 10.3 N.m LXM32.D30N4 10 A, 400 V, three phase || 10.3 N.m LXM32.D30N4 10 A, 480 V, three phase
Feedback Type:
single turn SinCos Hiperface
Shaft Length:
50 mm
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Centring Collar Diameter:
130 mm
Circle Diameter Of The Mounting Holes:
165 mm
Back Emf Constant:
77.4 V/krpm 120 °C
Pvc Free:
Yes
Holding Brake:
with
Speed Feedback Resolution:
131072 points/turn
China Rohs Regulation:
X
Phase:
three phase
Maximum Axial Force Fa:
0.2 x Fr
Rohs Exemption Information:
Yes
Nominal Output Power:
1450 W LXM32.D30M2 10 A, 230 V, single phase || 2400 W LXM32.D30N4 10 A, 400 V, three phase || 2400 W LXM32.D30N4 10 A, 480 V, three phase
Device Short Name:
BMH
Stator Electrical Time Constant:
9.7 ms 20 °C
Shaft Diameter:
24 mm
Maximum Radial Force Fr:
1930 N 1000 rpm || 1530 N 2000 rpm || 1340 N 3000 rpm
[Us] Rated Supply Voltage:
480 V
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Second Shaft:
without second shaft end
Ip Degree Of Protection:
IP54 standard
Mercury Free:
Yes
Brake Pull-In Power:
18 W
Stator Resistance:
0.69 Ohm 20 °C
Maximum Current Irms:
29.8 A LXM32.D30M2 || 29.8 A LXM32.D30N4
Length:
187 mm
Motor Flange Size:
140 mm
Circularity Profile:
N/A
Holding Torque:
18 N.m holding brake
Key Width:
40 mm
Nominal Torque:
6.9 N.m LXM32.D30M2 10 A, 230 V, single phase || 7.7 N.m LXM32.D30N4 10 A, 400 V, three phase || 7.7 N.m LXM32.D30N4 10 A, 480 V, three phase
Shaft End:
keyed
Maximum Permanent Current:
29.8 A
Maximum Mechanical Speed:
4000 rpm
Mounting Support:
international standard flange
Continuous Stall Current:
8.58 A
Torque Constant:
1.2 N.m/A 120 °C
Mounting Holes Diameter:
11 mm
Electrical Connection:
straight connectors
Peak Stall Torque:
30.8 N.m LXM32.D30M2 10 A, 230 V, single phase || 30.8 N.m LXM32.D30N4 10 A, 400 V, three phase || 30.8 N.m LXM32.D30N4 10 A, 480 V, three phase
This product is part of the Lexium 32 range, an offer of servo motors from 0.15kW to 11kW. The 10-pole servo motor features maximum mechanical speed of 4000RPM and keyed shaft end without holding...
This product is part of the Lexium 32 range, an offer of motion servo drives for machines from 0.15kW to 7kW. The 10-pole servo motor features a medium moment of inertia with maximum mechanical speed...
