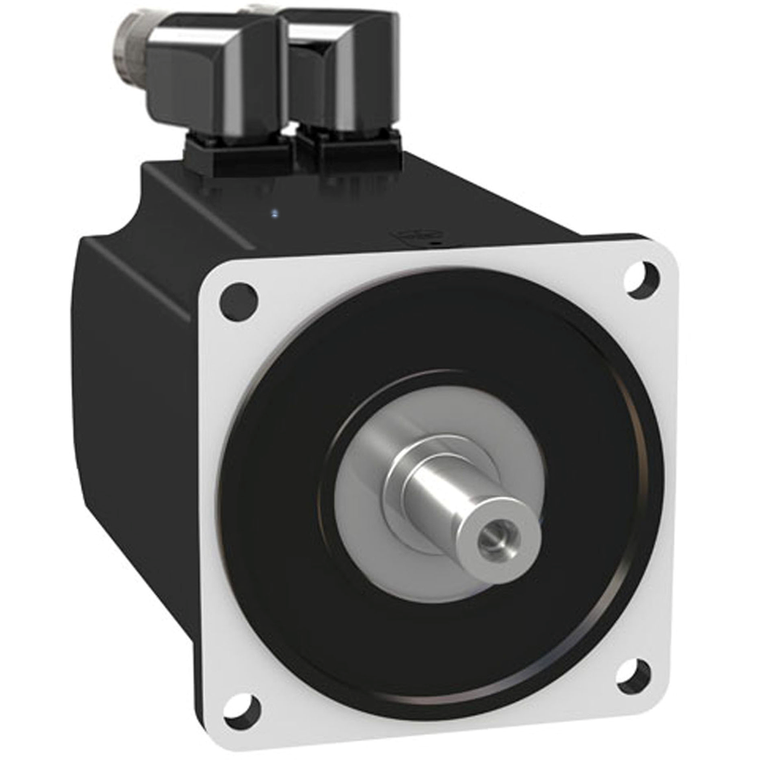

Schneider Electric BMH1401P21A2A Motor 140Mm Iec 10,3Nm Ip65/67 2640W No

(No reviews yet) Write a Review

Write a Review

Schneider Electric

Schneider Electric BMH1401P21A2A Motor 140Mm Iec 10,3Nm Ip65/67 2640W No

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

BMH1401P21A2A

UPC:

3606485201221

MPN:

Condition:

New

Centring Collar Depth:

3.5 mm

Warranty:

18 months

Peak Stall Torque:

30.8 N.m LXM32.D30M2 10 A, 230 V, single phase || 30.8 N.m LXM32.D30N4 10 A, 400 V, three phase || 30.8 N.m LXM32.D30N4 10 A, 480 V, three phase

Maximum Axial Force Fa:

0.2 x Fr

Type Of Cooling:

natural convection

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Stator Resistance:

0.69 Ohm 20 °C

Maximum Current Irms:

29.8 A LXM32.D30M2 || 29.8 A LXM32.D30N4

Environmental Disclosure:

ENVPEP111002EN

Number Of Motor Poles:

10

Motor Flange Size:

140 mm

Rotor Inertia:

16.46 kg.cm²

Shaft Diameter:

24 mm

Number Of Mounting Holes:

4

Ip Degree Of Protection:

IP65 standard || IP67 with IP67 kit

Maximum Mechanical Speed:

4000 rpm

Electrical Connection:

rotatable right-angled connectors

Nominal Output Power:

1450 W LXM32.D30M2 10 A, 230 V, single phase || 2400 W LXM32.D30N4 10 A, 400 V, three phase || 2400 W LXM32.D30N4 10 A, 480 V, three phase

Maximum Permanent Current:

29.8 A

Product Compatibility:

LXM32.D30M2 230 V single phase || LXM32.D30N4 400...480 V three phase

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Back Emf Constant:

77.4 V/krpm 120 °C

Maximum Radial Force Fr:

1930 N 1000 rpm || 1530 N 2000 rpm || 1340 N 3000 rpm

Circularity Profile:

N/A

Torque Constant:

1.2 N.m/A 120 °C

Speed Feedback Resolution:

131072 points/turn

Second Shaft:

without second shaft end

Sustainable Offer Status:

Green Premium product

Nominal Speed:

2000 rpm LXM32.D30M2 10 A, 230 V, single phase || 3000 rpm LXM32.D30N4 10 A, 400 V, three phase || 3000 rpm LXM32.D30N4 10 A, 480 V, three phase

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Holding Brake:

without

Centring Collar Diameter:

130 mm

Rohs Exemption Information:

Yes

Stator Inductance:

6.7 mH 20 °C

Continuous Stall Current:

8.58 A

Shaft Length:

50 mm

China Rohs Regulation:

X

Phase:

three phase

Feedback Type:

single turn SinCos Hiperface

Length:

152 mm

Net Weight:

8 kg

Range Compatibility:

Lexium 32

[Us] Rated Supply Voltage:

480 V

Device Short Name:

BMH

Continuous Stall Torque:

10.3 N.m LXM32.D30M2 10 A, 230 V, single phase || 10.3 N.m LXM32.D30N4 10 A, 400 V, three phase || 10.3 N.m LXM32.D30N4 10 A, 480 V, three phase

Continuous Power:

2.85 W

Pvc Free:

Yes

Mercury Free:

Yes

Product Or Component Type:

servo motor

Mounting Holes Diameter:

11 mm

Circle Diameter Of The Mounting Holes:

165 mm

Stator Electrical Time Constant:

9.7 ms 20 °C

Nominal Torque:

6.9 N.m LXM32.D30M2 10 A, 230 V, single phase || 7.7 N.m LXM32.D30N4 10 A, 400 V, three phase || 7.7 N.m LXM32.D30N4 10 A, 480 V, three phase

Number Of Motor Stacks:

1

Shaft End:

smooth shaft

Mounting Support:

international standard flange

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Datasheet:

View
