Schneider Electric

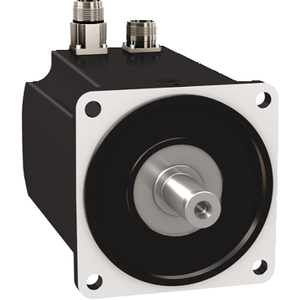

Schneider Electric BMH1401P37A2A Motor 140Mm Iec 10,3Nm Ip65/67 2640W

SKU:

BMH1401P37A2A

UPC:

3606485198668

MPN:

Condition:

New

Number Of Motor Poles:

10

Maximum Axial Force Fa:

0.2 x Fr

Stator Electrical Time Constant:

9.7 ms 20 °C

Maximum Permanent Current:

29.8 A

Key Width:

40 mm

Mercury Free:

Yes

China Rohs Regulation:

X

Rotor Inertia:

16.46 kg.cm²

Holding Brake:

without

Nominal Speed:

2000 rpm LXM32.D30M2 10 A, 230 V, single phase || 3000 rpm LXM32.D30N4 10 A, 400 V, three phase || 3000 rpm LXM32.D30N4 10 A, 480 V, three phase

Type Of Cooling:

natural convection

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Sustainable Offer Status:

Green Premium product

Product Or Component Type:

servo motor

Product Compatibility:

LXM32.D30M2 230 V single phase || LXM32.D30N4 400...480 V three phase

Second Shaft:

without second shaft end

Rohs Exemption Information:

Yes

Range Compatibility:

Lexium 32

Continuous Power:

2.85 W

Phase:

three phase

Centring Collar Diameter:

130 mm

Maximum Current Irms:

29.8 A LXM32.D30M2 || 29.8 A LXM32.D30N4

Peak Stall Torque:

30.8 N.m LXM32.D30M2 10 A, 230 V, single phase || 30.8 N.m LXM32.D30N4 10 A, 400 V, three phase || 30.8 N.m LXM32.D30N4 10 A, 480 V, three phase

Maximum Radial Force Fr:

1930 N 1000 rpm || 1530 N 2000 rpm || 1340 N 3000 rpm

Device Short Name:

BMH

Electrical Connection:

rotatable right-angled connectors

Shaft End:

keyed

Speed Feedback Resolution:

32768 points/turn x 4096 turns

Torque Constant:

1.2 N.m/A 120 °C

Net Weight:

8 kg

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Length:

152 mm

Maximum Mechanical Speed:

4000 rpm

Continuous Stall Current:

8.58 A

Mounting Holes Diameter:

11 mm

Nominal Torque:

6.9 N.m LXM32.D30M2 10 A, 230 V, single phase || 7.7 N.m LXM32.D30N4 10 A, 400 V, three phase || 7.7 N.m LXM32.D30N4 10 A, 480 V, three phase

Centring Collar Depth:

3.5 mm

Pvc Free:

Yes

Number Of Motor Stacks:

1

Number Of Mounting Holes:

4

Circularity Profile:

N/A

Stator Resistance:

0.69 Ohm 20 °C

Shaft Diameter:

24 mm

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Stator Inductance:

6.7 mH 20 °C

Circle Diameter Of The Mounting Holes:

165 mm

[Us] Rated Supply Voltage:

480 V

Feedback Type:

multiturn SinCos Hiperface

Shaft Length:

50 mm

Continuous Stall Torque:

10.3 N.m LXM32.D30M2 10 A, 230 V, single phase || 10.3 N.m LXM32.D30N4 10 A, 400 V, three phase || 10.3 N.m LXM32.D30N4 10 A, 480 V, three phase

Mounting Support:

international standard flange

Ip Degree Of Protection:

IP65 standard || IP67 with IP67 kit

Nominal Output Power:

1450 W LXM32.D30M2 10 A, 230 V, single phase || 2400 W LXM32.D30N4 10 A, 400 V, three phase || 2400 W LXM32.D30N4 10 A, 480 V, three phase

Warranty:

18 months

Back Emf Constant:

77.4 V/krpm 120 °C

Environmental Disclosure:

ENVPEP111002EN

Motor Flange Size:

140 mm

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Datasheet:

View
