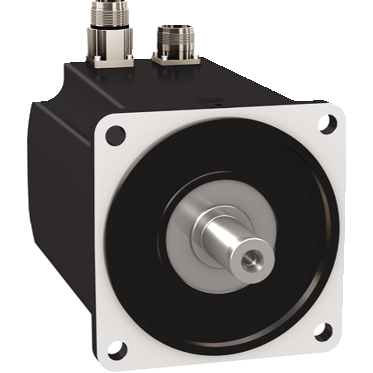

Schneider Electric BMH1402P06A1A Motor 140Mm Iec 18,5Nm Ip54 3900W No
SKU:
BMH1402P06A1A
UPC:
3606485207674
MPN:
Condition:
New
Mercury Free:
Yes
Stator Resistance:
0.23 Ohm 20 °C
Continuous Stall Current:
16.83 A
Device Short Name:
BMH
Nominal Torque:
12.2 N.m LXM32.D72N4 24 A, 400 V, three phase || 12.2 N.m LXM32.D72N4 24 A, 480 V, three phase
Shaft Length:
50 mm
Mounting Support:
international standard flange
Warranty:
18 months
Shaft End:
smooth shaft
Circularity Profile:
N/A
Maximum Current Irms:
57.4 A LXM32.D72N4
Nominal Speed:
3000 rpm LXM32.D72N4 24 A, 400 V, three phase || 3000 rpm LXM32.D72N4 24 A, 480 V, three phase
Centring Collar Diameter:
130 mm
Rotor Inertia:
32 kg.cm²
Shaft Diameter:
24 mm
Peak Stall Torque:
50.3 N.m LXM32.D72N4 24 A, 400 V, three phase || 50.3 N.m LXM32.D72N4 24 A, 480 V, three phase
Continuous Power:
4.44 W
Stator Electrical Time Constant:
13 ms 20 °C
Feedback Type:
single turn SinCos Hiperface
Ip Degree Of Protection:
IP54 standard
Number Of Motor Poles:
10
Pvc Free:
Yes
Stator Inductance:
3 mH 20 °C
Product Compatibility:
LXM32.D72N4 400...480 V three phase
Range Compatibility:
Lexium 32
Number Of Mounting Holes:
4
Holding Brake:
without
Mounting Holes Diameter:
11 mm
Phase:
three phase
Sustainable Offer Status:
Green Premium product
Net Weight:
12 kg
Rohs Exemption Information:
Yes
Continuous Stall Torque:
18.5 N.m LXM32.D72N4 24 A, 400 V, three phase || 18.5 N.m LXM32.D72N4 24 A, 480 V, three phase
Electrical Connection:
straight connectors
Length:
192 mm
China Rohs Regulation:
X
Torque Constant:
1.1 N.m/A 120 °C
Environmental Disclosure:
ENVPEP111002EN
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Motor Flange Size:
140 mm
Maximum Radial Force Fr:
2240 N 1000 rpm || 1780 N 2000 rpm || 1550 N 3000 rpm
Centring Collar Depth:
3.5 mm
Back Emf Constant:
70.7 V/krpm 120 °C
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
[Us] Rated Supply Voltage:
480 V
Maximum Permanent Current:
57.4 A
Second Shaft:
without second shaft end
Circle Diameter Of The Mounting Holes:
165 mm
Maximum Axial Force Fa:
0.2 x Fr
Nominal Output Power:
3500 W LXM32.D72N4 24 A, 400 V, three phase || 3500 W LXM32.D72N4 24 A, 480 V, three phase
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
