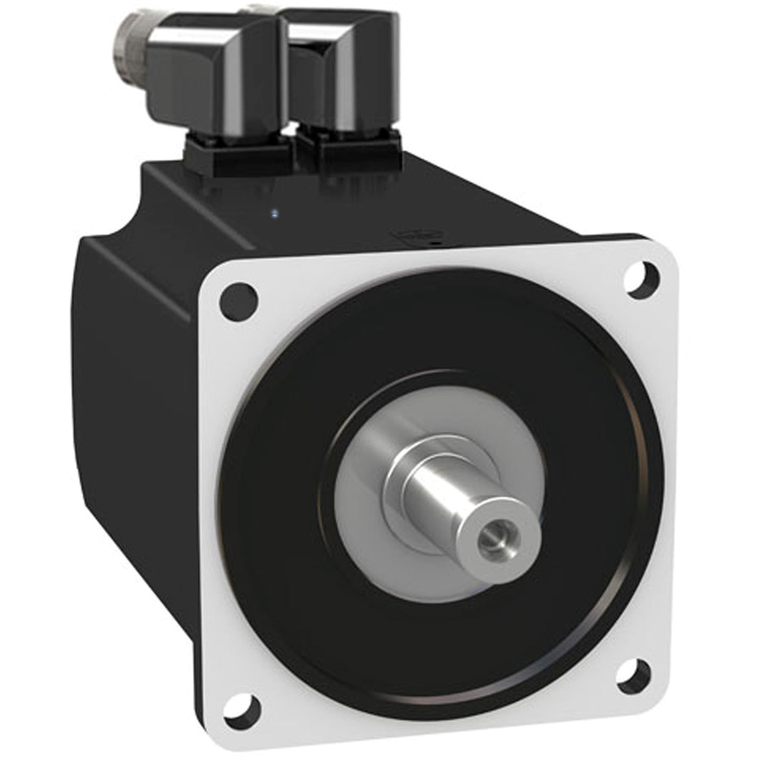

Schneider Electric BMH1402P12A2A Motor 140Mm Iec 18,5Nm Ip54 3900W Key

(No reviews yet) Write a Review

Write a Review

Schneider Electric BMH1402P12A2A Motor 140Mm Iec 18,5Nm Ip54 3900W Key

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

BMH1402P12A2A

UPC:

3606485207605

MPN:

Condition:

New

Feedback Type:

multiturn SinCos Hiperface

Phase:

three phase

Shaft Diameter:

24 mm

[Us] Rated Supply Voltage:

480 V

Mounting Holes Diameter:

11 mm

Product Or Component Type:

servo motor

Maximum Current Irms:

57.4 A LXM32.D72N4

Holding Brake:

without

Number Of Mounting Holes:

4

Maximum Axial Force Fa:

0.2 x Fr

Rotor Inertia:

32 kg.cm²

Product Compatibility:

LXM32.D72N4 400...480 V three phase

Device Short Name:

BMH

Second Shaft:

without second shaft end

Back Emf Constant:

70.7 V/krpm 120 °C

Peak Stall Torque:

50.3 N.m LXM32.D72N4 24 A, 400 V, three phase || 50.3 N.m LXM32.D72N4 24 A, 480 V, three phase

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Rohs Exemption Information:

Yes

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Centring Collar Depth:

3.5 mm

Warranty:

18 months

Continuous Power:

4.44 W

Continuous Stall Current:

16.83 A

Stator Resistance:

0.23 Ohm 20 °C

Pvc Free:

Yes

Stator Electrical Time Constant:

13 ms 20 °C

Electrical Connection:

rotatable right-angled connectors

Circle Diameter Of The Mounting Holes:

165 mm

Nominal Torque:

12.2 N.m LXM32.D72N4 24 A, 400 V, three phase || 12.2 N.m LXM32.D72N4 24 A, 480 V, three phase

Type Of Cooling:

natural convection

Maximum Permanent Current:

57.4 A

Torque Constant:

1.1 N.m/A 120 °C

Net Weight:

12 kg

Number Of Motor Stacks:

2

Stator Inductance:

3 mH 20 °C

Maximum Mechanical Speed:

4000 rpm

Environmental Disclosure:

ENVPEP111002EN

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Range Compatibility:

Lexium 32

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Maximum Radial Force Fr:

2240 N 1000 rpm || 1780 N 2000 rpm || 1550 N 3000 rpm

Mounting Support:

international standard flange

Nominal Speed:

3000 rpm LXM32.D72N4 24 A, 400 V, three phase || 3000 rpm LXM32.D72N4 24 A, 480 V, three phase

Motor Flange Size:

140 mm

Nominal Output Power:

3500 W LXM32.D72N4 24 A, 400 V, three phase || 3500 W LXM32.D72N4 24 A, 480 V, three phase

Mercury Free:

Yes

Shaft Length:

50 mm

Speed Feedback Resolution:

131072 points/turn x 4096 turns

China Rohs Regulation:

X

Key Width:

40 mm

Shaft End:

keyed

Number Of Motor Poles:

10

Length:

192 mm

Ip Degree Of Protection:

IP54 standard

Circularity Profile:

N/A

Continuous Stall Torque:

18.5 N.m LXM32.D72N4 24 A, 400 V, three phase || 18.5 N.m LXM32.D72N4 24 A, 480 V, three phase

Sustainable Offer Status:

Green Premium product

Centring Collar Diameter:

130 mm

Datasheet:

View
