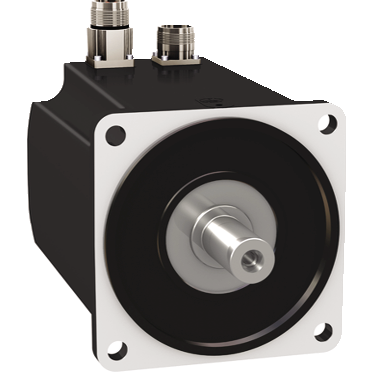

Schneider Electric BMH1402P16F1A Motor 140Mm Iec 18,5Nm Ip54 3900W Key

(No reviews yet) Write a Review

Write a Review

Schneider Electric BMH1402P16F1A Motor 140Mm Iec 18,5Nm Ip54 3900W Key

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

BMH1402P16F1A

UPC:

3606485207728

MPN:

Condition:

New

Maximum Permanent Current:

57.4 A

Environmental Disclosure:

ENVPEP111002EN

Electrical Connection:

straight connectors

Feedback Type:

single turn SinCos Hiperface

Number Of Motor Poles:

10

Back Emf Constant:

70.7 V/krpm 120 °C

Stator Resistance:

0.23 Ohm 20 °C

Stator Inductance:

3 mH 20 °C

Ip Degree Of Protection:

IP54 standard

Maximum Current Irms:

57.4 A LXM32.D72N4

Mercury Free:

Yes

[Us] Rated Supply Voltage:

480 V

Key Width:

40 mm

China Rohs Regulation:

X

Mounting Support:

international standard flange

Type Of Cooling:

natural convection

Centring Collar Diameter:

130 mm

Length:

227 mm

Continuous Stall Current:

16.83 A

Range Compatibility:

Lexium 32

Shaft End:

keyed

Maximum Axial Force Fa:

0.2 x Fr

Torque Constant:

1.1 N.m/A 120 °C

Shaft Diameter:

24 mm

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Stator Electrical Time Constant:

13 ms 20 °C

Pvc Free:

Yes

Holding Torque:

18 N.m holding brake

Number Of Mounting Holes:

4

Circle Diameter Of The Mounting Holes:

165 mm

Second Shaft:

without second shaft end

Device Short Name:

BMH

Product Or Component Type:

servo motor

Peak Stall Torque:

50.3 N.m LXM32.D72N4 24 A, 400 V, three phase || 50.3 N.m LXM32.D72N4 24 A, 480 V, three phase

Rohs Exemption Information:

Yes

Maximum Radial Force Fr:

2240 N 1000 rpm || 1780 N 2000 rpm || 1550 N 3000 rpm

Sustainable Offer Status:

Green Premium product

Net Weight:

14.3 kg

Nominal Torque:

12.2 N.m LXM32.D72N4 24 A, 400 V, three phase || 12.2 N.m LXM32.D72N4 24 A, 480 V, three phase

Motor Flange Size:

140 mm

Product Compatibility:

LXM32.D72N4 400...480 V three phase

Continuous Stall Torque:

18.5 N.m LXM32.D72N4 24 A, 400 V, three phase || 18.5 N.m LXM32.D72N4 24 A, 480 V, three phase

Number Of Motor Stacks:

2

Continuous Power:

4.44 W

Mounting Holes Diameter:

11 mm

Centring Collar Depth:

3.5 mm

Nominal Output Power:

3500 W LXM32.D72N4 24 A, 400 V, three phase || 3500 W LXM32.D72N4 24 A, 480 V, three phase

Rotor Inertia:

33.5 kg.cm²

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Speed Feedback Resolution:

32768 points/turn

Shaft Length:

50 mm

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Circularity Profile:

N/A

Holding Brake:

with

Phase:

three phase

Nominal Speed:

3000 rpm LXM32.D72N4 24 A, 400 V, three phase || 3000 rpm LXM32.D72N4 24 A, 480 V, three phase

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Maximum Mechanical Speed:

4000 rpm

Warranty:

18 months

Brake Pull-In Power:

18 W

Datasheet:

View
