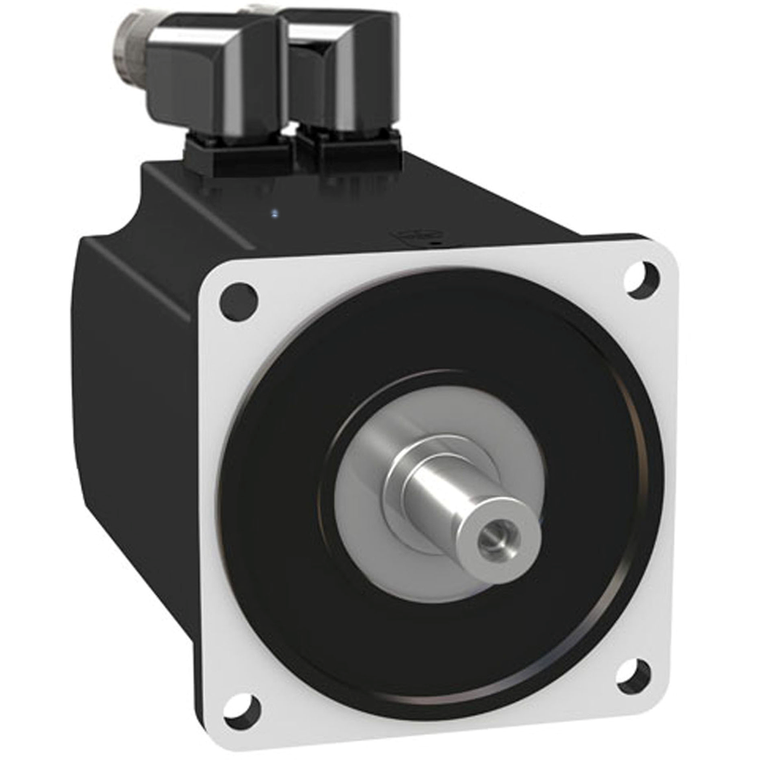

Schneider Electric BMH1402P17A2A Motor 140Mm Iec 18,5Nm Ip54 3900W Key

(No reviews yet) Write a Review

Write a Review

Schneider Electric

Schneider Electric BMH1402P17A2A Motor 140Mm Iec 18,5Nm Ip54 3900W Key

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

BMH1402P17A2A

UPC:

3.60649E+12

MPN:

Condition:

New

Ip Degree Of Protection:

IP54 standard

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Speed Feedback Resolution:

32768 points/turn x 4096 turns

Product Compatibility:

LXM32.D72N4 400...480 V three phase

Mounting Holes Diameter:

11 mm

Centring Collar Diameter:

130 mm

Type Of Cooling:

natural convection

Rohs Exemption Information:

Yes

Number Of Motor Stacks:

2

Nominal Speed:

3000 rpm LXM32.D72N4 24 A, 400 V, three phase || 3000 rpm LXM32.D72N4 24 A, 480 V, three phase

Continuous Power:

4.44 W

Number Of Mounting Holes:

4

Shaft End:

keyed

Circle Diameter Of The Mounting Holes:

165 mm

Maximum Axial Force Fa:

0.2 x Fr

Centring Collar Depth:

3.5 mm

Device Short Name:

BMH

Back Emf Constant:

70.7 V/krpm 120 °C

Key Width:

40 mm

Second Shaft:

without second shaft end

Sustainable Offer Status:

Green Premium product

Maximum Mechanical Speed:

4000 rpm

[Us] Rated Supply Voltage:

480 V

Maximum Radial Force Fr:

2240 N 1000 rpm || 1780 N 2000 rpm || 1550 N 3000 rpm

Pvc Free:

Yes

Nominal Output Power:

3500 W LXM32.D72N4 24 A, 400 V, three phase || 3500 W LXM32.D72N4 24 A, 480 V, three phase

Continuous Stall Torque:

18.5 N.m LXM32.D72N4 24 A, 400 V, three phase || 18.5 N.m LXM32.D72N4 24 A, 480 V, three phase

China Rohs Regulation:

X

Shaft Length:

50 mm

Number Of Motor Poles:

10

Phase:

three phase

Length:

192 mm

Mounting Support:

international standard flange

Environmental Disclosure:

ENVPEP111002EN

Range Compatibility:

Lexium 32

Nominal Torque:

12.2 N.m LXM32.D72N4 24 A, 400 V, three phase || 12.2 N.m LXM32.D72N4 24 A, 480 V, three phase

Rotor Inertia:

32 kg.cm²

Net Weight:

12 kg

Shaft Diameter:

24 mm

Maximum Permanent Current:

57.4 A

Electrical Connection:

rotatable right-angled connectors

Peak Stall Torque:

50.3 N.m LXM32.D72N4 24 A, 400 V, three phase || 50.3 N.m LXM32.D72N4 24 A, 480 V, three phase

Warranty:

18 months

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Continuous Stall Current:

16.83 A

Torque Constant:

1.1 N.m/A 120 °C

Mercury Free:

Yes

Stator Electrical Time Constant:

13 ms 20 °C

Feedback Type:

multiturn SinCos Hiperface

Maximum Current Irms:

57.4 A LXM32.D72N4

Motor Flange Size:

140 mm

Product Or Component Type:

servo motor

Stator Inductance:

3 mH 20 °C

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Holding Brake:

without

Stator Resistance:

0.23 Ohm 20 °C

Circularity Profile:

N/A

Datasheet:

View
