Schneider Electric

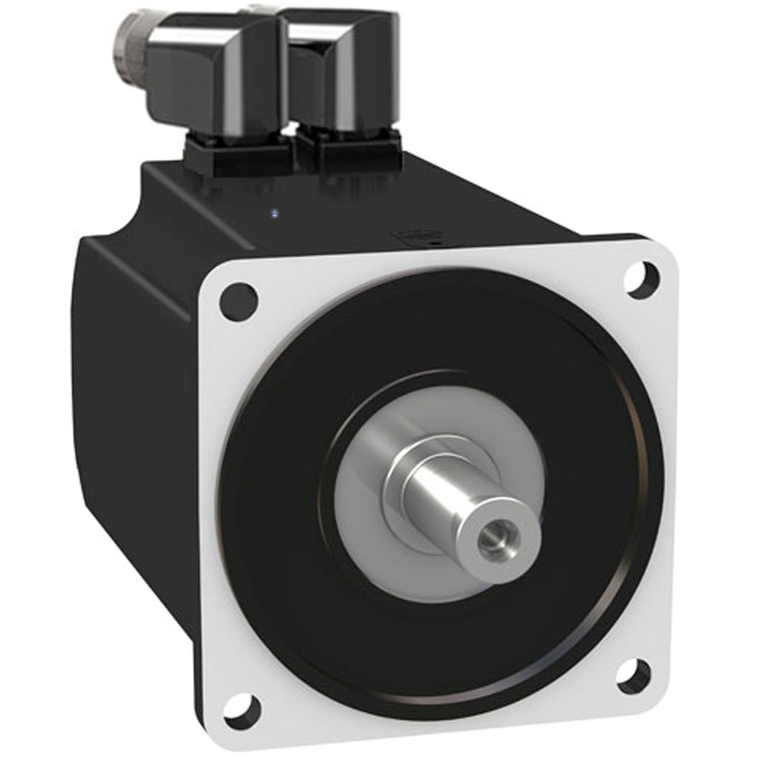

Schneider Electric BMH1402P22F2A Motor 140Mm Iec 18,5Nm Ip65/67 3900W No

SKU:

BMH1402P22F2A

UPC:

3.60649E+12

MPN:

Condition:

New

Maximum Radial Force Fr:

2240 N 1000 rpm || 1780 N 2000 rpm || 1550 N 3000 rpm

Speed Feedback Resolution:

131072 points/turn x 4096 turns

Centring Collar Diameter:

130 mm

Ip Degree Of Protection:

IP65 standard || IP67 with IP67 kit

Product Compatibility:

LXM32.D72N4 400...480 V three phase

Brake Pull-In Power:

18 W

Number Of Motor Poles:

10

Circle Diameter Of The Mounting Holes:

165 mm

Peak Stall Torque:

50.3 N.m LXM32.D72N4 24 A, 400 V, three phase || 50.3 N.m LXM32.D72N4 24 A, 480 V, three phase

Pvc Free:

Yes

Maximum Current Irms:

57.4 A LXM32.D72N4

Rotor Inertia:

33.5 kg.cm²

[Us] Rated Supply Voltage:

480 V

Holding Brake:

with

Shaft Length:

50 mm

China Rohs Regulation:

X

Continuous Power:

4.44 W

Holding Torque:

18 N.m holding brake

Device Short Name:

BMH

Warranty:

18 months

Back Emf Constant:

70.7 V/krpm 120 °C

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Stator Electrical Time Constant:

13 ms 20 °C

Sustainable Offer Status:

Green Premium product

Motor Flange Size:

140 mm

Length:

227 mm

Second Shaft:

without second shaft end

Nominal Torque:

12.2 N.m LXM32.D72N4 24 A, 400 V, three phase || 12.2 N.m LXM32.D72N4 24 A, 480 V, three phase

Mercury Free:

Yes

Stator Inductance:

3 mH 20 °C

Number Of Motor Stacks:

2

Type Of Cooling:

natural convection

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Maximum Permanent Current:

57.4 A

Feedback Type:

multiturn SinCos Hiperface

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Rohs Exemption Information:

Yes

Maximum Axial Force Fa:

0.2 x Fr

Range Compatibility:

Lexium 32

Product Or Component Type:

servo motor

Mounting Support:

international standard flange

Shaft Diameter:

24 mm

Shaft End:

smooth shaft

Centring Collar Depth:

3.5 mm

Nominal Speed:

3000 rpm LXM32.D72N4 24 A, 400 V, three phase || 3000 rpm LXM32.D72N4 24 A, 480 V, three phase

Continuous Stall Torque:

18.5 N.m LXM32.D72N4 24 A, 400 V, three phase || 18.5 N.m LXM32.D72N4 24 A, 480 V, three phase

Mounting Holes Diameter:

11 mm

Environmental Disclosure:

ENVPEP111002EN

Electrical Connection:

rotatable right-angled connectors

Torque Constant:

1.1 N.m/A 120 °C

Nominal Output Power:

3500 W LXM32.D72N4 24 A, 400 V, three phase || 3500 W LXM32.D72N4 24 A, 480 V, three phase

Maximum Mechanical Speed:

4000 rpm

Stator Resistance:

0.23 Ohm 20 °C

Number Of Mounting Holes:

4

Phase:

three phase

Continuous Stall Current:

16.83 A

Circularity Profile:

N/A

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Net Weight:

14.3 kg
