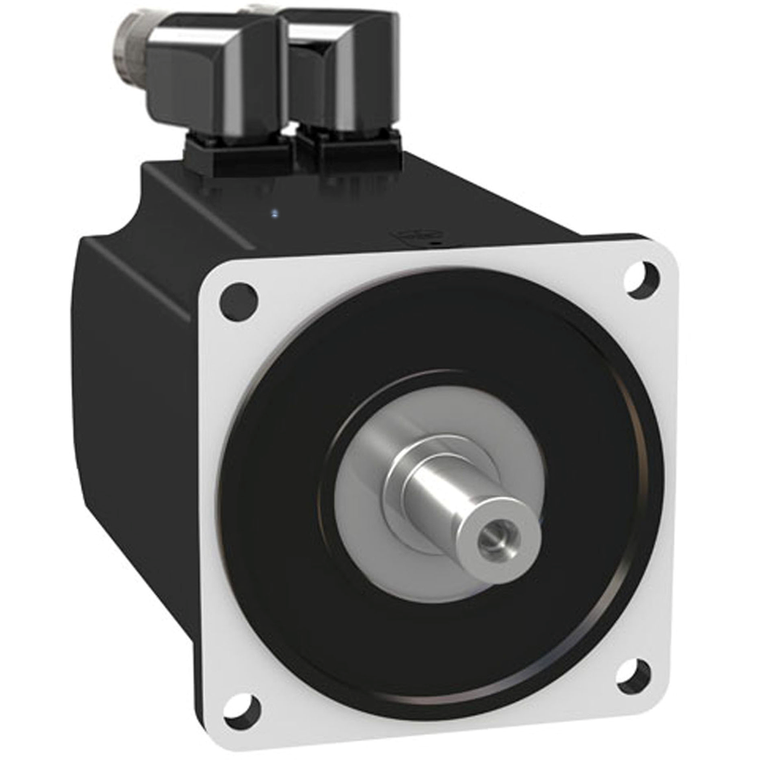

Schneider Electric BMH1403P02A2A Motor 140Mm Iec 25Nm Ip54 4700W No Key
SKU:
BMH1403P02A2A
UPC:
3606485208060
MPN:
Condition:
New
Continuous Stall Current:
18 A
Stator Inductance:
3 mH 20 °C
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Centring Collar Diameter:
130 mm
Circularity Profile:
N/A
Shaft End:
smooth shaft
Nominal Output Power:
4700 W LXM32.D72N4 24 A, 400 V, three phase || 4700 W LXM32.D72N4 24 A, 480 V, three phase
Circle Diameter Of The Mounting Holes:
165 mm
Number Of Motor Stacks:
3
Maximum Axial Force Fa:
0.2 x Fr
Net Weight:
16 kg
Mounting Holes Diameter:
11 mm
Stator Resistance:
0.22 Ohm 20 °C
Continuous Power:
4.8 W
Ip Degree Of Protection:
IP54 standard
Torque Constant:
1.34 N.m/A 120 °C
Shaft Length:
50 mm
Environmental Disclosure:
ENVPEP111002EN
Peak Stall Torque:
71.8 N.m LXM32.D72N4 24 A, 400 V, three phase || 71.8 N.m LXM32.D72N4 24 A, 480 V, three phase
Maximum Current Irms:
62.3 A LXM32.D72N4
Phase:
three phase
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Mounting Support:
international standard flange
Sustainable Offer Status:
Green Premium product
Warranty:
18 months
Holding Brake:
without
Maximum Permanent Current:
62.3 A
Speed Feedback Resolution:
131072 points/turn x 4096 turns
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
[Us] Rated Supply Voltage:
480 V
Nominal Speed:
3000 rpm LXM32.D72N4 24 A, 400 V, three phase || 3000 rpm LXM32.D72N4 24 A, 480 V, three phase
Type Of Cooling:
natural convection
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Device Short Name:
BMH
Second Shaft:
without second shaft end
Electrical Connection:
rotatable right-angled connectors
Feedback Type:
multiturn SinCos Hiperface
Continuous Stall Torque:
24 N.m LXM32.D72N4 24 A, 400 V, three phase || 24 N.m LXM32.D72N4 24 A, 480 V, three phase
Length:
232 mm
Maximum Radial Force Fr:
2420 N 1000 rpm || 1920 N 2000 rpm || 1680 N 3000 rpm
Maximum Mechanical Speed:
4000 rpm
Number Of Motor Poles:
10
Product Compatibility:
LXM32.D72N4 400...480 V three phase
Stator Electrical Time Constant:
13.6 ms 20 °C
Range Compatibility:
Lexium 32
Rotor Inertia:
47.5 kg.cm²
Centring Collar Depth:
3.5 mm
Motor Flange Size:
140 mm
Pvc Free:
Yes
Number Of Mounting Holes:
4
Nominal Torque:
13.92 N.m LXM32.D72N4 24 A, 400 V, three phase || 13.92 N.m LXM32.D72N4 24 A, 480 V, three phase
This product is part of the Lexium 32 range, an offer of servo motors from 0.15kW to 11kW. The 10-pole servo motor features maximum mechanical speed of 4000RPM and keyed shaft end with holding brake...
This product is part of the Lexium 32 range, an offer of motion servo drives for machines from 0.15kW to 7kW. The 10-pole servo motor features a medium moment of inertia with maximum mechanical speed...
