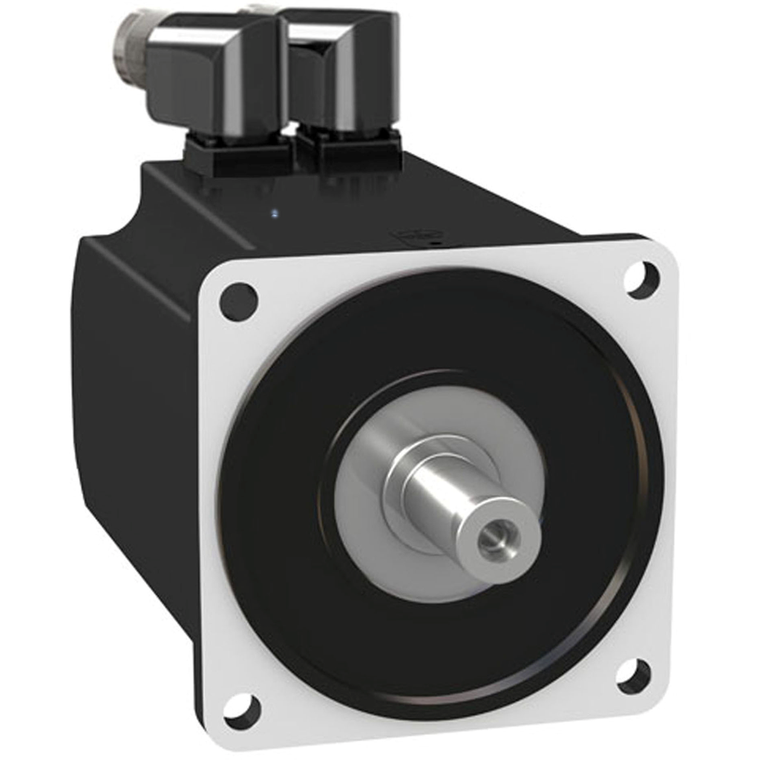

Schneider Electric BMH1403P02F2A Motor 140Mm Iec 25Nm Ip54 4700W No Key

(No reviews yet) Write a Review

Write a Review

Schneider Electric BMH1403P02F2A Motor 140Mm Iec 25Nm Ip54 4700W No Key

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

BMH1403P02F2A

UPC:

3606485208107

MPN:

Condition:

New

[Us] Rated Supply Voltage:

480 V

Stator Inductance:

3 mH 20 °C

Maximum Axial Force Fa:

0.2 x Fr

Product Or Component Type:

servo motor

Torque Constant:

1.34 N.m/A 120 °C

Phase:

three phase

Ip Degree Of Protection:

IP54 standard

Holding Torque:

23 N.m holding brake

Length:

267 mm

Circle Diameter Of The Mounting Holes:

165 mm

Rotor Inertia:

50.27 kg.cm²

Net Weight:

18.5 kg

Motor Flange Size:

140 mm

Electrical Connection:

rotatable right-angled connectors

Shaft End:

smooth shaft

Maximum Permanent Current:

62.3 A

Continuous Power:

4.8 W

Maximum Mechanical Speed:

4000 rpm

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Pvc Free:

Yes

Continuous Stall Torque:

24 N.m LXM32.D72N4 24 A, 400 V, three phase || 24 N.m LXM32.D72N4 24 A, 480 V, three phase

Nominal Output Power:

4700 W LXM32.D72N4 24 A, 400 V, three phase || 4700 W LXM32.D72N4 24 A, 480 V, three phase

Nominal Speed:

3000 rpm LXM32.D72N4 24 A, 400 V, three phase || 3000 rpm LXM32.D72N4 24 A, 480 V, three phase

Number Of Mounting Holes:

4

Speed Feedback Resolution:

131072 points/turn x 4096 turns

Device Short Name:

BMH

Stator Resistance:

0.22 Ohm 20 °C

Type Of Cooling:

natural convection

Brake Pull-In Power:

19 W

Mounting Holes Diameter:

11 mm

China Rohs Regulation:

X

Number Of Motor Stacks:

3

Rohs Exemption Information:

Yes

Continuous Stall Current:

18 A

Maximum Current Irms:

62.3 A LXM32.D72N4

Product Compatibility:

LXM32.D72N4 400...480 V three phase

Environmental Disclosure:

ENVPEP111002EN

Shaft Diameter:

24 mm

Maximum Radial Force Fr:

2420 N 1000 rpm || 1920 N 2000 rpm || 1680 N 3000 rpm

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Nominal Torque:

13.92 N.m LXM32.D72N4 24 A, 400 V, three phase || 13.92 N.m LXM32.D72N4 24 A, 480 V, three phase

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Range Compatibility:

Lexium 32

Warranty:

18 months

Circularity Profile:

N/A

Number Of Motor Poles:

10

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Holding Brake:

with

Sustainable Offer Status:

Green Premium product

Centring Collar Depth:

3.5 mm

Peak Stall Torque:

71.8 N.m LXM32.D72N4 24 A, 400 V, three phase || 71.8 N.m LXM32.D72N4 24 A, 480 V, three phase

Mercury Free:

Yes

Feedback Type:

multiturn SinCos Hiperface

Shaft Length:

50 mm

Back Emf Constant:

85.9 V/krpm 120 °C

Mounting Support:

international standard flange

Second Shaft:

without second shaft end

Stator Electrical Time Constant:

13.6 ms 20 °C

Centring Collar Diameter:

130 mm
