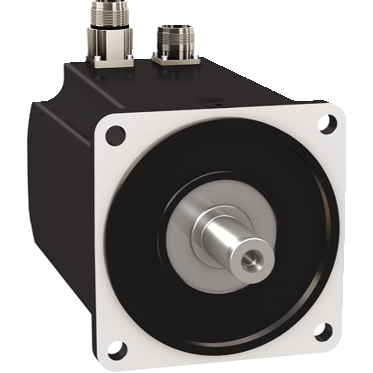

Schneider Electric BMH1403P12A1A Motor 140Mm Iec 25Nm Ip54 4700W Key
SKU:
BMH1403P12A1A
UPC:
3606485207995
MPN:
Condition:
New
Warranty:
18 months
Shaft Length:
50 mm
Environmental Disclosure:
ENVPEP111002EN
Maximum Current Irms:
62.3 A LXM32.D72N4
Stator Resistance:
0.22 Ohm 20 °C
Ip Degree Of Protection:
IP54 standard
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Number Of Motor Poles:
10
Maximum Radial Force Fr:
2420 N 1000 rpm || 1920 N 2000 rpm || 1680 N 3000 rpm
Circularity Profile:
N/A
Mounting Holes Diameter:
11 mm
Nominal Torque:
13.92 N.m LXM32.D72N4 24 A, 400 V, three phase || 13.92 N.m LXM32.D72N4 24 A, 480 V, three phase
Motor Flange Size:
140 mm
Product Compatibility:
LXM32.D72N4 400...480 V three phase
Stator Electrical Time Constant:
13.6 ms 20 °C
Number Of Motor Stacks:
3
Product Or Component Type:
servo motor
Shaft End:
keyed
Centring Collar Diameter:
130 mm
Mounting Support:
international standard flange
Nominal Output Power:
4700 W LXM32.D72N4 24 A, 400 V, three phase || 4700 W LXM32.D72N4 24 A, 480 V, three phase
Torque Constant:
1.34 N.m/A 120 °C
Device Short Name:
BMH
China Rohs Regulation:
X
Sustainable Offer Status:
Green Premium product
Continuous Stall Torque:
24 N.m LXM32.D72N4 24 A, 400 V, three phase || 24 N.m LXM32.D72N4 24 A, 480 V, three phase
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Second Shaft:
without second shaft end
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Length:
232 mm
Type Of Cooling:
natural convection
Continuous Stall Current:
18 A
Rotor Inertia:
47.5 kg.cm²
Shaft Diameter:
24 mm
Phase:
three phase
Maximum Permanent Current:
62.3 A
Nominal Speed:
3000 rpm LXM32.D72N4 24 A, 400 V, three phase || 3000 rpm LXM32.D72N4 24 A, 480 V, three phase
Range Compatibility:
Lexium 32
Holding Brake:
without
Electrical Connection:
straight connectors
Back Emf Constant:
85.9 V/krpm 120 °C
Stator Inductance:
3 mH 20 °C
Net Weight:
16 kg
Speed Feedback Resolution:
131072 points/turn x 4096 turns
[Us] Rated Supply Voltage:
480 V
Continuous Power:
4.8 W
Mercury Free:
Yes
Rohs Exemption Information:
Yes
Centring Collar Depth:
3.5 mm
Maximum Mechanical Speed:
4000 rpm
Circle Diameter Of The Mounting Holes:
165 mm
Number Of Mounting Holes:
4
Key Width:
40 mm
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Pvc Free:
Yes
Maximum Axial Force Fa:
0.2 x Fr
Peak Stall Torque:
71.8 N.m LXM32.D72N4 24 A, 400 V, three phase || 71.8 N.m LXM32.D72N4 24 A, 480 V, three phase
This product is part of the Lexium 32 range, an offer of servo motors from 0.15kW to 11kW. The 10-pole servo motor features maximum mechanical speed of 4000RPM and keyed shaft end with holding brake...
This product is part of the Lexium 32 range, an offer of motion servo drives for machines from 0.15kW to 7kW. The 10-pole servo motor features a medium moment of inertia with maximum mechanical speed...
