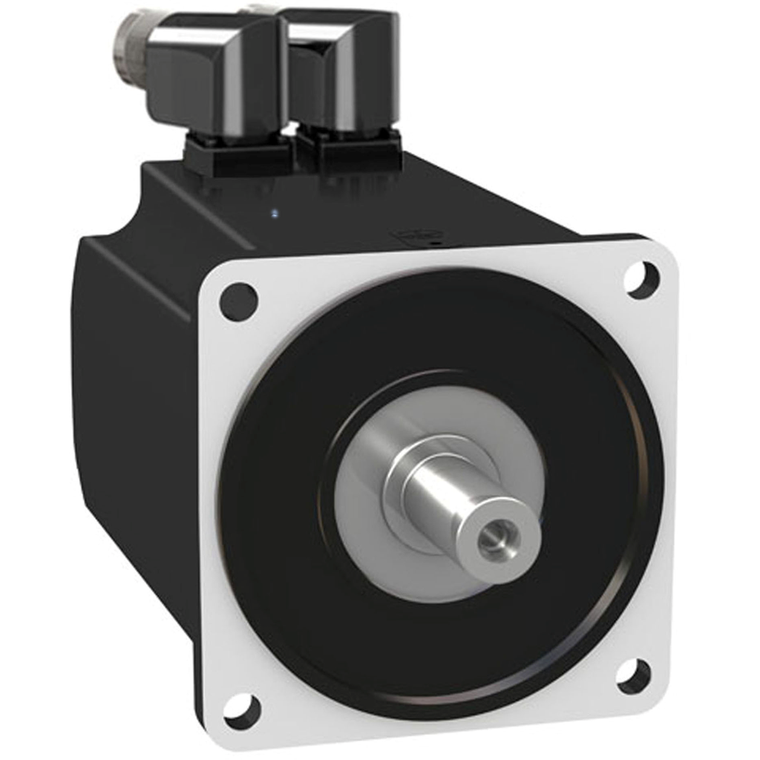

Schneider Electric BMH1403P12A2A Motor 140Mm Iec 25Nm Ip54 4700W Key

SKU:

BMH1403P12A2A

UPC:

3606485208077

MPN:

Condition:

New

Net Weight:

16 kg

Number Of Motor Stacks:

3

Circle Diameter Of The Mounting Holes:

165 mm

Back Emf Constant:

85.9 V/krpm 120 °C

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Continuous Stall Current:

18 A

Stator Resistance:

0.22 Ohm 20 °C

Nominal Torque:

13.92 N.m LXM32.D72N4 24 A, 400 V, three phase || 13.92 N.m LXM32.D72N4 24 A, 480 V, three phase

Speed Feedback Resolution:

131072 points/turn x 4096 turns

Centring Collar Depth:

3.5 mm

Continuous Power:

4.8 W

Mounting Support:

international standard flange

Rohs Exemption Information:

Yes

Device Short Name:

BMH

Peak Stall Torque:

71.8 N.m LXM32.D72N4 24 A, 400 V, three phase || 71.8 N.m LXM32.D72N4 24 A, 480 V, three phase

Holding Brake:

without

Shaft Diameter:

24 mm

Motor Flange Size:

140 mm

Torque Constant:

1.34 N.m/A 120 °C

China Rohs Regulation:

X

Length:

232 mm

Type Of Cooling:

natural convection

Pvc Free:

Yes

Sustainable Offer Status:

Green Premium product

Warranty:

18 months

Maximum Axial Force Fa:

0.2 x Fr

Number Of Motor Poles:

10

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Mercury Free:

Yes

Shaft Length:

50 mm

Continuous Stall Torque:

24 N.m LXM32.D72N4 24 A, 400 V, three phase || 24 N.m LXM32.D72N4 24 A, 480 V, three phase

Rotor Inertia:

47.5 kg.cm²

Centring Collar Diameter:

130 mm

Range Compatibility:

Lexium 32

Second Shaft:

without second shaft end

Environmental Disclosure:

ENVPEP111002EN

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Nominal Output Power:

4700 W LXM32.D72N4 24 A, 400 V, three phase || 4700 W LXM32.D72N4 24 A, 480 V, three phase

Ip Degree Of Protection:

IP54 standard

Number Of Mounting Holes:

4

[Us] Rated Supply Voltage:

480 V

Electrical Connection:

rotatable right-angled connectors

Maximum Mechanical Speed:

4000 rpm

Key Width:

40 mm

Nominal Speed:

3000 rpm LXM32.D72N4 24 A, 400 V, three phase || 3000 rpm LXM32.D72N4 24 A, 480 V, three phase

Stator Electrical Time Constant:

13.6 ms 20 °C

Feedback Type:

multiturn SinCos Hiperface

Product Compatibility:

LXM32.D72N4 400...480 V three phase

Maximum Current Irms:

62.3 A LXM32.D72N4

Shaft End:

keyed

Product Or Component Type:

servo motor

Circularity Profile:

N/A

Maximum Radial Force Fr:

2420 N 1000 rpm || 1920 N 2000 rpm || 1680 N 3000 rpm

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Mounting Holes Diameter:

11 mm

Phase:

three phase

Maximum Permanent Current:

62.3 A

Stator Inductance:

3 mH 20 °C

Datasheet:

View
