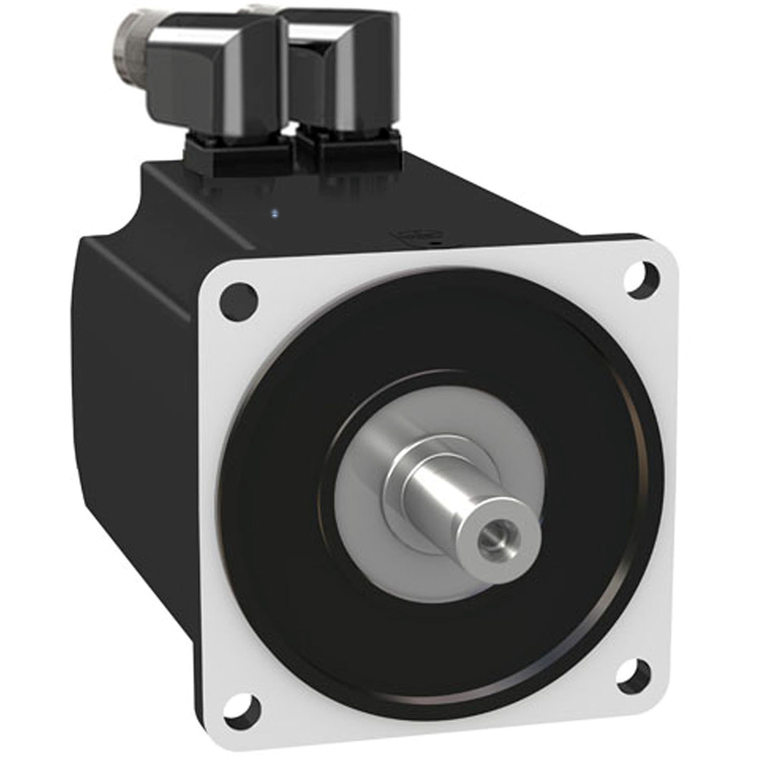

Schneider Electric BMH1403P12F2A Motor 140Mm Iec 25Nm Ip54 4700W Key

(No reviews yet) Write a Review

Write a Review

Schneider Electric

Schneider Electric BMH1403P12F2A Motor 140Mm Iec 25Nm Ip54 4700W Key

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

BMH1403P12F2A

UPC:

3606485208114

MPN:

Condition:

New

Nominal Speed:

3000 rpm LXM32.D72N4 24 A, 400 V, three phase || 3000 rpm LXM32.D72N4 24 A, 480 V, three phase

Feedback Type:

multiturn SinCos Hiperface

Mounting Support:

international standard flange

Centring Collar Depth:

3.5 mm

Electrical Connection:

rotatable right-angled connectors

Rohs Exemption Information:

Yes

Holding Brake:

with

Maximum Current Irms:

62.3 A LXM32.D72N4

Continuous Stall Torque:

24 N.m LXM32.D72N4 24 A, 400 V, three phase || 24 N.m LXM32.D72N4 24 A, 480 V, three phase

Product Or Component Type:

servo motor

Pvc Free:

Yes

[Us] Rated Supply Voltage:

480 V

Key Width:

40 mm

Product Compatibility:

LXM32.D72N4 400...480 V three phase

Continuous Stall Current:

18 A

Nominal Torque:

13.92 N.m LXM32.D72N4 24 A, 400 V, three phase || 13.92 N.m LXM32.D72N4 24 A, 480 V, three phase

Rotor Inertia:

50.27 kg.cm²

Mounting Holes Diameter:

11 mm

Phase:

three phase

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Continuous Power:

4.8 W

Net Weight:

18.5 kg

Nominal Output Power:

4700 W LXM32.D72N4 24 A, 400 V, three phase || 4700 W LXM32.D72N4 24 A, 480 V, three phase

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Second Shaft:

without second shaft end

Peak Stall Torque:

71.8 N.m LXM32.D72N4 24 A, 400 V, three phase || 71.8 N.m LXM32.D72N4 24 A, 480 V, three phase

Stator Resistance:

0.22 Ohm 20 °C

Range Compatibility:

Lexium 32

Shaft End:

keyed

Back Emf Constant:

85.9 V/krpm 120 °C

China Rohs Regulation:

X

Holding Torque:

23 N.m holding brake

Circularity Profile:

N/A

Speed Feedback Resolution:

131072 points/turn x 4096 turns

Ip Degree Of Protection:

IP54 standard

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Stator Electrical Time Constant:

13.6 ms 20 °C

Sustainable Offer Status:

Green Premium product

Number Of Motor Poles:

10

Environmental Disclosure:

ENVPEP111002EN

Number Of Mounting Holes:

4

Shaft Length:

50 mm

Centring Collar Diameter:

130 mm

Warranty:

18 months

Number Of Motor Stacks:

3

Mercury Free:

Yes

Torque Constant:

1.34 N.m/A 120 °C

Type Of Cooling:

natural convection

Maximum Permanent Current:

62.3 A

Device Short Name:

BMH

Stator Inductance:

3 mH 20 °C

Circle Diameter Of The Mounting Holes:

165 mm

Maximum Axial Force Fa:

0.2 x Fr

Shaft Diameter:

24 mm

Motor Flange Size:

140 mm

Brake Pull-In Power:

19 W

Maximum Mechanical Speed:

4000 rpm

Maximum Radial Force Fr:

2420 N 1000 rpm || 1920 N 2000 rpm || 1680 N 3000 rpm

Length:

267 mm
