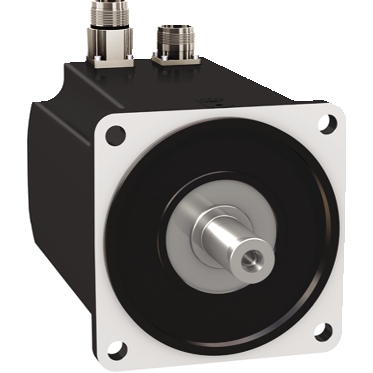

Schneider Electric BMH1403P16A1A Motor 140Mm Iec 25Nm Ip54 4700W Key

SKU:

BMH1403P16A1A

UPC:

3606485208152

MPN:

Condition:

New

Stator Electrical Time Constant:

13.6 ms 20 °C

Ip Degree Of Protection:

IP54 standard

Net Weight:

16 kg

Electrical Connection:

straight connectors

Number Of Motor Stacks:

3

Length:

232 mm

Peak Stall Torque:

71.8 N.m LXM32.D72N4 24 A, 400 V, three phase || 71.8 N.m LXM32.D72N4 24 A, 480 V, three phase

Warranty:

18 months

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Motor Flange Size:

140 mm

Maximum Mechanical Speed:

4000 rpm

Pvc Free:

Yes

Continuous Stall Torque:

24 N.m LXM32.D72N4 24 A, 400 V, three phase || 24 N.m LXM32.D72N4 24 A, 480 V, three phase

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Speed Feedback Resolution:

32768 points/turn

Centring Collar Diameter:

130 mm

Phase:

three phase

Maximum Current Irms:

62.3 A LXM32.D72N4

Centring Collar Depth:

3.5 mm

Circle Diameter Of The Mounting Holes:

165 mm

Nominal Speed:

3000 rpm LXM32.D72N4 24 A, 400 V, three phase || 3000 rpm LXM32.D72N4 24 A, 480 V, three phase

Mounting Holes Diameter:

11 mm

Number Of Mounting Holes:

4

Continuous Power:

4.8 W

Product Or Component Type:

servo motor

Mounting Support:

international standard flange

China Rohs Regulation:

X

Continuous Stall Current:

18 A

Stator Inductance:

3 mH 20 °C

Number Of Motor Poles:

10

Maximum Permanent Current:

62.3 A

Shaft End:

keyed

Type Of Cooling:

natural convection

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Maximum Axial Force Fa:

0.2 x Fr

Product Compatibility:

LXM32.D72N4 400...480 V three phase

Torque Constant:

1.34 N.m/A 120 °C

Sustainable Offer Status:

Green Premium product

Mercury Free:

Yes

Device Short Name:

BMH

Environmental Disclosure:

ENVPEP111002EN

[Us] Rated Supply Voltage:

480 V

Circularity Profile:

N/A

Holding Brake:

without

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Stator Resistance:

0.22 Ohm 20 °C

Feedback Type:

single turn SinCos Hiperface

Second Shaft:

without second shaft end

Key Width:

40 mm

Rohs Exemption Information:

Yes

Back Emf Constant:

85.9 V/krpm 120 °C

Shaft Length:

50 mm

Nominal Output Power:

4700 W LXM32.D72N4 24 A, 400 V, three phase || 4700 W LXM32.D72N4 24 A, 480 V, three phase

Range Compatibility:

Lexium 32

Maximum Radial Force Fr:

2420 N 1000 rpm || 1920 N 2000 rpm || 1680 N 3000 rpm

Nominal Torque:

13.92 N.m LXM32.D72N4 24 A, 400 V, three phase || 13.92 N.m LXM32.D72N4 24 A, 480 V, three phase

Rotor Inertia:

47.5 kg.cm²

Shaft Diameter:

24 mm

Datasheet:

View
