Schneider Electric BMH1403P16A2A Motor 140Mm Iec 25Nm Ip54 4700W Key

Schneider Electric BMH1403P16A2A Motor 140Mm Iec 25Nm Ip54 4700W Key

Schneider Electric
SKU:
BMH1403P16A2A
|
UPC:
3606485208237
$2,090.66
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description

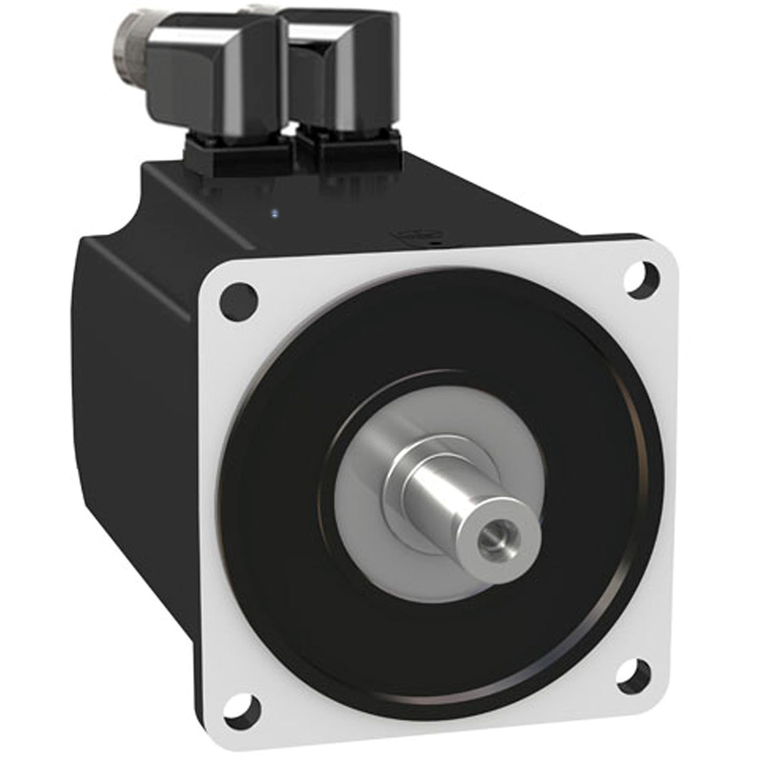

This product is part of the Lexium 32 range, an offer of motion servo drives for machines from 0.15kW to 7kW. The 10-pole servo motor features a medium moment of inertia with maximum mechanical speed of 4000RPM and parallel keyed shaft without holding brake. It is equipped with a SinCos Hiperface® encoder (32768 points/turn) for automatic transmission of data from the servo motor to the servo drive. BMH servo motor is medium inertia motor, it is particularly suitable for high-load applications and allows the movement to be adjusted in a more robust manner. It is a synchronous servo motor with a rated supply voltage of 480V, a continuous stall current of 18A and a continuous power of 4.8W. The shaft dimensions are 24mm (Diameter) x 50mm (Length). It is furnished with rotatable right-angled connectors for electrical connection. It is an IP54 rated product. Its dimensions are 232mm (Length) x 140mm (Width), centring collar dimensions are 3.5mm (Depth) x 130mm (Diameter) with 165mm circle diameter of the mounting hole. It weighs 16kg. This product is compatible with Lexium 32 servo drives. It supports international standard 140mm flange mount with a natural convection cooling system. Encoder gives the absolute position of the motor so that flows can be synchronized and sends data from the servo motor to the servo drive, which provides automatic identification of the motor when the servo drive starts. BMH servo motor with a 3-phase stator and neodymium iron boron (NdFeB) magnets. Casing with RAL 9005 opaque black paint protective coating. 4-point axial mounting flange. Cables and connectors to be ordered separately.
Additional Information
Number Of Motor Stacks:
3
Continuous Stall Torque:
24 N.m LXM32.D72N4 24 A, 400 V, three phase || 24 N.m LXM32.D72N4 24 A, 480 V, three phase
Circularity Profile:
N/A
Maximum Axial Force Fa:
0.2 x Fr
Net Weight:
16 kg
Electrical Connection:
rotatable right-angled connectors
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Mounting Holes Diameter:
11 mm
Maximum Radial Force Fr:
2420 N 1000 rpm || 1920 N 2000 rpm || 1680 N 3000 rpm
Motor Flange Size:
140 mm
Centring Collar Depth:
3.5 mm
Device Short Name:
BMH
Holding Brake:
without
Maximum Mechanical Speed:
4000 rpm
Ip Degree Of Protection:
IP54 standard
Environmental Disclosure:
ENVPEP111002EN
Continuous Power:
4.8 W
Nominal Output Power:
4700 W LXM32.D72N4 24 A, 400 V, three phase || 4700 W LXM32.D72N4 24 A, 480 V, three phase
Number Of Motor Poles:
10
Mercury Free:
Yes
Length:
232 mm
Second Shaft:
without second shaft end
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Key Width:
40 mm
Torque Constant:
1.34 N.m/A 120 °C
Stator Electrical Time Constant:
13.6 ms 20 °C
Rotor Inertia:
47.5 kg.cm²
Speed Feedback Resolution:
32768 points/turn
Feedback Type:
single turn SinCos Hiperface
Nominal Speed:
3000 rpm LXM32.D72N4 24 A, 400 V, three phase || 3000 rpm LXM32.D72N4 24 A, 480 V, three phase
Centring Collar Diameter:
130 mm
China Rohs Regulation:
X
Stator Resistance:
0.22 Ohm 20 °C
Product Compatibility:
LXM32.D72N4 400...480 V three phase
Shaft Length:
50 mm
Range Compatibility:
Lexium 32
Pvc Free:
Yes
Maximum Permanent Current:
62.3 A
Back Emf Constant:
85.9 V/krpm 120 °C
Product Or Component Type:
servo motor
Continuous Stall Current:
18 A
Mounting Support:
international standard flange
Circle Diameter Of The Mounting Holes:
165 mm
Stator Inductance:
3 mH 20 °C
Number Of Mounting Holes:
4
Warranty:
18 months
Rohs Exemption Information:
Yes
Nominal Torque:
13.92 N.m LXM32.D72N4 24 A, 400 V, three phase || 13.92 N.m LXM32.D72N4 24 A, 480 V, three phase
Type Of Cooling:
natural convection
Maximum Current Irms:
62.3 A LXM32.D72N4
[Us] Rated Supply Voltage:
480 V
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Shaft End:
keyed
Phase:
three phase
Sustainable Offer Status:
Green Premium product
Shaft Diameter:
24 mm
Peak Stall Torque:
71.8 N.m LXM32.D72N4 24 A, 400 V, three phase || 71.8 N.m LXM32.D72N4 24 A, 480 V, three phase
Datasheet:
View
