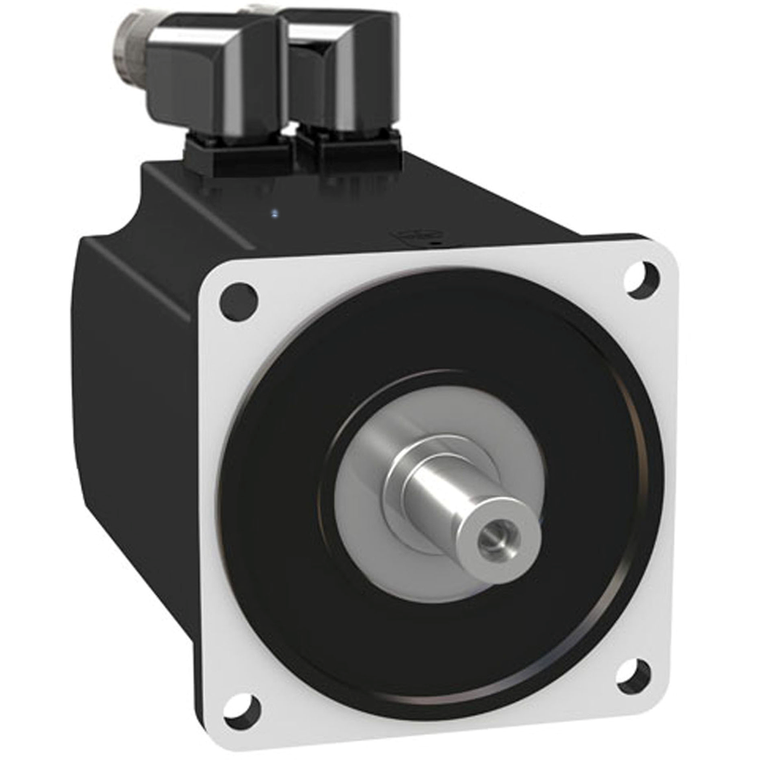

Schneider Electric BMH1403P22A2A Motor 140Mm Iec 25Nm Ip65/67 4700W No

SKU:

BMH1403P22A2A

UPC:

3606485208084

MPN:

Condition:

New

Phase:

three phase

Maximum Mechanical Speed:

4000 rpm

Ip Degree Of Protection:

IP65 standard || IP67 with IP67 kit

Number Of Mounting Holes:

4

Peak Stall Torque:

71.8 N.m LXM32.D72N4 24 A, 400 V, three phase || 71.8 N.m LXM32.D72N4 24 A, 480 V, three phase

Motor Flange Size:

140 mm

Second Shaft:

without second shaft end

Maximum Current Irms:

62.3 A LXM32.D72N4

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Feedback Type:

multiturn SinCos Hiperface

Circularity Profile:

N/A

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Length:

232 mm

Shaft End:

smooth shaft

Continuous Stall Torque:

24 N.m LXM32.D72N4 24 A, 400 V, three phase || 24 N.m LXM32.D72N4 24 A, 480 V, three phase

Nominal Torque:

13.92 N.m LXM32.D72N4 24 A, 400 V, three phase || 13.92 N.m LXM32.D72N4 24 A, 480 V, three phase

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Number Of Motor Poles:

10

Nominal Speed:

3000 rpm LXM32.D72N4 24 A, 400 V, three phase || 3000 rpm LXM32.D72N4 24 A, 480 V, three phase

Mercury Free:

Yes

Type Of Cooling:

natural convection

Product Or Component Type:

servo motor

China Rohs Regulation:

X

Torque Constant:

1.34 N.m/A 120 °C

Nominal Output Power:

4700 W LXM32.D72N4 24 A, 400 V, three phase || 4700 W LXM32.D72N4 24 A, 480 V, three phase

Mounting Support:

international standard flange

Environmental Disclosure:

ENVPEP111002EN

Pvc Free:

Yes

Speed Feedback Resolution:

131072 points/turn x 4096 turns

Sustainable Offer Status:

Green Premium product

Rotor Inertia:

47.5 kg.cm²

Warranty:

18 months

Continuous Stall Current:

18 A

[Us] Rated Supply Voltage:

480 V

Range Compatibility:

Lexium 32

Net Weight:

16 kg

Product Compatibility:

LXM32.D72N4 400...480 V three phase

Maximum Radial Force Fr:

2420 N 1000 rpm || 1920 N 2000 rpm || 1680 N 3000 rpm

Shaft Diameter:

24 mm

Number Of Motor Stacks:

3

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Device Short Name:

BMH

Centring Collar Diameter:

130 mm

Circle Diameter Of The Mounting Holes:

165 mm

Rohs Exemption Information:

Yes

Maximum Axial Force Fa:

0.2 x Fr

Stator Electrical Time Constant:

13.6 ms 20 °C

Mounting Holes Diameter:

11 mm

Shaft Length:

50 mm

Maximum Permanent Current:

62.3 A

Stator Inductance:

3 mH 20 °C

Electrical Connection:

rotatable right-angled connectors

Centring Collar Depth:

3.5 mm

Holding Brake:

without

Continuous Power:

4.8 W

Stator Resistance:

0.22 Ohm 20 °C

Back Emf Constant:

85.9 V/krpm 120 °C

Datasheet:

View
