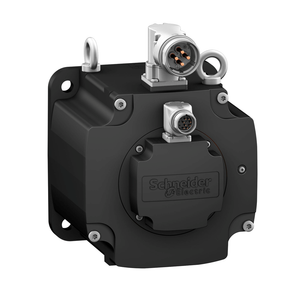

Schneider Electric BMH1903P31A2A Motor 190Mm Iec 65Nm Ip65/67 7.8Kw Key

Schneider Electric BMH1903P31A2A Motor 190Mm Iec 65Nm Ip65/67 7.8Kw Key

Schneider Electric
SKU:
BMH1903P31A2A
|
UPC:
3606485264271
$5,013.35
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description
This product is part of the Lexium 32 range, an offer of servo motors from 0.15kW to 11kW. The 10-pole servo motor features maximum mechanical speed of 3500RPM and keyed shaft end without holding brake. It is an equipped with a single-turn SinCos Hiperface® feedback with 1,31,072 points/turn speed feedback resolution. It is a servo motor with a rated supply voltage of 480V, a continuous stall current of 36.1A and a continuous power of 7.95W. The shaft dimensions are 38mm (diameter) x 80mm (length). It is furnished with rotatable right angled connectors for electrical connection. It is an IP65 and IP67 rated product. The length of this product is 310mm and the centering collar dimensions are 4mm (depth) x 180mm (diameter) with 215mm mounting hole. It weighs 43kg. This range is compatible with Lexium 32 servo drives. This product is compatible with LXM32.D72N4 at 400V to 480V three phase. It supports 190mm international standard flange mount with a natural convection cooling system. Lexium 32 is a servo drive range provides drive and motor combination that has exactly the right power, performance and functionality. The Lexium 32 range of servo drives includes four servo drive models with power ratings from 0.15kW to 11kW and the servo motor ranges BMH and BSH series.
Additional Information
Number Of Motor Stacks:
3
Stator Inductance:
3.62 mH 20 °C
Mercury Free:
Yes
Type Of Cooling:
natural convection
Rotor Inertia:
194.1 kg.cm²
Number Of Motor Poles:
10
Continuous Power:
7.95 W
Nominal Output Power:
5700 W LXM32.D72N4 24 A, 400 V, three phase || 5700 W LXM32.D72N4 24 A, 480 V, three phase || 7330 W LXM32MD85N4 32 A, 400 V, three phase || 7330 W LXM32MD85N4 32 A, 480 V, three phase || 7750 W LXM32MC10N4 40 A, 400 V, three phase || 7750 W LXM32MC1
Mounting Holes Diameter:
14 mm
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Net Weight:
43 kg
Continuous Stall Torque:
43.2 N.m LXM32.D72N4 24 A, 400 V, three phase || 43.2 N.m LXM32.D72N4 24 A, 480 V, three phase || 57.6 N.m LXM32MD85N4 32 A, 400 V, three phase || 57.6 N.m LXM32MD85N4 32 A, 480 V, three phase || 65 N.m LXM32MC10N4 40 A, 400 V, three phase || 65 N.m
Range Compatibility:
Lexium 32
Stator Electrical Time Constant:
27.8 ms 20 °C
Product Or Component Type:
servo motor
Stator Resistance:
0.13 Ohm 20 °C
Maximum Radial Force Fr:
4500 N 1000 rpm
Shaft Diameter:
38 mm
Phase:
three phase
Torque Constant:
1.8 N.m/A 120 °C
Ip Degree Of Protection:
IP65 standard || IP67 with IP67 kit
Centring Collar Diameter:
180 mm
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Shaft End:
keyed
[Us] Rated Supply Voltage:
480 V
Centring Collar Depth:
4 mm
Mounting Support:
international standard flange
China Rohs Regulation:
X
Circle Diameter Of The Mounting Holes:
215 mm
Warranty:
18 months
Nominal Torque:
36 N.m LXM32.D72N4 24 A, 400 V, three phase || 36 N.m LXM32.D72N4 24 A, 480 V, three phase || 35 N.m LXM32MD85N4 32 A, 400 V, three phase || 35 N.m LXM32MD85N4 32 A, 480 V, three phase || 37 N.m LXM32MC10N4 40 A, 400 V, three phase || 37 N.m LXM32MC1
Continuous Stall Current:
36.1 A
Maximum Permanent Current:
124.5 A
Motor Flange Size:
190 mm
Maximum Current Irms:
72 A LXM32.D72N4
Peak Stall Torque:
122.8 N.m LXM32.D72N4 24 A, 400 V, three phase || 122.8 N.m LXM32.D72N4 24 A, 480 V, three phase || 141.3 N.m LXM32MD85N4 32 A, 400 V, three phase || 141.3 N.m LXM32MD85N4 32 A, 480 V, three phase || 162.7 N.m LXM32MC10N4 40 A, 400 V, three phase ||
Shaft Length:
80 mm
Feedback Type:
single turn SinCos Hiperface
Product Compatibility:
LXM32.D72N4 400...480 V three phase
Speed Feedback Resolution:
131072 points/turn
Key Width:
70 mm
Device Short Name:
BMH
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Number Of Mounting Holes:
4
Electrical Connection:
rotatable right-angled connectors
Maximum Axial Force Fa:
0.2 x Fr
Environmental Disclosure:
ENVPEP111049EN
Second Shaft:
without second shaft end
Maximum Mechanical Speed:
3500 rpm
Length:
310 mm
Holding Brake:
without
Rohs Exemption Information:
Yes
Nominal Speed:
1500 rpm LXM32.D72N4 24 A, 400 V, three phase || 1500 rpm LXM32.D72N4 24 A, 480 V, three phase || 2000 rpm LXM32MC10N4 40 A, 400 V, three phase || 2000 rpm LXM32MC10N4 40 A, 480 V, three phase || 2000 rpm LXM32MD85N4 32 A, 400 V, three phase || 2000
Back Emf Constant:
129.2 V/krpm 120 °C
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Circularity Profile:
N/A
Sustainable Offer Status:
Green Premium product
Pvc Free:
Yes
