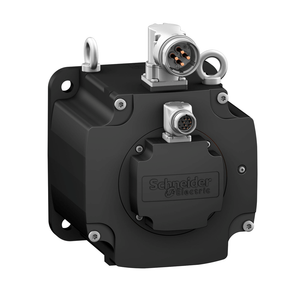

Schneider Electric BMH1903P32F2A Motor 190Mm Iec 65Nm Ip65/67 7.8Kw Key

SKU:

BMH1903P32F2A

UPC:

3.60649E+12

MPN:

Condition:

New

Rotor Inertia:

208.8 kg.cm²

[Us] Rated Supply Voltage:

480 V

Range Compatibility:

Lexium 32

Speed Feedback Resolution:

131072 points/turn x 4096 turns

Key Width:

70 mm

Centring Collar Diameter:

180 mm

Holding Brake:

with

China Rohs Regulation:

X

Environmental Disclosure:

ENVPEP111049EN

Maximum Mechanical Speed:

3500 rpm

Maximum Radial Force Fr:

4500 N 1000 rpm

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Shaft Length:

80 mm

Second Shaft:

without second shaft end

Pvc Free:

Yes

Continuous Stall Torque:

43.2 N.m LXM32.D72N4 24 A, 400 V, three phase || 43.2 N.m LXM32.D72N4 24 A, 480 V, three phase || 57.6 N.m LXM32MD85N4 32 A, 400 V, three phase || 57.6 N.m LXM32MD85N4 32 A, 480 V, three phase || 65 N.m LXM32MC10N4 40 A, 400 V, three phase || 65 N.m

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Nominal Output Power:

5700 W LXM32.D72N4 24 A, 400 V, three phase || 5700 W LXM32.D72N4 24 A, 480 V, three phase || 7330 W LXM32MD85N4 32 A, 400 V, three phase || 7330 W LXM32MD85N4 32 A, 480 V, three phase || 7750 W LXM32MC10N4 40 A, 400 V, three phase || 7750 W LXM32MC1

Shaft Diameter:

38 mm

Stator Resistance:

0.13 Ohm 20 °C

Continuous Stall Current:

36.1 A

Length:

370 mm

Maximum Permanent Current:

124.5 A

Product Or Component Type:

servo motor

Ip Degree Of Protection:

IP65 standard || IP67 with IP67 kit

Motor Flange Size:

190 mm

Rohs Exemption Information:

Yes

Electrical Connection:

rotatable right-angled connectors

Nominal Torque:

36 N.m LXM32.D72N4 24 A, 400 V, three phase || 36 N.m LXM32.D72N4 24 A, 480 V, three phase || 35 N.m LXM32MD85N4 32 A, 400 V, three phase || 35 N.m LXM32MD85N4 32 A, 480 V, three phase || 37 N.m LXM32MC10N4 40 A, 400 V, three phase || 37 N.m LXM32MC1

Maximum Axial Force Fa:

0.2 x Fr

Centring Collar Depth:

4 mm

Brake Pull-In Power:

40 W

Type Of Cooling:

natural convection

Peak Stall Torque:

122.8 N.m LXM32.D72N4 24 A, 400 V, three phase || 122.8 N.m LXM32.D72N4 24 A, 480 V, three phase || 141.3 N.m LXM32MD85N4 32 A, 400 V, three phase || 141.3 N.m LXM32MD85N4 32 A, 480 V, three phase || 162.7 N.m LXM32MC10N4 40 A, 400 V, three phase ||

Nominal Speed:

1500 rpm LXM32.D72N4 24 A, 400 V, three phase || 1500 rpm LXM32.D72N4 24 A, 480 V, three phase || 2000 rpm LXM32MC10N4 40 A, 400 V, three phase || 2000 rpm LXM32MC10N4 40 A, 480 V, three phase || 2000 rpm LXM32MD85N4 32 A, 400 V, three phase || 2000

Holding Torque:

80 N.m holding brake

Phase:

three phase

Feedback Type:

multiturn SinCos Hiperface

Number Of Mounting Holes:

4

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Torque Constant:

1.8 N.m/A 120 °C

Back Emf Constant:

129.2 V/krpm 120 °C

Stator Electrical Time Constant:

27.8 ms 20 °C

Mounting Holes Diameter:

14 mm

Shaft End:

keyed

Device Short Name:

BMH

Sustainable Offer Status:

Green Premium product

Circle Diameter Of The Mounting Holes:

215 mm

Stator Inductance:

3.62 mH 20 °C

Circularity Profile:

N/A

Continuous Power:

7.95 W

Mercury Free:

Yes

Maximum Current Irms:

72 A LXM32.D72N4

Product Compatibility:

LXM32.D72N4 400...480 V three phase

Mounting Support:

international standard flange

Number Of Motor Stacks:

3

Number Of Motor Poles:

10

Net Weight:

44.5 kg
