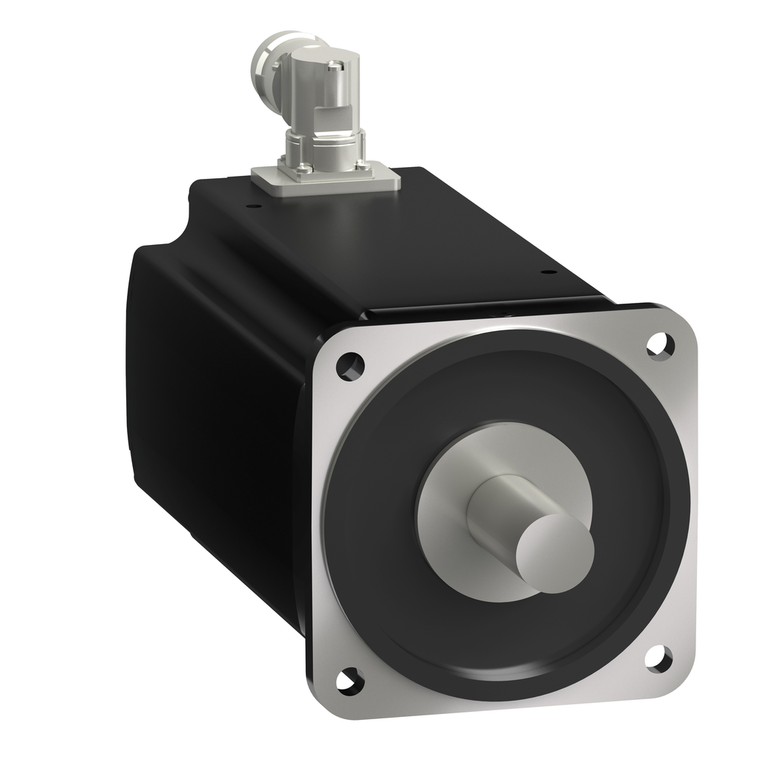

Schneider Electric BMH1904P21A2A Motor 190Mm Iec 96Nm Ip65 9.8Kw No Key E
SKU:
BMH1904P21A2A
UPC:
3.60648E+12
MPN:
Condition:
New
Sustainable Offer Status:
Green Premium product
Second Shaft:
without second shaft end
Stator Resistance:
0.16 Ohm 20 °C
Circularity Profile:
N/A
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
China Rohs Regulation:
X
Device Short Name:
BMH
Mounting Support:
international standard flange
Nominal Speed:
2000 rpm LXM32MC10N4 40 A, 400 V, three phase || 2000 rpm LXM32MC10N4 40 A, 480 V, three phase
Holding Brake:
without
Speed Feedback Resolution:
131072 points/turn
Key Width:
10 mm
Torque Constant:
2.5 N.m/A 120 °C
Motor Flange Size:
190 mm
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Phase:
three phase
Range Compatibility:
Lexium 32
Maximum Radial Force Fr:
3800 N 1000 rpm || 3700 N 2000 rpm || 3600 N 3000 rpm
Mercury Free:
Yes
Rotor Inertia:
276.7 kg.cm²
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Centring Collar Depth:
4 mm
Peak Stall Torque:
230 N.m LXM32MC10N4 40 A, 400 V, three phase || 230 N.m LXM32MC10N4 40 A, 480 V, three phase
Back Emf Constant:
168 V/krpm 120 °C
Feedback Type:
single turn SinCos Hiperface
Maximum Current Irms:
100 A LXM32MC10N4 || 100 A
Maximum Permanent Current:
100 A
Mounting Holes Diameter:
14 mm
Ip Degree Of Protection:
IP65 standard || IP67 with IP67 kit
Shaft Length:
80 mm
Number Of Motor Stacks:
4
Continuous Stall Current:
40 A
Shaft Diameter:
38 mm
Rohs Exemption Information:
Yes
Centring Collar Diameter:
180 mm
Shaft End:
smooth shaft
Number Of Mounting Holes:
4
Number Of Motor Poles:
10
Electrical Connection:
rotatable right-angled connectors
Nominal Output Power:
9800 W LXM32MC10N4 40 A, 400 V, three phase || 9800 W LXM32MC10N4 40 A, 480 V, three phase
Circle Diameter Of The Mounting Holes:
215 mm
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Pvc Free:
Yes
Continuous Stall Torque:
100 N.m LXM32MC10N4 40 A, 400 V, three phase || 100 N.m LXM32MC10N4 40 A, 480 V, three phase
Environmental Disclosure:
ENVPEP111049EN
Length:
383 mm
Stator Inductance:
4.74 mH 20 °C
Stator Electrical Time Constant:
29.6 ms 20 °C
Product Or Component Type:
servo motor
Maximum Axial Force Fa:
0.2 x Fr
Type Of Cooling:
natural convection
Nominal Torque:
46.8 N.m LXM32MC10N4 40 A, 400 V, three phase || 46.8 N.m LXM32MC10N4 40 A, 480 V, three phase
