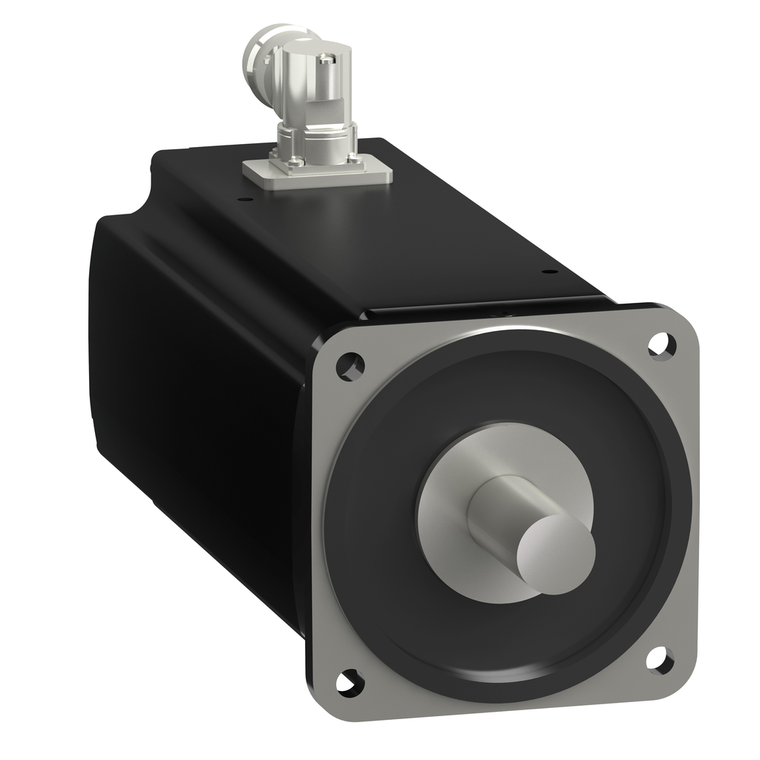

Schneider Electric BMH1904P22F2A Motor 190Mm Iec 96Nm Ip65 9.8Kw No Key E

SKU:

BMH1904P22F2A

UPC:

3606485458847

MPN:

Condition:

New

Mounting Holes Diameter:

14 mm

Environmental Disclosure:

ENVPEP111049EN

Continuous Stall Torque:

100 N.m LXM32MC10N4 40 A, 400 V, three phase || 100 N.m LXM32MC10N4 40 A, 480 V, three phase

Electrical Connection:

rotatable right-angled connectors

Pvc Free:

Yes

Brake Pull-In Power:

40 W

Mercury Free:

Yes

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Torque Constant:

2.5 N.m/A 120 °C

Type Of Cooling:

natural convection

Shaft Length:

80 mm

Motor Flange Size:

190 mm

Shaft Diameter:

38 mm

Shaft End:

keyed

Back Emf Constant:

168 V/krpm 120 °C

Stator Electrical Time Constant:

29.6 ms 20 °C

Device Short Name:

BMH

Mounting Support:

international standard flange

Stator Inductance:

4.74 mH 20 °C

Continuous Stall Current:

40 A

Maximum Mechanical Speed:

3000 rpm

Maximum Radial Force Fr:

3800 N 1000 rpm || 3700 N 2000 rpm || 3600 N 3000 rpm

Number Of Motor Poles:

10

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Centring Collar Diameter:

180 mm

Holding Brake:

with

Centring Collar Depth:

4 mm

Maximum Permanent Current:

100 A

Product Or Component Type:

servo motor

Rotor Inertia:

298.2 kg.cm²

Feedback Type:

single turn SinCos Hiperface

Maximum Current Irms:

100 A LXM32MC10N4 || 100 A

Net Weight:

62.6 kg

[Us] Rated Supply Voltage:

480 V

Peak Stall Torque:

230 N.m LXM32MC10N4 40 A, 400 V, three phase || 230 N.m LXM32MC10N4 40 A, 480 V, three phase

Nominal Torque:

46.8 N.m LXM32MC10N4 40 A, 400 V, three phase || 46.8 N.m LXM32MC10N4 40 A, 480 V, three phase

Nominal Speed:

2000 rpm LXM32MC10N4 40 A, 400 V, three phase || 2000 rpm LXM32MC10N4 40 A, 480 V, three phase

Circle Diameter Of The Mounting Holes:

215 mm

Second Shaft:

without second shaft end

Circularity Profile:

N/A

China Rohs Regulation:

X

Range Compatibility:

Lexium 32

Number Of Motor Stacks:

4

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Nominal Output Power:

9800 W LXM32MC10N4 40 A, 400 V, three phase || 9800 W LXM32MC10N4 40 A, 480 V, three phase

Length:

456 mm

Speed Feedback Resolution:

131072 points/turn

Maximum Axial Force Fa:

0.2 x Fr

Ip Degree Of Protection:

IP65 standard || IP67 with IP67 kit

Rohs Exemption Information:

Yes

Holding Torque:

80 N.m holding brake

Sustainable Offer Status:

Green Premium product

Stator Resistance:

0.16 Ohm 20 °C

Phase:

three phase

Key Width:

10 mm

Number Of Mounting Holes:

4

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Datasheet:

View
