Schneider Electric

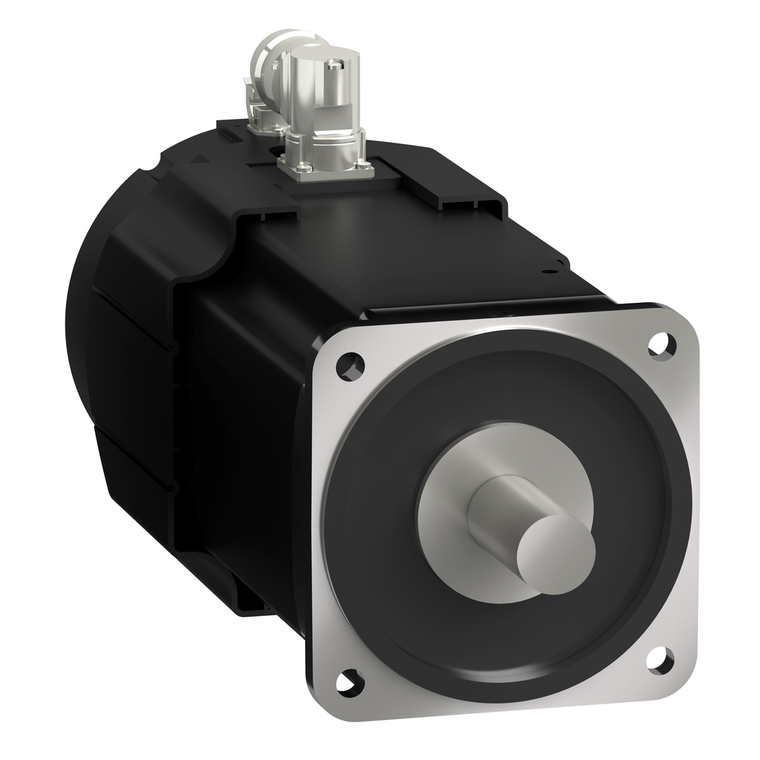

Schneider Electric BMH1904P22F2B Motor 190Mm Iec 97Nm Ip65 16Kw No Key En

SKU:

BMH1904P22F2B

UPC:

3606485458922

MPN:

Condition:

New

Brake Pull-In Power:

40 W

Phase:

three phase

Shaft Length:

80 mm

Motor Flange Size:

190 mm

Circularity Profile:

N/A

Continuous Stall Current:

40 A

Maximum Radial Force Fr:

3800 N 1000 rpm || 3700 N 2000 rpm || 3600 N 3000 rpm

Rohs Exemption Information:

Yes

Speed Feedback Resolution:

131072 points/turn x 4096 turns

Net Weight:

62.6 kg

Maximum Current Irms:

100 A LXM32MC10N4 || 100 A

Key Width:

10 mm

Stator Electrical Time Constant:

29.6 ms 20 °C

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Device Short Name:

BMH

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Sustainable Offer Status:

Green Premium product

Stator Resistance:

0.16 Ohm 20 °C

Number Of Mounting Holes:

4

Maximum Axial Force Fa:

0.2 x Fr

China Rohs Regulation:

X

Electrical Connection:

rotatable right-angled connectors

Nominal Speed:

2000 rpm LXM32MC10N4 40 A, 400 V, three phase || 2000 rpm LXM32MC10N4 40 A, 480 V, three phase

Centring Collar Depth:

4 mm

Nominal Output Power:

9800 W LXM32MC10N4 40 A, 400 V, three phase || 9800 W LXM32MC10N4 40 A, 480 V, three phase

Holding Torque:

80 N.m holding brake

Feedback Type:

multiturn SinCos Hiperface

Circle Diameter Of The Mounting Holes:

215 mm

Environmental Disclosure:

ENVPEP111049EN

Range Compatibility:

Lexium 32

Maximum Mechanical Speed:

3000 rpm

[Us] Rated Supply Voltage:

480 V

Back Emf Constant:

168 V/krpm 120 °C

Continuous Stall Torque:

100 N.m LXM32MC10N4 40 A, 400 V, three phase || 100 N.m LXM32MC10N4 40 A, 480 V, three phase

Holding Brake:

with

Maximum Permanent Current:

100 A

Mounting Holes Diameter:

14 mm

Peak Stall Torque:

230 N.m LXM32MC10N4 40 A, 400 V, three phase || 230 N.m LXM32MC10N4 40 A, 480 V, three phase

Mounting Support:

international standard flange

Centring Collar Diameter:

180 mm

Ip Degree Of Protection:

IP65 standard || IP67 with IP67 kit

Shaft Diameter:

38 mm

Product Or Component Type:

servo motor

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Torque Constant:

2.5 N.m/A 120 °C

Mercury Free:

Yes

Second Shaft:

without second shaft end

Length:

456 mm

Type Of Cooling:

natural convection

Pvc Free:

Yes

Shaft End:

keyed

Rotor Inertia:

298.2 kg.cm²

Nominal Torque:

46.8 N.m LXM32MC10N4 40 A, 400 V, three phase || 46.8 N.m LXM32MC10N4 40 A, 480 V, three phase

Number Of Motor Stacks:

4

Stator Inductance:

4.74 mH 20 °C

Number Of Motor Poles:

10

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Datasheet:

View
