Schneider Electric

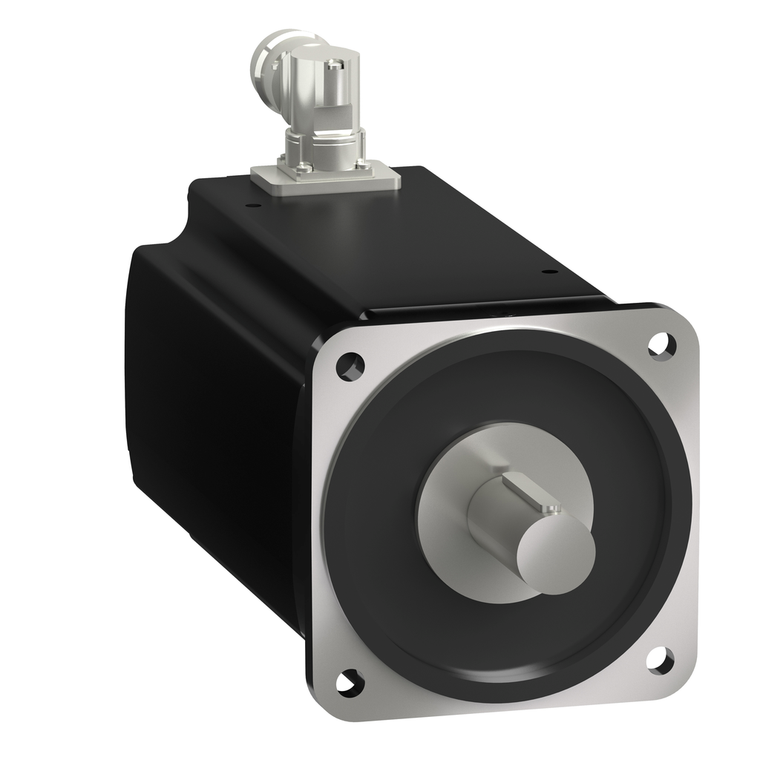

Schneider Electric BMH1904P32A2A Motor 190Mm Iec 96Nm Ip65 9.8Kw Key Enc.

SKU:

BMH1904P32A2A

UPC:

3.60649E+12

MPN:

Condition:

New

Back Emf Constant:

168 V/krpm 120 °C

Centring Collar Diameter:

180 mm

Stator Inductance:

4.74 mH 20 °C

Phase:

three phase

Maximum Radial Force Fr:

3800 N 1000 rpm || 3700 N 2000 rpm || 3600 N 3000 rpm

Mounting Holes Diameter:

14 mm

Holding Brake:

without

Second Shaft:

without second shaft end

Stator Resistance:

0.16 Ohm 20 °C

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Continuous Stall Current:

40 A

Maximum Mechanical Speed:

3000 rpm

Circle Diameter Of The Mounting Holes:

215 mm

Rohs Exemption Information:

Yes

Continuous Stall Torque:

100 N.m LXM32MC10N4 40 A, 400 V, three phase || 100 N.m LXM32MC10N4 40 A, 480 V, three phase

Circularity Profile:

N/A

Rotor Inertia:

276.7 kg.cm²

Maximum Axial Force Fa:

0.2 x Fr

Maximum Permanent Current:

100 A

Type Of Cooling:

fan

Number Of Mounting Holes:

4

Net Weight:

57.4 kg

Number Of Motor Poles:

10

Maximum Current Irms:

100 A LXM32MC10N4 || 100 A

Speed Feedback Resolution:

131072 points/turn

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Feedback Type:

single turn SinCos Hiperface

Electrical Connection:

rotatable right-angled connectors

Shaft End:

keyed

Product Or Component Type:

servo motor

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Pvc Free:

Yes

Environmental Disclosure:

ENVPEP111049EN

Peak Stall Torque:

230 N.m LXM32MC10N4 40 A, 400 V, three phase || 230 N.m LXM32MC10N4 40 A, 480 V, three phase

Nominal Speed:

2000 rpm LXM32MC10N4 40 A, 400 V, three phase || 2000 rpm LXM32MC10N4 40 A, 480 V, three phase

Motor Flange Size:

190 mm

China Rohs Regulation:

X

Nominal Torque:

76.4 N.m LXM32MC10N4 40 A, 400 V, three phase || 76.4 N.m LXM32MC10N4 40 A, 480 V, three phase

Length:

449.5 mm

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Mercury Free:

Yes

Shaft Diameter:

38 mm

Key Width:

10 mm

Nominal Output Power:

16000 W LXM32MC10N4 40 A, 400 V, three phase || 16000 W LXM32MC10N4 40 A, 480 V, three phase

Number Of Motor Stacks:

4

Centring Collar Depth:

4 mm

Mounting Support:

international standard flange

Ip Degree Of Protection:

IP65 standard || IP20 with fan module

Device Short Name:

BMH

Range Compatibility:

Lexium 32

[Us] Rated Supply Voltage:

480 V

Shaft Length:

80 mm

Stator Electrical Time Constant:

29.6 ms 20 °C

Sustainable Offer Status:

Green Premium product

Torque Constant:

2.5 N.m/A 120 °C
