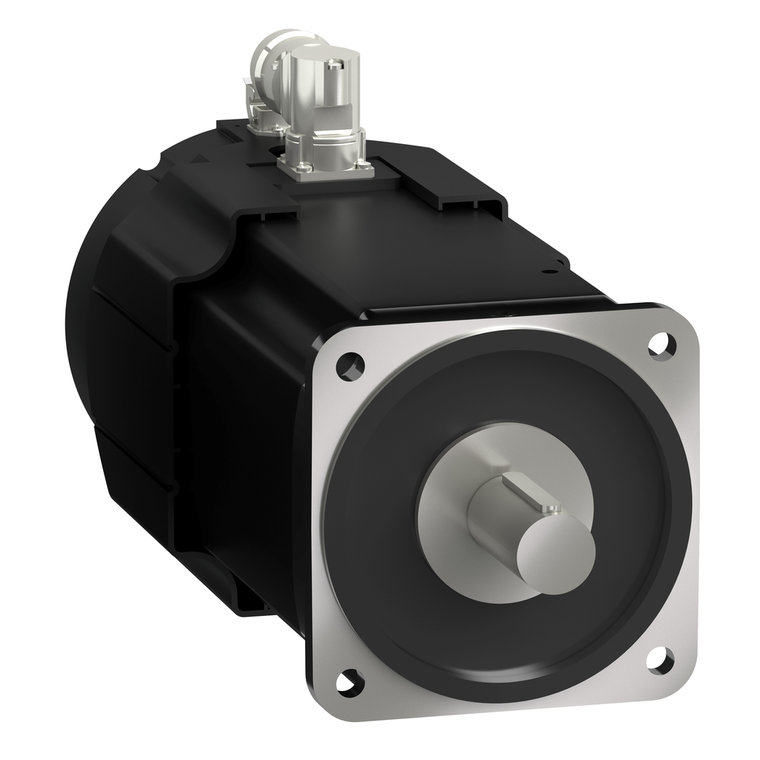

Schneider Electric BMH1904P32A2B Motor 190Mm Iec 97Nm Ip65 16Kw Key Enc.

(No reviews yet) Write a Review

Write a Review

Schneider Electric BMH1904P32A2B Motor 190Mm Iec 97Nm Ip65 16Kw Key Enc.

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

BMH1904P32A2B

UPC:

3606485458953

MPN:

Condition:

New

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Centring Collar Diameter:

180 mm

China Rohs Regulation:

X

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Shaft End:

keyed

Number Of Mounting Holes:

4

Rohs Exemption Information:

Yes

Torque Constant:

2.5 N.m/A 120 °C

Pvc Free:

Yes

Key Width:

10 mm

Continuous Stall Current:

40 A

Holding Brake:

without

Phase:

three phase

Second Shaft:

without second shaft end

Ip Degree Of Protection:

IP65 standard || IP20 with fan module

Shaft Length:

80 mm

Maximum Permanent Current:

100 A

Sustainable Offer Status:

Green Premium product

Mounting Support:

international standard flange

Speed Feedback Resolution:

131072 points/turn x 4096 turns

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Nominal Speed:

2000 rpm LXM32MC10N4 40 A, 400 V, three phase || 2000 rpm LXM32MC10N4 40 A, 480 V, three phase

Maximum Mechanical Speed:

3000 rpm

Number Of Motor Stacks:

4

Stator Inductance:

4.74 mH 20 °C

Back Emf Constant:

168 V/krpm 120 °C

Maximum Radial Force Fr:

3800 N 1000 rpm || 3700 N 2000 rpm || 3600 N 3000 rpm

Number Of Motor Poles:

10

Length:

449.5 mm

Maximum Current Irms:

100 A LXM32MC10N4 || 100 A

Mercury Free:

Yes

Circle Diameter Of The Mounting Holes:

215 mm

Circularity Profile:

N/A

Stator Electrical Time Constant:

29.6 ms 20 °C

Centring Collar Depth:

4 mm

Motor Flange Size:

190 mm

Mounting Holes Diameter:

14 mm

Environmental Disclosure:

ENVPEP111049EN

[Us] Rated Supply Voltage:

480 V

Product Or Component Type:

servo motor

Net Weight:

57.4 kg

Stator Resistance:

0.16 Ohm 20 °C

Electrical Connection:

rotatable right-angled connectors

Range Compatibility:

Lexium 32

Shaft Diameter:

38 mm

Nominal Torque:

76.4 N.m LXM32MC10N4 40 A, 400 V, three phase || 76.4 N.m LXM32MC10N4 40 A, 480 V, three phase

Maximum Axial Force Fa:

0.2 x Fr

Rotor Inertia:

276.7 kg.cm²

Feedback Type:

multiturn SinCos Hiperface

Nominal Output Power:

16000 W LXM32MC10N4 40 A, 400 V, three phase || 16000 W LXM32MC10N4 40 A, 480 V, three phase

Peak Stall Torque:

230 N.m LXM32MC10N4 40 A, 400 V, three phase || 230 N.m LXM32MC10N4 40 A, 480 V, three phase

Device Short Name:

BMH

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Continuous Stall Torque:

100 N.m LXM32MC10N4 40 A, 400 V, three phase || 100 N.m LXM32MC10N4 40 A, 480 V, three phase

Type Of Cooling:

fan
