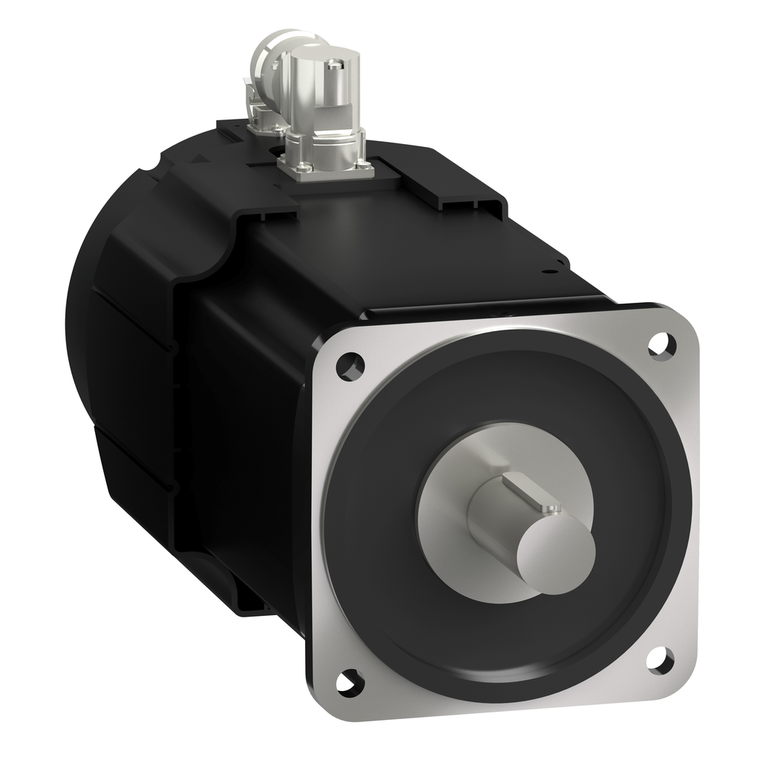

Schneider Electric BMH1904P32F2B Motor 190Mm Iec 97Nm Ip65 16Kw Key Enc.

(No reviews yet) Write a Review

Write a Review

Schneider Electric

Schneider Electric BMH1904P32F2B Motor 190Mm Iec 97Nm Ip65 16Kw Key Enc.

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

BMH1904P32F2B

UPC:

3.60648E+12

MPN:

Condition:

New

Stator Resistance:

0.16 Ohm 20 °C

Back Emf Constant:

168 V/krpm 120 °C

Mounting Holes Diameter:

14 mm

Maximum Axial Force Fa:

0.2 x Fr

Maximum Permanent Current:

100 A

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Sustainable Offer Status:

Green Premium product

Speed Feedback Resolution:

131072 points/turn x 4096 turns

Rotor Inertia:

298.2 kg.cm²

Maximum Current Irms:

100 A LXM32MC10N4 || 100 A

Shaft Diameter:

38 mm

Centring Collar Depth:

4 mm

Type Of Cooling:

fan

Centring Collar Diameter:

180 mm

Peak Stall Torque:

230 N.m LXM32MC10N4 40 A, 400 V, three phase || 230 N.m LXM32MC10N4 40 A, 480 V, three phase

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Second Shaft:

without second shaft end

Maximum Mechanical Speed:

3000 rpm

Torque Constant:

2.5 N.m/A 120 °C

Continuous Stall Torque:

100 N.m LXM32MC10N4 40 A, 400 V, three phase || 100 N.m LXM32MC10N4 40 A, 480 V, three phase

Brake Pull-In Power:

40 W

Length:

523 mm

Mounting Support:

international standard flange

Nominal Torque:

76.4 N.m LXM32MC10N4 40 A, 400 V, three phase || 76.4 N.m LXM32MC10N4 40 A, 480 V, three phase

Stator Inductance:

4.74 mH 20 °C

Shaft End:

keyed

Phase:

three phase

Range Compatibility:

Lexium 32

Number Of Motor Poles:

10

Circularity Profile:

N/A

[Us] Rated Supply Voltage:

480 V

Circle Diameter Of The Mounting Holes:

215 mm

Holding Torque:

80 N.m holding brake

Environmental Disclosure:

ENVPEP111049EN

Number Of Mounting Holes:

4

Rohs Exemption Information:

Yes

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Nominal Speed:

2000 rpm LXM32MC10N4 40 A, 400 V, three phase || 2000 rpm LXM32MC10N4 40 A, 480 V, three phase

Product Or Component Type:

servo motor

Motor Flange Size:

190 mm

Continuous Stall Current:

40 A

Device Short Name:

BMH

Key Width:

10 mm

China Rohs Regulation:

X

Net Weight:

64.2 kg

Mercury Free:

Yes

Pvc Free:

Yes

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Nominal Output Power:

16000 W LXM32MC10N4 40 A, 400 V, three phase || 16000 W LXM32MC10N4 40 A, 480 V, three phase

Number Of Motor Stacks:

4

Feedback Type:

multiturn SinCos Hiperface

Stator Electrical Time Constant:

29.6 ms 20 °C

Holding Brake:

with

Electrical Connection:

rotatable right-angled connectors

Shaft Length:

80 mm

Ip Degree Of Protection:

IP65 standard || IP20 with fan module

Maximum Radial Force Fr:

3800 N 1000 rpm || 3700 N 2000 rpm || 3600 N 3000 rpm
