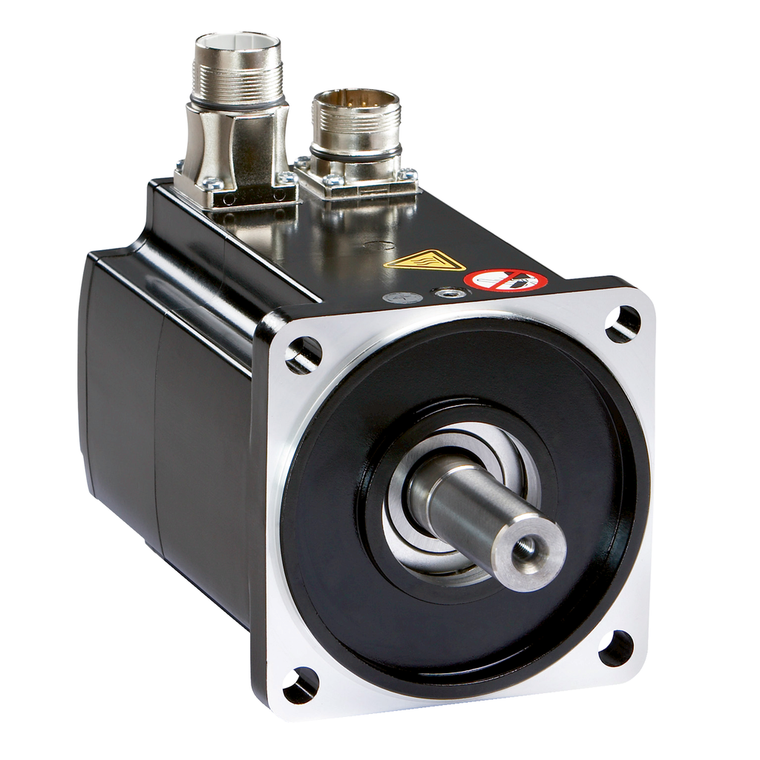

Schneider Electric BMH2053P01A2A Motor 205Mm Iec 88Nm Ip54 9,4Kw No Key
SKU:
BMH2053P01A2A
UPC:
3.60649E+12
MPN:
Condition:
New
Nominal Output Power:
6500 W LXM32.D72N4 24 A, 400 V, three phase || 6500 W LXM32.D72N4 24 A, 480 V, three phase
Range Compatibility:
Lexium 32
Torque Constant:
3.5 N.m/A 120 °C
Continuous Power:
9.6 W
Length:
489 mm
Mounting Holes Diameter:
14 mm
Back Emf Constant:
218 V/krpm 120 °C
Nominal Torque:
52.2 N.m LXM32.D72N4 24 A, 400 V, three phase || 52.2 N.m LXM32.D72N4 24 A, 480 V, three phase
Shaft Length:
80 mm
Environmental Disclosure:
ENVPEP111049EN
Device Short Name:
BMH
Maximum Current Irms:
72 A LXM32.D72N4
Number Of Motor Poles:
10
Feedback Type:
single turn SinCos Hiperface
Second Shaft:
without second shaft end
Speed Feedback Resolution:
131072 points/turn
Peak Stall Torque:
232 N.m LXM32.D72N4 24 A, 400 V, three phase || 232 N.m LXM32.D72N4 24 A, 480 V, three phase
Mercury Free:
Yes
Continuous Stall Current:
25.2 A
Ip Degree Of Protection:
IP54 standard
Sustainable Offer Status:
Green Premium product
Maximum Permanent Current:
107.4 A
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Stator Inductance:
6.9 mH 20 °C
Stator Resistance:
0.32 Ohm 20 °C
Product Compatibility:
LXM32.D72N4 400...480 V three phase
Rohs Exemption Information:
Yes
Circle Diameter Of The Mounting Holes:
215 mm
Centring Collar Depth:
4 mm
[Us] Rated Supply Voltage:
480 V
Stator Electrical Time Constant:
21.6 ms 20 °C
Circularity Profile:
N/A
Number Of Mounting Holes:
4
Maximum Mechanical Speed:
3800 rpm
Electrical Connection:
rotatable right-angled connectors
Phase:
three phase
Maximum Radial Force Fr:
4500 N 1000 rpm || 3570 N 2000 rpm || 3120 N 3000 rpm
Continuous Stall Torque:
84 N.m LXM32.D72N4 24 A, 400 V, three phase || 84 N.m LXM32.D72N4 24 A, 480 V, three phase
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Product Or Component Type:
servo motor
Holding Brake:
without
Pvc Free:
Yes
Mounting Support:
international standard flange
Nominal Speed:
1200 rpm LXM32.D72N4 24 A, 400 V, three phase || 1200 rpm LXM32.D72N4 24 A, 480 V, three phase
Net Weight:
67 kg
Centring Collar Diameter:
180 mm
Shaft Diameter:
38 mm
Maximum Axial Force Fa:
0.2 x Fr
Rotor Inertia:
190 kg.cm²
Warranty:
18 months
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
