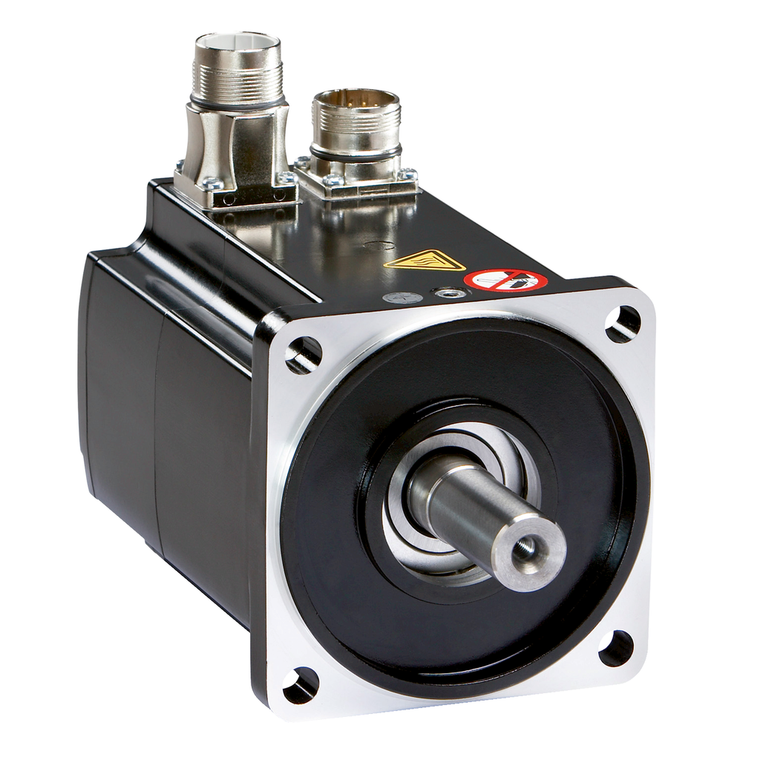

Schneider Electric BMH2053P11A1A Motor 205Mm Iec 88Nm Ip54 9,4Kw Key
SKU:
BMH2053P11A1A
UPC:
3.61E+12
MPN:
Condition:
New
Mounting Support:
international standard flange
Number Of Mounting Holes:
4
Pvc Free:
Yes
Maximum Axial Force Fa:
0.2 x Fr
Length:
489 mm
Number Of Motor Poles:
10
Environmental Disclosure:
ENVPEP111049EN
Holding Brake:
without
Phase:
three phase
Second Shaft:
without second shaft end
[Us] Rated Supply Voltage:
480 V
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Maximum Permanent Current:
107.4 A
Number Of Motor Stacks:
3
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Range Compatibility:
Lexium 32
Continuous Power:
9.6 W
Maximum Radial Force Fr:
4500 N 1000 rpm || 3570 N 2000 rpm || 3120 N 3000 rpm
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Stator Resistance:
0.32 Ohm 20 °C
Peak Stall Torque:
232 N.m LXM32.D72N4 24 A, 400 V, three phase || 232 N.m LXM32.D72N4 24 A, 480 V, three phase
China Rohs Regulation:
X
Centring Collar Diameter:
180 mm
Continuous Stall Torque:
84 N.m LXM32.D72N4 24 A, 400 V, three phase || 84 N.m LXM32.D72N4 24 A, 480 V, three phase
Nominal Torque:
52.2 N.m LXM32.D72N4 24 A, 400 V, three phase || 52.2 N.m LXM32.D72N4 24 A, 480 V, three phase
Warranty:
18 months
Back Emf Constant:
218 V/krpm 120 °C
Device Short Name:
BMH
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Circle Diameter Of The Mounting Holes:
215 mm
Nominal Output Power:
6500 W LXM32.D72N4 24 A, 400 V, three phase || 6500 W LXM32.D72N4 24 A, 480 V, three phase
Torque Constant:
3.5 N.m/A 120 °C
Feedback Type:
single turn SinCos Hiperface
Ip Degree Of Protection:
IP54 standard
Mounting Holes Diameter:
14 mm
Centring Collar Depth:
4 mm
Shaft Length:
80 mm
Circularity Profile:
N/A
Speed Feedback Resolution:
131072 points/turn
Shaft Diameter:
38 mm
Rohs Exemption Information:
Yes
Net Weight:
67 kg
Type Of Cooling:
natural convection
Stator Inductance:
6.9 mH 20 °C
Maximum Current Irms:
72 A LXM32.D72N4
Maximum Mechanical Speed:
3800 rpm
Shaft End:
keyed
Product Or Component Type:
servo motor
Sustainable Offer Status:
Green Premium product
Electrical Connection:
straight connectors
Nominal Speed:
1200 rpm LXM32.D72N4 24 A, 400 V, three phase || 1200 rpm LXM32.D72N4 24 A, 480 V, three phase
