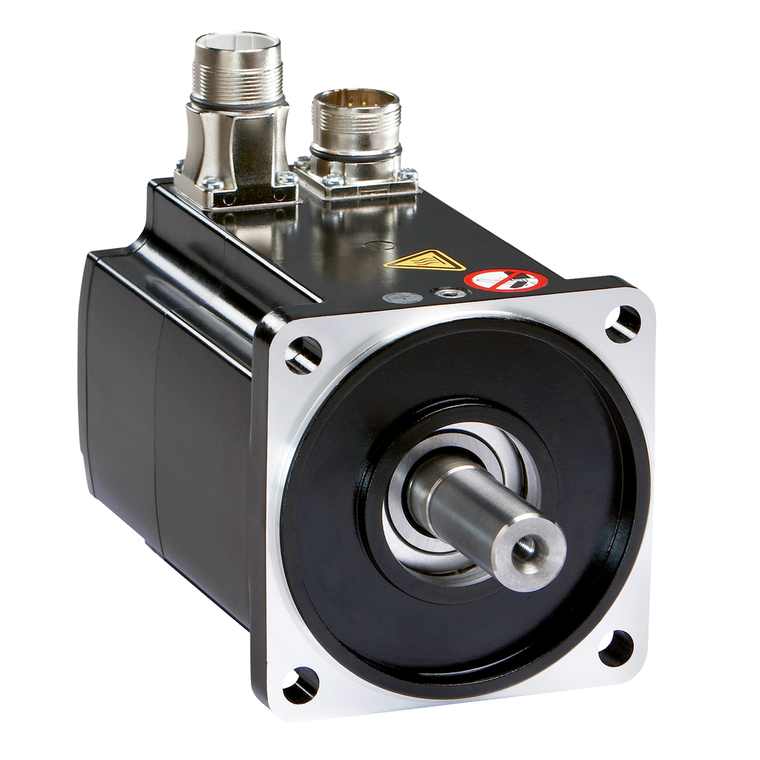

Schneider Electric BMH2053P17F2A Motor 205Mm Iec 88Nm Ip54 9,4Kw Key

SKU:

BMH2053P17F2A

UPC:

3.61E+12

MPN:

Condition:

New

Electrical Connection:

rotatable right-angled connectors

Stator Resistance:

0.32 Ohm 20 °C

China Rohs Regulation:

X

Holding Brake:

with

Speed Feedback Resolution:

32768 points/turn x 4096 turns

Maximum Radial Force Fr:

4500 N 1000 rpm || 3570 N 2000 rpm || 3120 N 3000 rpm

Maximum Axial Force Fa:

0.2 x Fr

Holding Torque:

80 N.m holding brake

Back Emf Constant:

218 V/krpm 120 °C

Phase:

three phase

Length:

538.5 mm

Key Width:

70 mm

Number Of Mounting Holes:

4

Brake Pull-In Power:

40 W

Ip Degree Of Protection:

IP54 standard

Environmental Disclosure:

ENVPEP111049EN

Mercury Free:

Yes

Maximum Current Irms:

72 A LXM32.D72N4

Torque Constant:

3.5 N.m/A 120 °C

Range Compatibility:

Lexium 32

Stator Electrical Time Constant:

21.6 ms 20 °C

Feedback Type:

multiturn SinCos Hiperface

Net Weight:

71.9 kg

Continuous Stall Torque:

84 N.m LXM32.D72N4 24 A, 400 V, three phase || 84 N.m LXM32.D72N4 24 A, 480 V, three phase

Nominal Torque:

52.2 N.m LXM32.D72N4 24 A, 400 V, three phase || 52.2 N.m LXM32.D72N4 24 A, 480 V, three phase

Rotor Inertia:

206 kg.cm²

Sustainable Offer Status:

Green Premium product

Number Of Motor Stacks:

3

Maximum Mechanical Speed:

3800 rpm

Peak Stall Torque:

232 N.m LXM32.D72N4 24 A, 400 V, three phase || 232 N.m LXM32.D72N4 24 A, 480 V, three phase

Motor Flange Size:

205 mm

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Product Or Component Type:

servo motor

Nominal Speed:

1200 rpm LXM32.D72N4 24 A, 400 V, three phase || 1200 rpm LXM32.D72N4 24 A, 480 V, three phase

Shaft Length:

80 mm

Device Short Name:

BMH

Stator Inductance:

6.9 mH 20 °C

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Mounting Support:

international standard flange

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Number Of Motor Poles:

10

Product Compatibility:

LXM32.D72N4 400...480 V three phase

Continuous Power:

9.6 W

Circle Diameter Of The Mounting Holes:

215 mm

Shaft End:

keyed

Rohs Exemption Information:

Yes

[Us] Rated Supply Voltage:

480 V

Centring Collar Diameter:

180 mm

Second Shaft:

without second shaft end

Nominal Output Power:

6500 W LXM32.D72N4 24 A, 400 V, three phase || 6500 W LXM32.D72N4 24 A, 480 V, three phase

Circularity Profile:

N/A

Mounting Holes Diameter:

14 mm

Centring Collar Depth:

4 mm

Type Of Cooling:

natural convection

Shaft Diameter:

38 mm

Maximum Permanent Current:

107.4 A

Continuous Stall Current:

25.2 A

Warranty:

18 months

Pvc Free:

Yes

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Datasheet:

View
