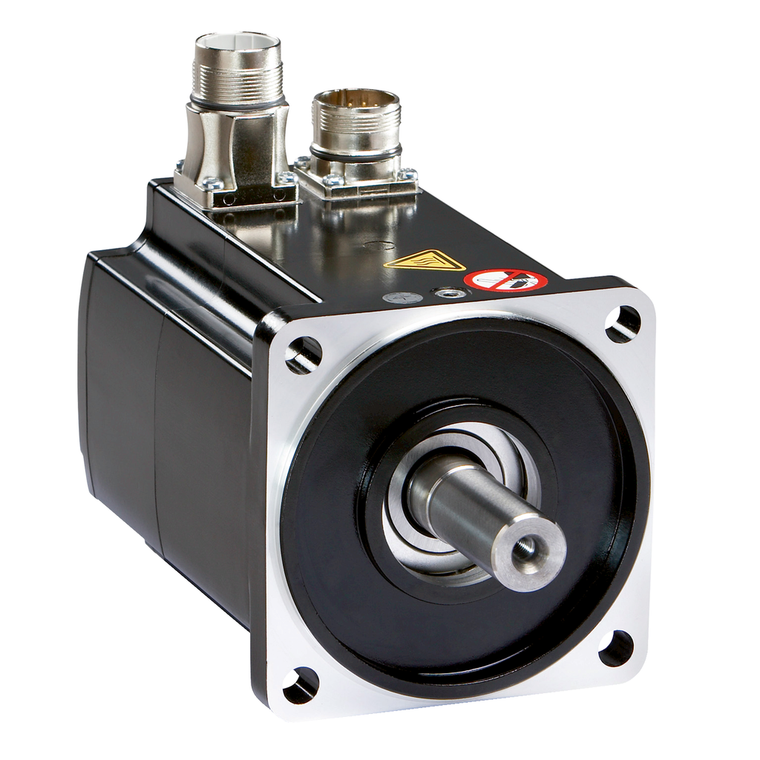

Schneider Electric BMH2053P22A1A Motor 205Mm Iec 88Nm Ip65/67 9,4Kw No
SKU:
BMH2053P22A1A
UPC:
3.61E+12
MPN:
Condition:
New
Sustainable Offer Status:
Green Premium product
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Peak Stall Torque:
232 N.m LXM32.D72N4 24 A, 400 V, three phase || 232 N.m LXM32.D72N4 24 A, 480 V, three phase
Maximum Radial Force Fr:
4500 N 1000 rpm || 3570 N 2000 rpm || 3120 N 3000 rpm
Environmental Disclosure:
ENVPEP111049EN
Mercury Free:
Yes
Second Shaft:
without second shaft end
Net Weight:
67 kg
Torque Constant:
3.5 N.m/A 120 °C
Mounting Support:
international standard flange
Shaft Diameter:
38 mm
Nominal Speed:
1200 rpm LXM32.D72N4 24 A, 400 V, three phase || 1200 rpm LXM32.D72N4 24 A, 480 V, three phase
Ip Degree Of Protection:
IP65 standard || IP67 with IP67 kit
Electrical Connection:
straight connectors
Length:
489 mm
Continuous Stall Current:
25.2 A
Range Compatibility:
Lexium 32
Centring Collar Depth:
4 mm
Centring Collar Diameter:
180 mm
Nominal Torque:
52.2 N.m LXM32.D72N4 24 A, 400 V, three phase || 52.2 N.m LXM32.D72N4 24 A, 480 V, three phase
Product Or Component Type:
servo motor
Number Of Motor Poles:
10
[Us] Rated Supply Voltage:
480 V
Shaft End:
smooth shaft
Continuous Stall Torque:
84 N.m LXM32.D72N4 24 A, 400 V, three phase || 84 N.m LXM32.D72N4 24 A, 480 V, three phase
Maximum Current Irms:
72 A LXM32.D72N4
Circle Diameter Of The Mounting Holes:
215 mm
Maximum Permanent Current:
107.4 A
Continuous Power:
9.6 W
Stator Resistance:
0.32 Ohm 20 °C
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Number Of Motor Stacks:
3
Warranty:
18 months
Maximum Axial Force Fa:
0.2 x Fr
Product Compatibility:
LXM32.D72N4 400...480 V three phase
Shaft Length:
80 mm
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Rohs Exemption Information:
Yes
Circularity Profile:
N/A
Number Of Mounting Holes:
4
Feedback Type:
multiturn SinCos Hiperface
Pvc Free:
Yes
China Rohs Regulation:
X
Device Short Name:
BMH
Speed Feedback Resolution:
131072 points/turn x 4096 turns
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Type Of Cooling:
natural convection
Stator Electrical Time Constant:
21.6 ms 20 °C
Rotor Inertia:
190 kg.cm²
Maximum Mechanical Speed:
3800 rpm
Phase:
three phase
Holding Brake:
without
Motor Flange Size:
205 mm
Back Emf Constant:
218 V/krpm 120 °C
Stator Inductance:
6.9 mH 20 °C
Mounting Holes Diameter:
14 mm
Nominal Output Power:
6500 W LXM32.D72N4 24 A, 400 V, three phase || 6500 W LXM32.D72N4 24 A, 480 V, three phase
