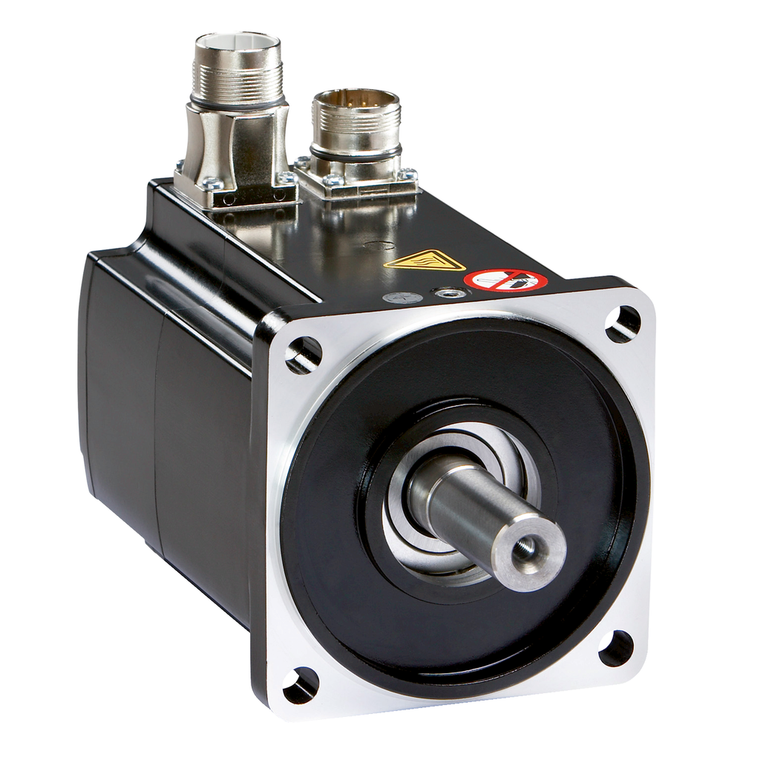

Schneider Electric BMH2053P32F2A Motor 205Mm Iec 88Nm Ip65/67 9,4Kw Key

Schneider Electric BMH2053P32F2A Motor 205Mm Iec 88Nm Ip65/67 9,4Kw Key

Schneider Electric
SKU:
BMH2053P32F2A
|
UPC:
3.60649E+12
$9,063.08
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description
servo motor BMH, Lexium 32, 84Nm, 3800rpm, keyed shaft, with brake, IP65, IP67, 128 multiturn encoder
Additional Information
Circle Diameter Of The Mounting Holes:
215 mm
Sustainable Offer Status:
Green Premium product
Key Width:
70 mm
Feedback Type:
multiturn SinCos Hiperface
Maximum Radial Force Fr:
4500 N 1000 rpm || 3570 N 2000 rpm || 3120 N 3000 rpm
Rohs Exemption Information:
Yes
Nominal Torque:
52.2 N.m LXM32.D72N4 24 A, 400 V, three phase || 52.2 N.m LXM32.D72N4 24 A, 480 V, three phase
Holding Torque:
80 N.m holding brake
Maximum Mechanical Speed:
3800 rpm
Number Of Motor Stacks:
3
Circularity Profile:
N/A
[Us] Rated Supply Voltage:
480 V
Range Compatibility:
Lexium 32
Centring Collar Depth:
4 mm
Number Of Mounting Holes:
4
Ip Degree Of Protection:
IP65 standard || IP67 with IP67 kit
Product Or Component Type:
servo motor
Peak Stall Torque:
232 N.m LXM32.D72N4 24 A, 400 V, three phase || 232 N.m LXM32.D72N4 24 A, 480 V, three phase
China Rohs Regulation:
X
Shaft End:
keyed
Stator Electrical Time Constant:
21.6 ms 20 °C
Holding Brake:
with
Type Of Cooling:
natural convection
Mounting Support:
international standard flange
Warranty:
18 months
Rotor Inertia:
206 kg.cm²
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Stator Inductance:
6.9 mH 20 °C
Back Emf Constant:
218 V/krpm 120 °C
Number Of Motor Poles:
10
Motor Flange Size:
205 mm
Mounting Holes Diameter:
14 mm
Speed Feedback Resolution:
131072 points/turn x 4096 turns
Maximum Current Irms:
72 A LXM32.D72N4
Shaft Diameter:
38 mm
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Nominal Speed:
1200 rpm LXM32.D72N4 24 A, 400 V, three phase || 1200 rpm LXM32.D72N4 24 A, 480 V, three phase
Second Shaft:
without second shaft end
Centring Collar Diameter:
180 mm
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Net Weight:
71.9 kg
Electrical Connection:
rotatable right-angled connectors
Stator Resistance:
0.32 Ohm 20 °C
Phase:
three phase
Length:
538.5 mm
Continuous Power:
9.6 W
Continuous Stall Torque:
84 N.m LXM32.D72N4 24 A, 400 V, three phase || 84 N.m LXM32.D72N4 24 A, 480 V, three phase
Mercury Free:
Yes
Torque Constant:
3.5 N.m/A 120 °C
Device Short Name:
BMH
Maximum Axial Force Fa:
0.2 x Fr
Continuous Stall Current:
25.2 A
Nominal Output Power:
6500 W LXM32.D72N4 24 A, 400 V, three phase || 6500 W LXM32.D72N4 24 A, 480 V, three phase
Shaft Length:
80 mm
Environmental Disclosure:
ENVPEP111049EN
Pvc Free:
Yes
Maximum Permanent Current:
107.4 A
Brake Pull-In Power:
40 W
Product Compatibility:
LXM32.D72N4 400...480 V three phase
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Datasheet:
View
