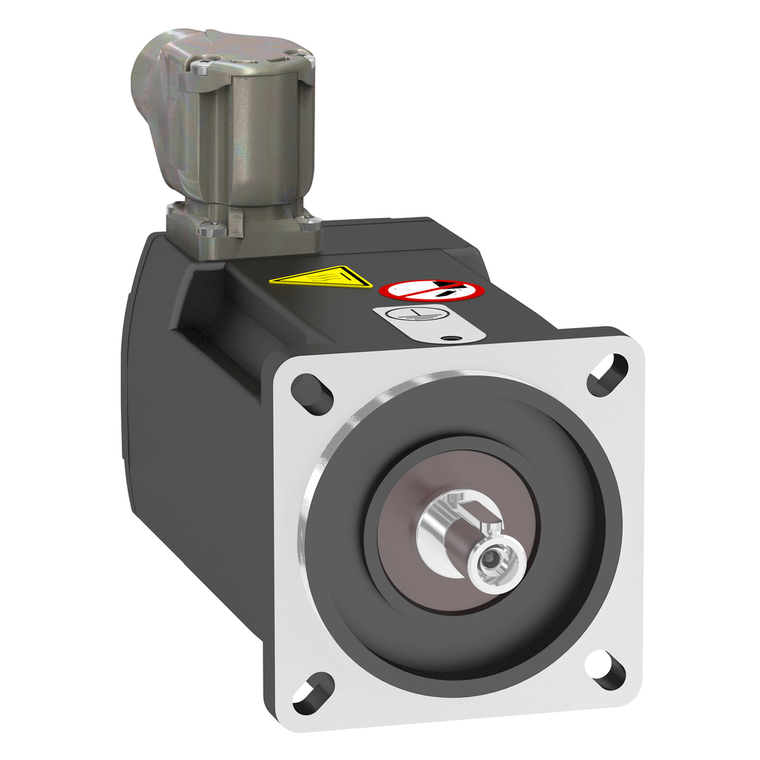

Schneider Electric BMP0702R3NA2A Synchronous Motor 230Vac 0,55Kw Ip65 Iec

(No reviews yet) Write a Review

Write a Review

Schneider Electric

Schneider Electric BMP0702R3NA2A Synchronous Motor 230Vac 0,55Kw Ip65 Iec

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

BMP0702R3NA2A

UPC:

3606480564413

MPN:

Condition:

New

Maximum Operating Frequency:

300 Hz ATV32 0.55 kW 200 V single phase || 300 Hz ATV320 0.55 kW 200 V single phase

Shaft End:

keyed

Phase:

single phase

Product Or Component Type:

synchronous motor

Circle Diameter Of The Mounting Holes:

75-82 mm

Device Short Name:

BMP

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Torque Constant:

0.84 N.m/A 40 °C

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Length:

154 mm

Number Of Motor Poles:

5

China Rohs Regulation:

X

Maximum Radial Force Fr:

710 N 1000 rpm || 560 N 2000 rpm || 490 N 3000 rpm || 450 N 4000 rpm

Key Width:

4 mm

[Us] Rated Supply Voltage:

230 V

Maximum Mechanical Speed:

3600 rpm

Nominal Torque:

1.75 N.m ATV32 0.55 kW 200 V single phase || 1.75 N.m ATV320 0.55 kW 200 V single phase

Stator Inductance:

6.45 mH for q-axis winding 40 °C || 6.45 mH for d-axis winding 40 °C

Net Weight:

1.8 kg

Holding Brake:

without

Nominal Output Power:

550 W ATV32 0.55 kW 200 V single phase || 550 W ATV320 0.55 kW 200 V single phase

Range Compatibility:

Altivar 32 || Altivar Machine ATV320

Pvc Free:

Yes

Product Compatibility:

variable speed drive ATV32 0.55 kW 200 V single phase || variable speed drive ATV320 0.55 kW 200...240 V single phase

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Mounting Support:

international standard flange

Number Of Motor Stacks:

2

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Ip Degree Of Protection:

IP65 standard || IP67 with IP67 kit

Centring Collar Depth:

2.5 mm

Rohs Exemption Information:

Yes

Minimum Operating Frequency:

25 Hz ATV32 0.55 kW 200 V single phase || 25 Hz ATV320 0.55 kW 200 V single phase

Number Of Mounting Holes:

4

Type Of Cooling:

natural convection

Mercury Free:

Yes

Stator Resistance:

2.19 Ohm 40 °C

Maximum Axial Force Fa:

0.2 x Fr

Centring Collar Diameter:

60 mm

Shaft Length:

23 mm

Motor Flange Size:

70 mm

Maximum Current Irms:

5.6 A ATV32 0.55 kW 200 V single phase || 5.6 A ATV320 0.55 kW 200 V single phase

Nominal Speed:

3000 rpm ATV32 0.55 kW 200 V single phase || 3000 rpm ATV320 0.55 kW 200 V single phase

Mounting Holes Diameter:

5.5 mm

Nominal Operating Frequency:

250 Hz ATV32 0.55 kW 200 V single phase || 250 Hz ATV320 0.55 kW 200 V single phase

Rotor Inertia:

1.13 kg.cm²

Warranty:

18 months

Shaft Diameter:

11 mm

Electrical Connection:

rotatable right-angled connector

Datasheet:

View
