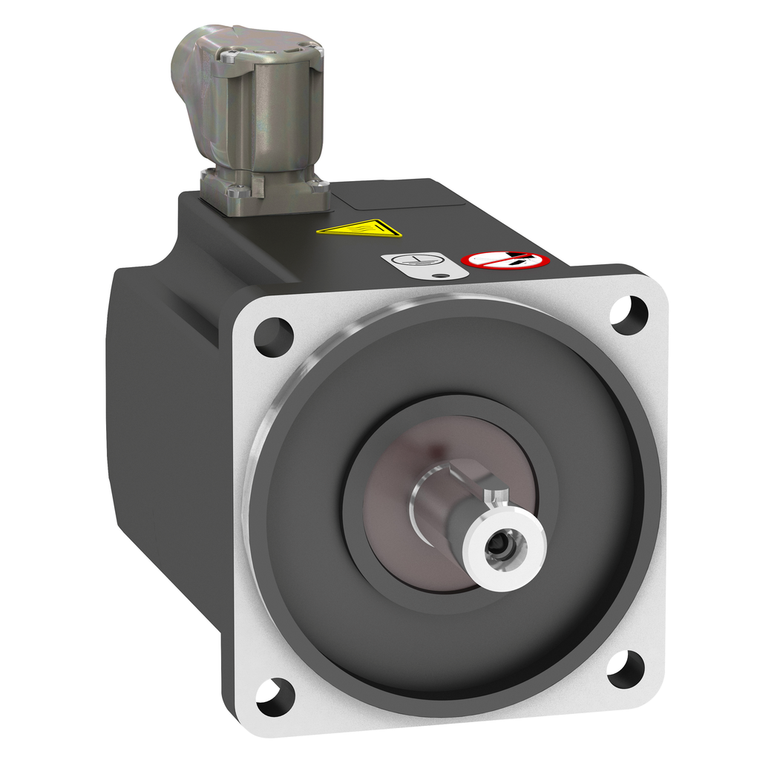

Schneider Electric BMP1001F3NA2A Synchronous Motor 480Vac 0,95Kw Ip65 Iec

SKU:

BMP1001F3NA2A

UPC:

3606480564420

MPN:

Condition:

New

Centring Collar Diameter:

95 mm

Type Of Cooling:

natural convection

China Rohs Regulation:

X

Device Short Name:

BMP

Nominal Output Power:

750 W ATV32 0.75 kW 400 V three phase || 750 W ATV32 1.1 kW 400 V three phase || 750 W ATV320 0.75 kW 400 V three phase || 750 W ATV320 1.1 kW 400 V three phase

Product Compatibility:

variable speed drive ATV32 0.75 kW 400 V three phase || variable speed drive ATV32 1.1 kW 400 V three phase || variable speed drive ATV320 0.75 kW 380...500 V three phase || variable speed drive ATV320 1.1 kW 380...500 V three phase

Nominal Speed:

3000 rpm ATV32 0.75 kW 400 V three phase || 3000 rpm ATV32 1.1 kW 400 V three phase || 3000 rpm ATV320 0.75 kW 400 V three phase || 3000 rpm ATV320 1.1 kW 400 V three phase

Torque Constant:

1.71 N.m/A 40 °C

Stator Inductance:

15.3 mH for q-axis winding 40 °C || 13.28 mH for d-axis winding 40 °C

Product Or Component Type:

synchronous motor

Number Of Mounting Holes:

4

Motor Flange Size:

100 mm

Length:

128.6 mm

Maximum Operating Frequency:

300 Hz ATV32 0.75 kW 400 V three phase || 300 Hz ATV32 1.1 kW 400 V three phase || 300 Hz ATV320 0.75 kW 400 V three phase || 300 Hz ATV320 1.1 kW 400 V three phase

Number Of Motor Poles:

5

Holding Brake:

without

Mounting Support:

international standard flange

Net Weight:

3.34 kg

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Nominal Torque:

2.39 N.m ATV32 0.75 kW 400 V three phase || 2.39 N.m ATV32 1.1 kW 400 V three phase || 2.39 N.m ATV320 0.75 kW 400 V three phase || 2.39 N.m ATV320 1.1 kW 400 V three phase

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Shaft Diameter:

19 mm

[Us] Rated Supply Voltage:

480 V

Circle Diameter Of The Mounting Holes:

115-115 mm

Maximum Axial Force Fa:

0.2 x Fr

Shaft End:

keyed

Rotor Inertia:

3.19 kg.cm²

Stator Resistance:

4.54 Ohm 40 °C

Phase:

three phase

Minimum Operating Frequency:

25 Hz ATV32 0.75 kW 400 V three phase || 25 Hz ATV32 1.1 kW 400 V three phase || 25 Hz ATV320 0.75 kW 400 V three phase || 25 Hz ATV320 1.1 kW 400 V three phase

Electrical Connection:

rotatable right-angled connector

Warranty:

18 months

Key Width:

6 mm

Nominal Operating Frequency:

250 Hz ATV32 0.75 kW 400 V three phase || 250 Hz ATV32 1.1 kW 400 V three phase || 250 Hz ATV320 0.75 kW 400 V three phase || 250 Hz ATV320 1.1 kW 400 V three phase

Shaft Length:

40 mm

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Range Compatibility:

Altivar 32 || Altivar Machine ATV320

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Centring Collar Depth:

3.5 mm

Mercury Free:

Yes

Ip Degree Of Protection:

IP65 standard || IP67 with IP67 kit

Maximum Radial Force Fr:

900 N 1000 rpm || 720 N 2000 rpm || 630 N 3000 rpm || 570 N 4000 rpm

Pvc Free:

Yes

Rohs Exemption Information:

Yes

Maximum Current Irms:

3.5 A ATV32 0.75 kW 400 V three phase || 4.5 A ATV32 1.1 kW 400 V three phase || 3.5 A ATV320 0.75 kW 400 V three phase || 4.5 A ATV320 1.1 kW 400 V three phase

Mounting Holes Diameter:

9 mm

Maximum Mechanical Speed:

3600 rpm

Number Of Motor Stacks:

1

Datasheet:

View
