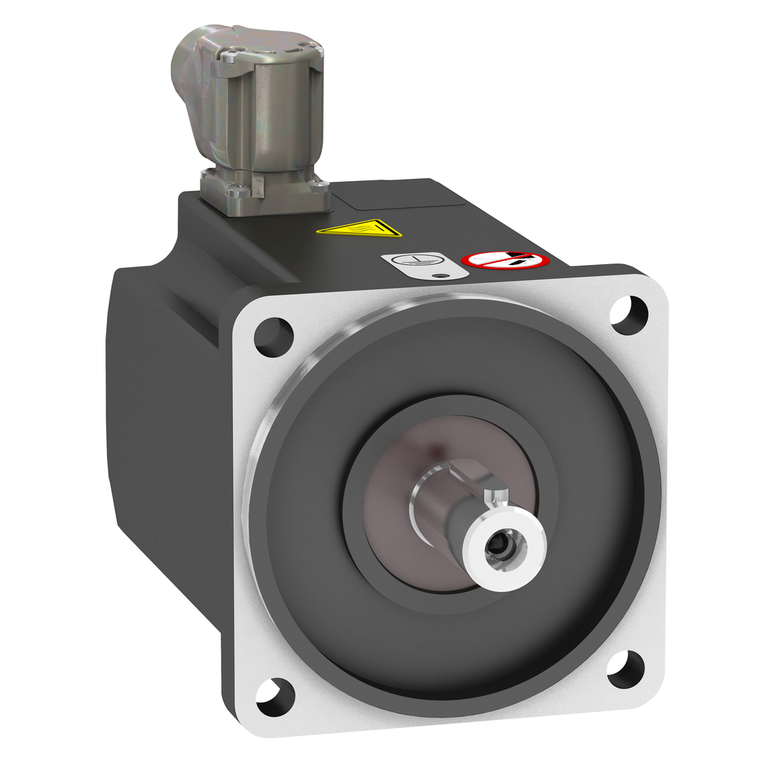

Schneider Electric BMP1001R3NA2A Synchronous Motor 230Vac 0,75Kw Ip65 Iec

Schneider Electric BMP1001R3NA2A Synchronous Motor 230Vac 0,75Kw Ip65 Iec

Schneider Electric
SKU:
BMP1001R3NA2A
|
UPC:
3606480564437
$829.83
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description
synchronous motor - BMP - 230 VAC - 0.75 kW - IP65 - IEC
Additional Information
Product Or Component Type:
synchronous motor
Maximum Current Irms:
7.2 A ATV32 0.75 kW 200 V single phase || 7.2 A ATV320 0.75 kW 200 V single phase
China Rohs Regulation:
X
Number Of Mounting Holes:
4
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Shaft Length:
40 mm
Maximum Axial Force Fa:
0.2 x Fr
Motor Flange Size:
100 mm
Mounting Holes Diameter:
9 mm
Mercury Free:
Yes
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Range Compatibility:
Altivar 32 || Altivar Machine ATV320
Electrical Connection:
rotatable right-angled connector
Stator Resistance:
1.28 Ohm 40 °C
Key Width:
6 mm
Pvc Free:
Yes
Nominal Output Power:
750 W ATV32 0.75 kW 200 V single phase || 750 W ATV320 0.75 kW 200 V single phase
Centring Collar Diameter:
95 mm
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Stator Inductance:
4.08 mH for q-axis winding 40 °C || 3.54 mH for d-axis winding 40 °C
Number Of Motor Stacks:
1
Type Of Cooling:
natural convection
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Centring Collar Depth:
3.5 mm
Rotor Inertia:
3.19 kg.cm²
Net Weight:
3.34 kg
Maximum Radial Force Fr:
900 N 1000 rpm || 720 N 2000 rpm || 630 N 3000 rpm || 570 N 4000 rpm
Length:
128.6 mm
Maximum Operating Frequency:
300 Hz ATV32 0.75 kW 200 V single phase || 300 Hz ATV320 0.75 kW 200 V single phase
Ip Degree Of Protection:
IP65 standard || IP67 with IP67 kit
Shaft End:
keyed
Nominal Operating Frequency:
250 Hz ATV32 0.75 kW 200 V single phase || 250 Hz ATV320 0.75 kW 200 V single phase
Device Short Name:
BMP
Nominal Speed:
3000 rpm ATV32 0.75 kW 200 V single phase || 3000 rpm ATV320 0.75 kW 200 V single phase
Rohs Exemption Information:
Yes
Product Compatibility:
variable speed drive ATV32 0.75 kW 200 V single phase || variable speed drive ATV320 0.75 kW 200...240 V single phase
Nominal Torque:
2.39 N.m ATV32 0.75 kW 200 V single phase || 2.39 N.m ATV320 0.75 kW 200 V single phase
[Us] Rated Supply Voltage:
230 V
Warranty:
18 months
Minimum Operating Frequency:
25 Hz ATV32 0.75 kW 200 V single phase || 25 Hz ATV320 0.75 kW 200 V single phase
Torque Constant:
0.884 N.m/A 40 °C
Maximum Mechanical Speed:
3600 rpm
Shaft Diameter:
19 mm
Number Of Motor Poles:
5
Mounting Support:
international standard flange
Phase:
single phase
Holding Brake:
without
Circle Diameter Of The Mounting Holes:
115-115 mm
