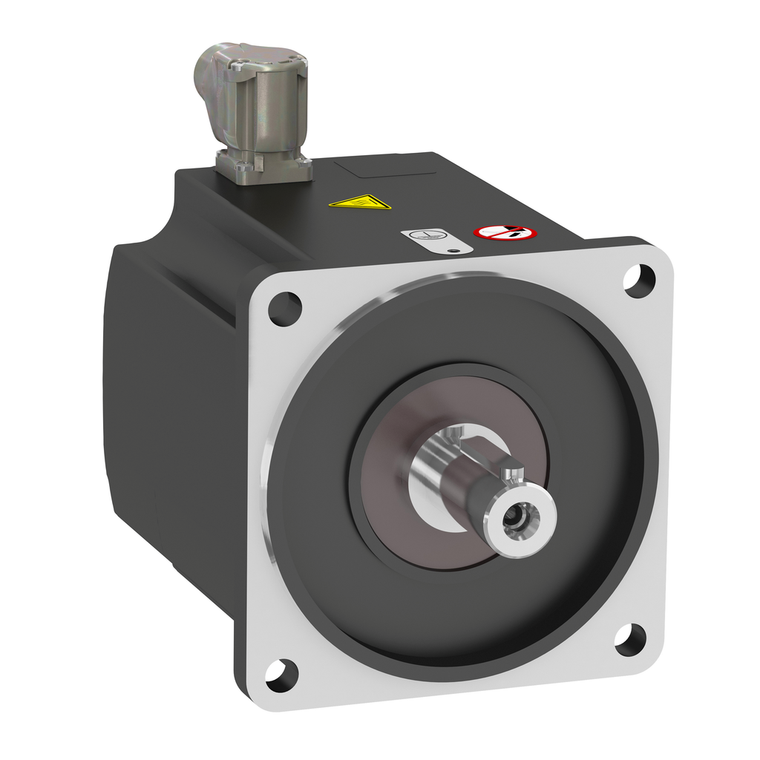

Schneider Electric BMP1402F3NA2A Synchronous Motor 480Vac 3,95Kw Ip65 Iec
SKU:
BMP1402F3NA2A
UPC:
3606480564505
MPN:
Condition:
New
Rotor Inertia:
32 kg.cm²
Shaft Diameter:
24 mm
Mounting Holes Diameter:
11 mm
Stator Inductance:
4.23 mH for q-axis winding 40 °C || 3.78 mH for d-axis winding 40 °C
Product Or Component Type:
synchronous motor
Nominal Output Power:
3000 W ATV32 3 kW 400 V three phase || 3000 W ATV32 4 kW 400 V three phase || 2200 W ATV32 2.2 kW 200 V single phase || 3000 W ATV320 3 kW 400 V three phase || 3000 W ATV320 4 kW 400 V three phase || 2200 W ATV320 2.2 kW 200 V single phase
Nominal Speed:
1500 rpm ATV32 2.2 kW 200 V single phase || 3000 rpm ATV32 3 kW 400 V three phase || 3000 rpm ATV32 4 kW 400 V three phase || 1500 rpm ATV320 2.2 kW 200 V single phase || 3000 rpm ATV320 3 kW 400 V three phase || 3000 rpm ATV320 4 kW 400 V three phas
Maximum Axial Force Fa:
0.2 x Fr
Device Short Name:
BMP
Minimum Operating Frequency:
13 Hz ATV32 2.2 kW 200 V single phase || 25 Hz ATV32 3 kW 400 V three phase || 25 Hz ATV32 4 kW 400 V three phase || 13 Hz ATV320 2.2 kW 200 V single phase || 25 Hz ATV320 3 kW 400 V three phase || 25 Hz ATV320 4 kW 400 V three phase
Type Of Cooling:
natural convection
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Motor Flange Size:
140 mm
Rohs Exemption Information:
Yes
Number Of Motor Poles:
5
Warranty:
18 months
Range Compatibility:
Altivar Machine ATV320 || Altivar 32
Maximum Current Irms:
16.5 A ATV32 2.2 kW 200 V single phase || 10.7 A ATV32 3 kW 400 V three phase || 14.3 A ATV32 4 kW 400 V three phase || 16.5 A ATV320 2.2 kW 200 V single phase || 10.7 A ATV320 3 kW 400 V three phase || 14.3 A ATV320 4 kW 400 V three phase
Number Of Mounting Holes:
4
Net Weight:
12 kg
Number Of Motor Stacks:
2
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Holding Brake:
without
Torque Constant:
1.48 N.m/A 40 °C
Centring Collar Diameter:
130 mm
Maximum Radial Force Fr:
2240 N 1000 rpm || 1780 N 2000 rpm || 1550 N 3000 rpm
Key Width:
8 mm
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Pvc Free:
Yes
Mercury Free:
Yes
Shaft Length:
50 mm
Nominal Torque:
14.01 N.m ATV32 2.2 kW 200 V single phase || 9.55 N.m ATV32 3 kW 400 V three phase || 9.55 N.m ATV32 4 kW 400 V three phase || 14.01 N.m ATV320 2.2 kW 200 V single phase || 9.55 N.m ATV320 3 kW 400 V three phase || 9.55 N.m ATV320 4 kW 400 V three ph
Mounting Support:
international standard flange
[Us] Rated Supply Voltage:
480 V
Circle Diameter Of The Mounting Holes:
165-165 mm
Shaft End:
keyed
Maximum Operating Frequency:
150 Hz ATV32 2.2 kW 200 V single phase || 300 Hz ATV32 3 kW 400 V three phase || 300 Hz ATV32 4 kW 400 V three phase || 150 Hz ATV320 2.2 kW 200 V single phase || 300 Hz ATV320 3 kW 400 V three phase || 300 Hz ATV320 4 kW 400 V three phase
Phase:
three phase
China Rohs Regulation:
X
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Maximum Mechanical Speed:
3600 rpm
Centring Collar Depth:
3.5 mm
Nominal Operating Frequency:
125 Hz ATV32 2.2 kW 200 V single phase || 250 Hz ATV32 3 kW 400 V three phase || 250 Hz ATV32 4 kW 400 V three phase || 125 Hz ATV320 2.2 kW 200 V single phase || 250 Hz ATV320 3 kW 400 V three phase || 250 Hz ATV320 4 kW 400 V three phase
Stator Resistance:
0.34 Ohm 40 °C
Electrical Connection:
rotatable right-angled connector
Product Compatibility:
variable speed drive ATV32 2.2 kW 200 V single phase || variable speed drive ATV32 3 kW 400 V three phase || variable speed drive ATV32 4 kW 400 V three phase || variable speed drive ATV320 2.2 kW 200...240 V single phase || variable speed drive ATV3
