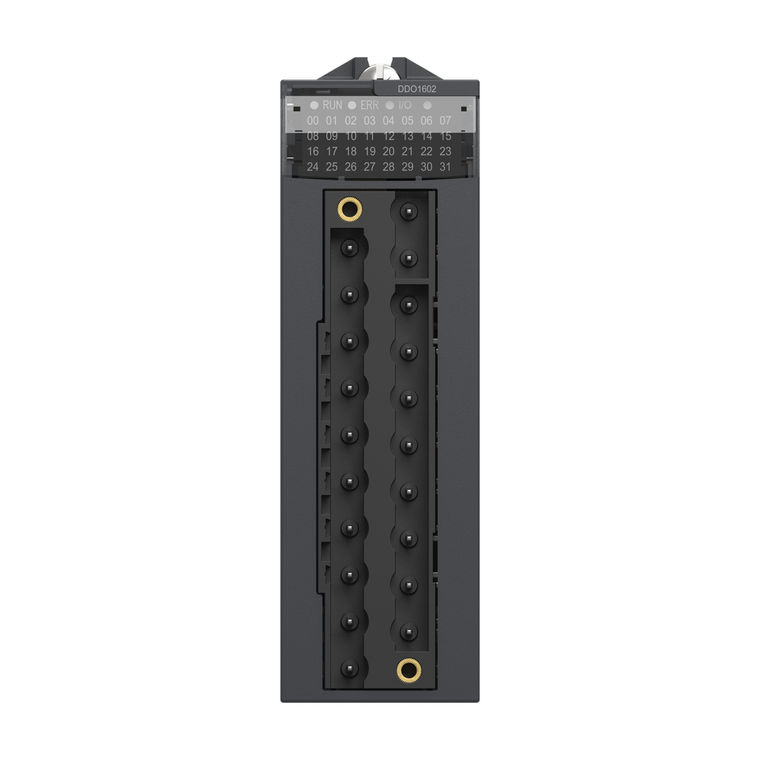

Schneider Electric BMXDDO1602 Dig 16Q Trans Source 0.5A

Schneider Electric BMXDDO1602 Dig 16Q Trans Source 0.5A

Schneider Electric
SKU:
BMXDDO1602
|
UPC:
3595863910469
Availability:
Contact us to confirm availability and lead times.
$426.25
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
This discrete output module is part of the Modicon X80 modules. It has 16 transistor protected outputs, 24V DC. This module is connected via 20-way removable terminal block. It occupies a single slot on the rack and it has a case which provides IP 20 protection of the electronics.
Additional Information
Discrete Output Voltage:
24 V 19...30 V DC
Rohs Exemption Information:
Yes
Maximum Leakage Current:
0.5 mA at state 0
Discrete Output Number:
16 EN/IEC 61131-2
Response Time On Output:
1.2 ms
Output Overvoltage Protection:
with transil diode
Mtbf Reliability:
410000 H
Relative Humidity:
5-95 % 55-55 °C without condensation
Directives:
2014/35/EU - low voltage directive || 2014/30/EU - electromagnetic compatibility
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Output Overload Protection:
with electronic circuit breaker 1.5 In < Id < 2 In || with current limiter
Output Short-Circuit Protection:
with 2 A external fuse
Protection Type:
external fuse reverse polarity protection || short-circuit protection || overload protection || overvoltage protection
Insulation Resistance:
> 10 MOhm 500 V DC
Maximum Tungsten Load:
6 W
Mercury Free:
Yes
Current Per Channel:
0.625 A
Operating Altitude:
0...6561.68 ft (0...2000 m) || 2000...5000 m with derating factor
Dielectric Strength:
1500 V AC 50/60 Hz 1 minute, output/ground || 1500 V AC 50/60 Hz 1 minute, output/internal logic
Discrete Output Type:
solid state
Net Weight:
0.12 kg
Product Or Component Type:
discrete output module
Status Led:
1 LED (Green) module operating (RUN) || 1 LED per channel (Green) channel diagnostic || 1 LED (Red) module error (ERR) || 1 LED (Red) module I/O
Maximum Voltage Drop:
<1.2 V at state 1
Voltage Detection Threshold:
< 14 V DC preactuator fault || > 18 V DC preactuator at state 0
Discrete Output Current:
0.5 A
Ambient Air Temperature For Storage:
-40-85 °C
Range Of Product:
Modicon X80
Paralleling Of Outputs:
yes : 2 maximum
Typical Current Consumption:
79 mA 3.3 V DC
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Vibration Resistance:
3 gn
Load Impedance Ohmic:
> 48 Ohm
Power Dissipation In W:
4 W
Ambient Air Temperature For Operation:
0-60 °C
Reverse Polarity Protection:
reverse mounted diode
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Maximum Current Per Module:
0.416666666666667
China Rohs Regulation:
X
Warranty:
18 months
Shock Resistance:
30 gn
Switching Frequency:
0.5/LI² Hz
Ip Degree Of Protection:
IP20
Discrete Output Logic:
positive
