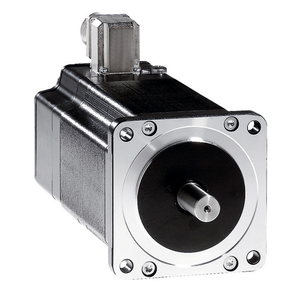

Schneider Electric BRS397W571ACA Lexium Stepper Motor, Size 90, 2.26 Nm,

SKU:

BRS397W571ACA

UPC:

3.38912E+12

MPN:

Condition:

New

Number Of Mounting Holes:

4

Rotor Inertia:

1.1 kg.cm²

Resolution:

1000 points/turn || 1.8 °, 0.9 °, 0.72 °, 0.36 °, 0.18 °, 0.09 °, 0.072 °, 0.036 ° step angle || 200, 400, 500, 1000, 2000, 4000, 5000, 10000 steps number of full steps per revolution

Range Compatibility:

Lexium SD3

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Line Rated Current:

1.75 A

Shaft Length:

30 mm

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Device Short Name:

BRS3

Net Weight:

2.1 kg

Length:

111 mm

Motor Type:

3-phase stepper motor

Sustainable Offer Status:

Green Premium product

Maximum Radial Force Fr:

100 N first shaft end) || 50 N second shaft end)

Time Constant:

7 ms

Temperature Class:

F winding IEC/EN 60034-1

Holding Brake:

without

Continuous Stall Torque:

1.9 N.m

Mounting Holes Diameter:

6.5 mm

Environmental Disclosure:

ENVPEP111101EN

Mounting Support:

flange

Electrical Connection:

connector

Type Of Cooling:

natural convection

Centring Collar Diameter:

73 mm

Maximum Mechanical Speed:

3000 rpm

Operating Altitude:

<= 3280.84 ft (1000 m) without power derating

Vibration Resistance:

20 m/s² maximum || A EN/IEC 60034-14

Speed Feedback Resolution:

10000 points/turn

Shaft Diameter:

9.5 mm

Ambient Air Temperature For Operation:

-25-40 °C

Maximum Axial Force Fa:

175 N tensile force) || 30 N force pressure)

Resistance:

6.5 Ohm winding)

Second Shaft:

without second shaft end

China Rohs Regulation:

X

Service Life In Hours:

20000 h bearing)

Motor Flange Size:

85 mm

Ambient Air Temperature For Storage:

-25-70 °C

Ip Degree Of Protection:

shaft bushing IP41 EN/IEC 60034-5 || total except shaft bushing IP56 EN/IEC 60034-5

Peak Stall Torque:

1.9 N.m

Angular Acceleration:

200000 rad/s²

Circle Diameter Of The Mounting Holes:

98.99 mm

Nominal Torque:

2 N.m

Feedback Type:

single turn encoder

Centring Collar Depth:

2 mm

Relative Humidity:

15-85 % without condensation

Number Of Motor Poles:

6

Supply Voltage Limits:

230-230 V AC || 325-325 V DC

Holding Torque:

2.26 N.m

Product Or Component Type:

motion control motor

Circularity Profile:

N/A

Rohs Exemption Information:

Yes

Maximum Starting Frequency:

5.3 kHz

Accuracy Error:

+/- 6 arc min

Warranty:

18 months

Shaft End:

woodruff key

Mercury Free:

Yes

Standards:

IEC 60072-1 || EN 50347
