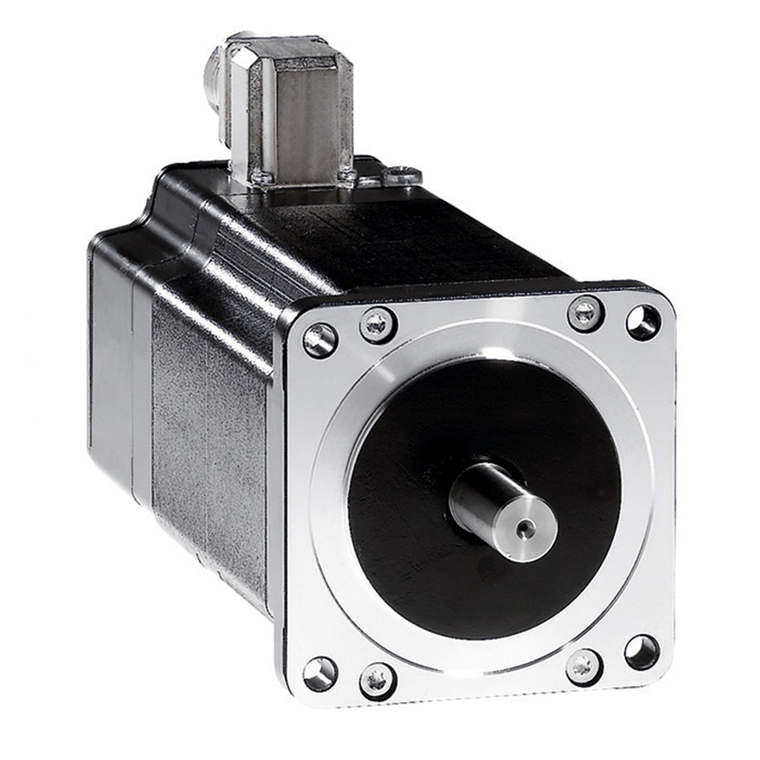

Schneider Electric BRS397WA70ABA Lexium Stepper Motor, Size 90, 2.26 Nm,

SKU:

BRS397WA70ABA

UPC:

3389119223607

MPN:

Condition:

New

Circularity Profile:

N/A

Peak Stall Torque:

1.9 N.m

Supply Voltage Limits:

230-230 V AC || 325-325 V DC

Ambient Air Temperature For Operation:

-25-40 °C

Accuracy Error:

+/- 6 arc min

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Vibration Resistance:

20 m/s² maximum || A IEC 60034-14

Shaft Length:

30 mm

Nominal Torque:

2 N.m

Mounting Holes Diameter:

6.5 mm

Rohs Exemption Information:

Yes

Ip Degree Of Protection:

shaft bushing IP56 IEC 60034-5 || total except shaft bushing IP56 IEC 60034-5

Maximum Axial Force Fa:

175 N tensile force) || 30 N force pressure)

Service Life In Hours:

20000 h bearing)

Angular Acceleration:

200000 rad/s²

Holding Torque:

2.26 N.m

Operating Altitude:

<= 3280.84 ft (1000 m) without power derating

Environmental Disclosure:

ENVPEP111101EN

Maximum Mechanical Speed:

3000 rpm

Centring Collar Diameter:

73 mm

Motor Type:

3-phase stepper motor

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Mounting Support:

flange

Holding Brake:

without

Maximum Radial Force Fr:

100 N first shaft end) || 50 N second shaft end)

Electrical Connection:

terminal box

Net Weight:

2.1 kg

Relative Humidity:

15-85 % without condensation

Shaft Diameter:

9.5 mm

China Rohs Regulation:

X

Pvc Free:

Yes

Shaft End:

untapped

Length:

111 mm

Time Constant:

7 ms

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Sustainable Offer Status:

Green Premium product

Number Of Motor Poles:

6

Second Shaft:

without second shaft end

Device Short Name:

BRS3

Motor Flange Size:

85 mm

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Type Of Cooling:

natural convection

Product Or Component Type:

motion control motor

Temperature Class:

F winding IEC 60034-1

Mercury Free:

Yes

Warranty:

18 months

Continuous Stall Torque:

1.9 N.m

Circle Diameter Of The Mounting Holes:

98.99 mm

Resolution:

1.8 °, 0.9 °, 0.72 °, 0.36 °, 0.18 °, 0.09 °, 0.072 °, 0.036 ° step angle || 200, 400, 500, 1000, 2000, 4000, 5000, 10000 steps number of full steps per revolution

Range Compatibility:

Lexium SD3

Rotor Inertia:

1.1 kg.cm²

Ambient Air Temperature For Storage:

-25-70 °C

Standards:

IEC 60072-1 || IEC 50347

Centring Collar Depth:

2 mm

Maximum Starting Frequency:

5.3 kHz

Number Of Mounting Holes:

4

Resistance:

6.5 Ohm winding)

Line Rated Current:

1.75 A

Catalog:

View

Datasheet:

View
