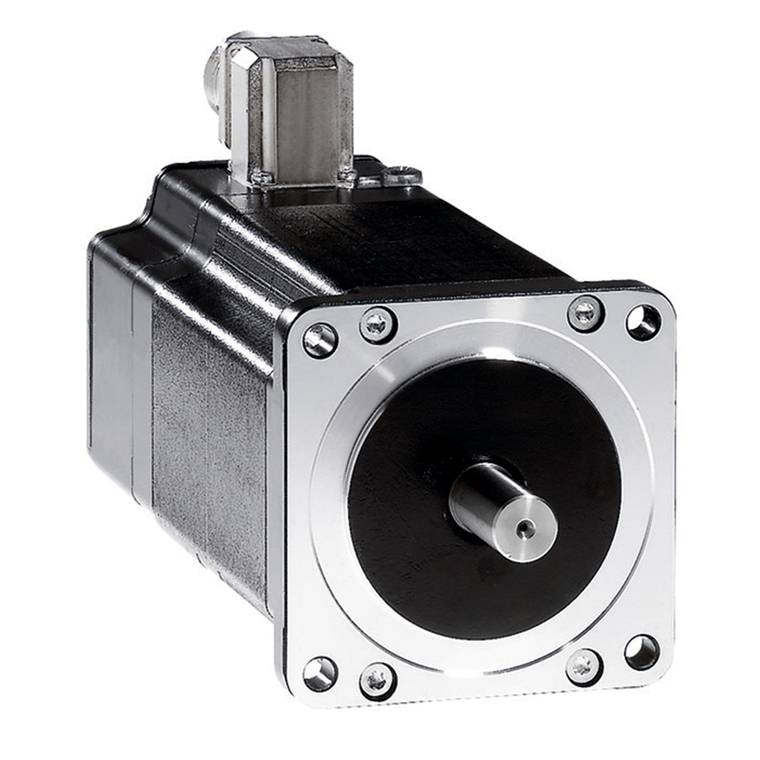

Schneider Electric BRS39AW361ACB Lexium Stepper Motor, Size 90, 4.52 Nm,

SKU:

BRS39AW361ACB

UPC:

3389119223928

MPN:

Condition:

New

Maximum Mechanical Speed:

3000 rpm

Maximum Starting Frequency:

5.3 kHz

Second Shaft:

with second shaft end

Continuous Stall Torque:

3.82 N.m

Mounting Holes Diameter:

6.5 mm

Number Of Mounting Holes:

4

Rotor Inertia:

2.2 kg.cm²

Feedback Type:

single turn encoder

Ambient Air Temperature For Storage:

-25-70 °C

Length:

141 mm

Warranty:

18 months

Net Weight:

3.2 kg

Time Constant:

9 ms

Motor Type:

3-phase stepper motor

Device Short Name:

BRS3

Product Or Component Type:

motion control motor

Holding Brake:

without

Maximum Axial Force Fa:

175 N tensile force) || 30 N force pressure)

Shaft Diameter:

12 mm

Shaft End:

untapped

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Ambient Air Temperature For Operation:

-25-40 °C

Circularity Profile:

N/A

Service Life In Hours:

20000 h bearing)

Speed Feedback Resolution:

10000 points/turn

Vibration Resistance:

20 m/s² maximum || A IEC 60034-14

Environmental Disclosure:

ENVPEP111101EN

Holding Torque:

4.52 N.m

Ip Degree Of Protection:

shaft bushing IP41 IEC 60034-5 || total except shaft bushing IP56 IEC 60034-5

Circle Diameter Of The Mounting Holes:

98.99 mm

Number Of Motor Poles:

6

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Accuracy Error:

+/- 6 arc min

Resistance:

5.8 Ohm winding)

Temperature Class:

F winding IEC 60034-1

Mercury Free:

Yes

Centring Collar Depth:

2 mm

Rohs Exemption Information:

Yes

Range Compatibility:

Lexium SD3

Shaft Length:

30 mm

Nominal Torque:

4 N.m

Resolution:

1000 points/turn || 1.8 °, 0.9 °, 0.72 °, 0.36 °, 0.18 °, 0.09 °, 0.072 °, 0.036 ° step angle || 200, 400, 500, 1000, 2000, 4000, 5000, 10000 steps number of full steps per revolution

Maximum Radial Force Fr:

100 N first shaft end) || 50 N second shaft end)

Relative Humidity:

15-85 % without condensation

Line Rated Current:

0.0833333333333333

Electrical Connection:

connector

Operating Altitude:

<= 3280.84 ft (1000 m) without power derating

Standards:

IEC 60072-1 || IEC 50347

Sustainable Offer Status:

Green Premium product

Centring Collar Diameter:

60 mm

Type Of Cooling:

natural convection

Mounting Support:

flange

Peak Stall Torque:

3.82 N.m

Motor Flange Size:

85 mm

Pvc Free:

Yes

Angular Acceleration:

200000 rad/s²

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

China Rohs Regulation:

X

Supply Voltage Limits:

230-230 V AC || 325-325 V DC
