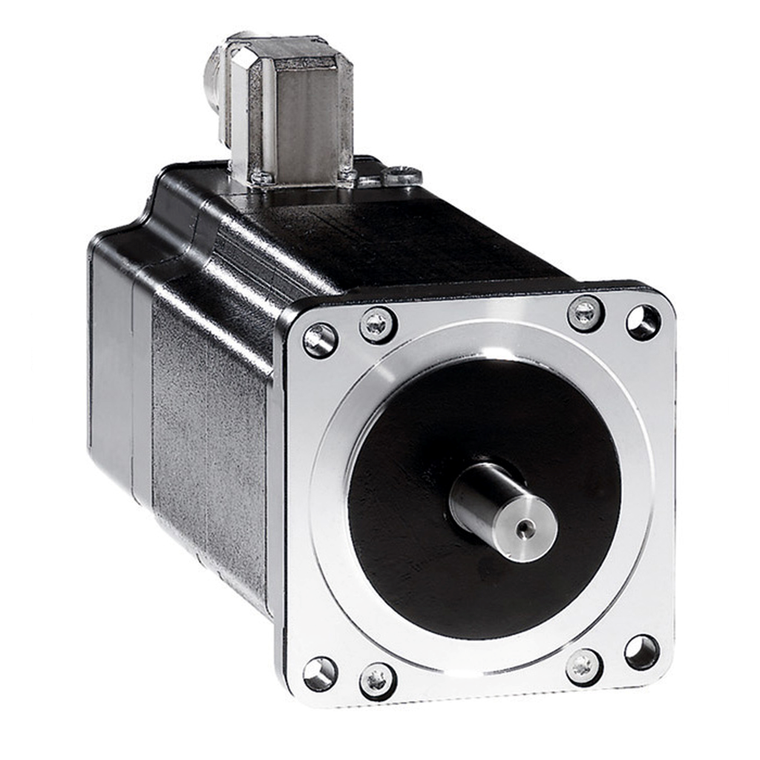

Schneider Electric BRS39BW470FBA Lexium Stepper Motor, Size 90, 6.78 Nm,

(No reviews yet) Write a Review

Write a Review

Schneider Electric BRS39BW470FBA Lexium Stepper Motor, Size 90, 6.78 Nm,

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

BRS39BW470FBA

UPC:

3389119224000

MPN:

Condition:

New

Range Compatibility:

Lexium SD3

Centring Collar Diameter:

73 mm

Time Constant:

10 ms

Device Short Name:

BRS3

Supply Voltage Limits:

230-230 V AC || 325-325 V DC

Continuous Stall Torque:

5.78 N.m

Motor Flange Size:

85 mm

Maximum Axial Force Fa:

175 N tensile force) || 30 N force pressure)

Angular Acceleration:

200000 rad/s²

Ambient Air Temperature For Operation:

-25-40 °C

Product Or Component Type:

motion control motor

China Rohs Regulation:

X

Maximum Radial Force Fr:

110 N first shaft end) || 50 N second shaft end)

Type Of Cooling:

natural convection

Ambient Air Temperature For Storage:

-25-70 °C

Ip Degree Of Protection:

shaft bushing IP41 IEC 60034-5 || total except shaft bushing IP56 IEC 60034-5

Mercury Free:

Yes

Rotor Inertia:

3.3 kg.cm²

Net Weight:

4.3 kg

Warranty:

18 months

Peak Stall Torque:

5.78 N.m

Relative Humidity:

15-85 % without condensation

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Vibration Resistance:

20 m/s² maximum || A IEC 60034-14

Holding Torque:

6.78 N.m

Accuracy Error:

+/- 6 arc min

Shaft Diameter:

14 mm

Number Of Mounting Holes:

4

Maximum Mechanical Speed:

3000 rpm

Length:

217 mm

Rohs Exemption Information:

Yes

Maximum Starting Frequency:

5.3 kHz

Resolution:

1.8 °, 0.9 °, 0.72 °, 0.36 °, 0.18 °, 0.09 °, 0.072 °, 0.036 ° step angle || 200, 400, 500, 1000, 2000, 4000, 5000, 10000 steps number of full steps per revolution

Standards:

IEC 60072-1 || IEC 50347

Shaft End:

untapped

Nominal Torque:

6 N.m

Line Rated Current:

2.25 A

Temperature Class:

F winding IEC 60034-1

Second Shaft:

without second shaft end

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Centring Collar Depth:

2 mm

Operating Altitude:

<= 3280.84 ft (1000 m) without power derating

Environmental Disclosure:

ENVPEP111101EN

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Mounting Support:

flange

Number Of Motor Poles:

6

Holding Brake:

with

Service Life In Hours:

20000 h bearing)

Electrical Connection:

terminal box

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Pvc Free:

Yes

Motor Type:

3-phase stepper motor

Shaft Length:

30 mm

Circularity Profile:

N/A

Sustainable Offer Status:

Green Premium product

Circle Diameter Of The Mounting Holes:

98.99 mm

Mounting Holes Diameter:

6.5 mm

Resistance:

6.5 Ohm winding)
