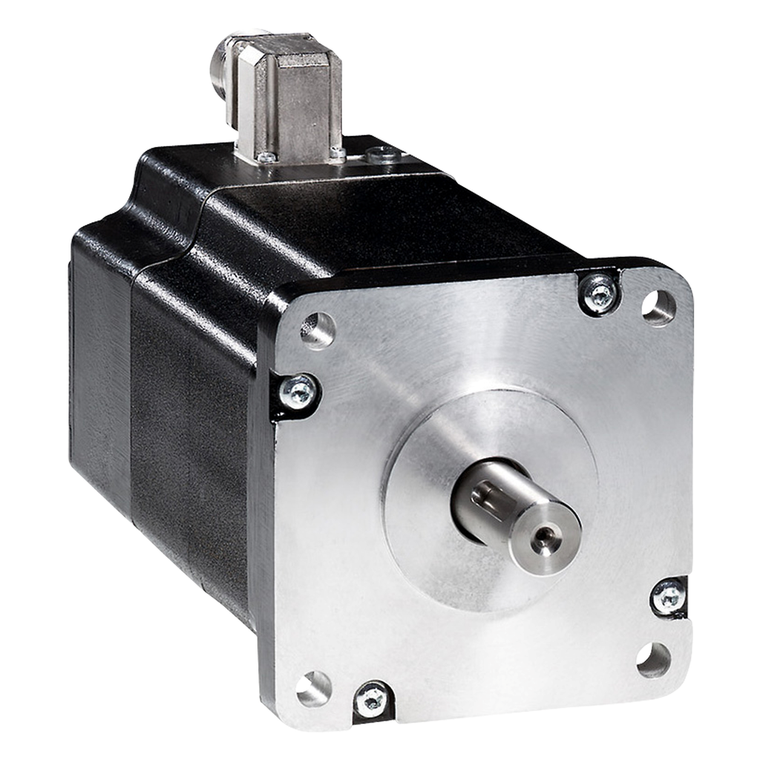

Schneider Electric BRS3ACW850ABB Lexium Stepper Motor, Size 110, 13.5 Nm,

SKU:

BRS3ACW850ABB

UPC:

3389119224161

MPN:

Condition:

New

Centring Collar Depth:

3 mm

Pvc Free:

Yes

Maximum Radial Force Fr:

150 N second shaft end) || 300 N first shaft end)

Sustainable Offer Status:

Green Premium product

Circularity Profile:

N/A

Nominal Torque:

12 N.m

Ambient Air Temperature For Operation:

-25-40 °C

Environmental Disclosure:

ENVPEP111101EN

Number Of Mounting Holes:

4

Angular Acceleration:

200000 rad/s²

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Shaft Diameter:

19 mm

Holding Brake:

without

Maximum Axial Force Fa:

330 N tensile force) || 60 N force pressure)

Supply Voltage Limits:

230-230 V AC || 325-325 V DC

China Rohs Regulation:

X

Time Constant:

22 ms

Rotor Inertia:

10.5 kg.cm²

Warranty:

18 months

Ip Degree Of Protection:

shaft bushing IP41 IEC 60034-5 || total except shaft bushing IP56 IEC 60034-5

Electrical Connection:

terminal box

Resolution:

1.8 °, 0.9 °, 0.72 °, 0.36 °, 0.18 °, 0.09 °, 0.072 °, 0.036 ° step angle || 200, 400, 500, 1000, 2000, 4000, 5000, 10000 steps number of full steps per revolution

Operating Altitude:

<= 3280.84 ft (1000 m) without power derating

Range Compatibility:

Lexium SD3

Rohs Exemption Information:

Yes

Shaft Length:

40 mm

Centring Collar Diameter:

56 mm

Type Of Cooling:

natural convection

Standards:

IEC 50347 || IEC 60072-1

Maximum Mechanical Speed:

3000 rpm

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Mercury Free:

Yes

Service Life In Hours:

20000 h bearing)

Length:

180 mm

Holding Torque:

13.5 N.m

Maximum Starting Frequency:

4.7 kHz

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Second Shaft:

with second shaft end

Device Short Name:

BRS3

Number Of Motor Poles:

6

Temperature Class:

F winding IEC 60034-1

Peak Stall Torque:

11.42 N.m

Vibration Resistance:

20 m/s² maximum || A IEC 60034-14

Relative Humidity:

15-85 % without condensation

Continuous Stall Torque:

11.42 N.m

Shaft End:

parallel key

Circle Diameter Of The Mounting Holes:

125.86 mm

Motor Type:

3-phase stepper motor

Net Weight:

8.2 kg

Motor Flange Size:

110 mm

Mounting Support:

flange

Ambient Air Temperature For Storage:

-25-70 °C

Line Rated Current:

4.1 A

Mounting Holes Diameter:

9 mm

Resistance:

1.8 Ohm winding)

Product Or Component Type:

motion control motor

Accuracy Error:

+/- 6 arc min
