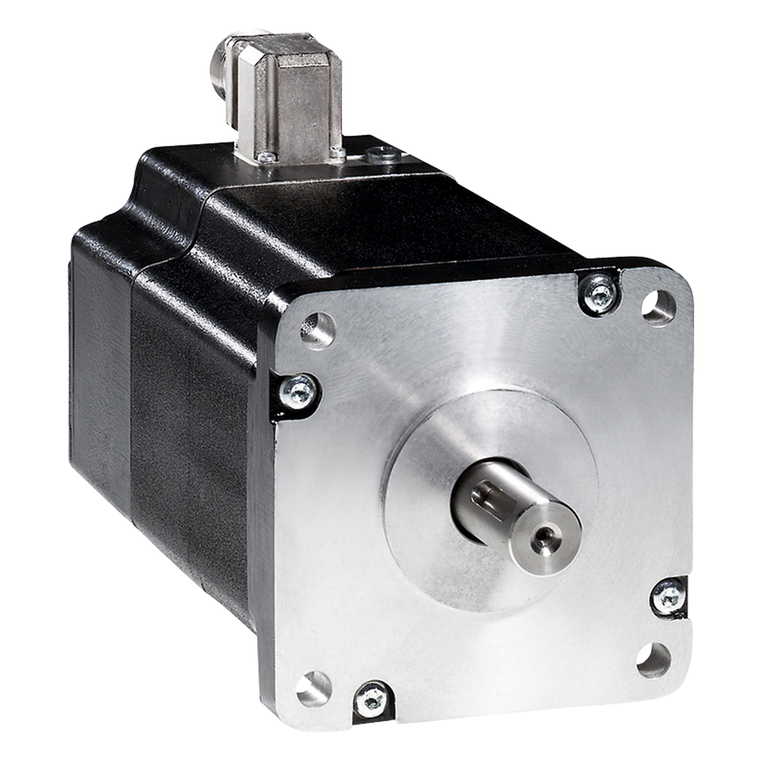

Schneider Electric BRS3ADW850FCA Lexium Stepper Motor, Size 110, 19.7 Nm,

SKU:

BRS3ADW850FCA

UPC:

3389119224277

MPN:

Condition:

New

Service Life In Hours:

20000 h bearing)

Motor Flange Size:

110 mm

Centring Collar Depth:

3 mm

Length:

228 mm

China Rohs Regulation:

X

Rohs Exemption Information:

Yes

Resolution:

1.8 °, 0.9 °, 0.72 °, 0.36 °, 0.18 °, 0.09 °, 0.072 °, 0.036 ° step angle || 200, 400, 500, 1000, 2000, 4000, 5000, 10000 steps number of full steps per revolution

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Circle Diameter Of The Mounting Holes:

125.86 mm

Vibration Resistance:

20 m/s² maximum || A EN/IEC 60034-14

Line Rated Current:

4.75 A

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Number Of Mounting Holes:

4

Accuracy Error:

+/- 6 arc min

Holding Brake:

with

Holding Torque:

19.7 N.m

Nominal Torque:

16.5 N.m

Ambient Air Temperature For Operation:

-25-40 °C

Shaft Length:

40 mm

Number Of Motor Poles:

6

Range Compatibility:

Lexium SD3

Mercury Free:

Yes

Warranty:

18 months

Shaft Diameter:

19 mm

Mounting Support:

flange

Pvc Free:

Yes

Mounting Holes Diameter:

9 mm

Ambient Air Temperature For Storage:

-25-70 °C

Motor Type:

3-phase stepper motor

Operating Altitude:

<= 3280.84 ft (1000 m) without power derating

Maximum Mechanical Speed:

3000 rpm

Standards:

IEC 60072-1 || EN 50347

Circularity Profile:

N/A

Type Of Cooling:

natural convection

Peak Stall Torque:

16.45 N.m

Shaft End:

parallel key

Centring Collar Diameter:

56 mm

Sustainable Offer Status:

Green Premium product

Maximum Axial Force Fa:

330 N tensile force) || 60 N force pressure)

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Electrical Connection:

connector

Time Constant:

22 ms

Continuous Stall Torque:

16.45 N.m

Second Shaft:

without second shaft end

Maximum Radial Force Fr:

150 N second shaft end) || 300 N first shaft end)

Maximum Starting Frequency:

4.7 kHz

Temperature Class:

F winding IEC/EN 60034-1

Resistance:

1.9 Ohm winding)

Environmental Disclosure:

ENVPEP111101EN

Device Short Name:

BRS3

Supply Voltage Limits:

230-230 V AC || 325-325 V DC

Net Weight:

11.2 kg

Relative Humidity:

15-85 % without condensation

Angular Acceleration:

200000 rad/s²

Rotor Inertia:

16 kg.cm²

Ip Degree Of Protection:

shaft bushing IP41 EN/IEC 60034-5 || total except shaft bushing IP56 EN/IEC 60034-5

Product Or Component Type:

motion control motor
