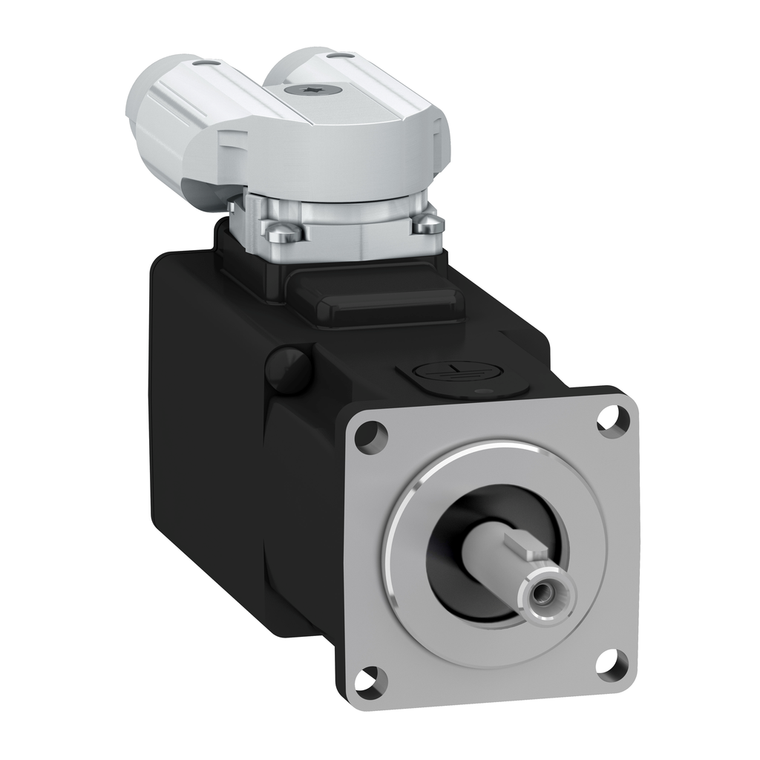

Schneider Electric BSH0401P16F2A Motor 40Mm Iec 0,18Nm 170W Ip50 Key Shaf
SKU:
BSH0401P16F2A
UPC:
3606485467177
MPN:
Condition:
New
Stator Inductance:
14.6 mH 20 °C
Nominal Output Power:
166 W LXM32.U60N4 1.5 A, 480 V, three phase || 166 W LXM32.U60N4 1.5 A, 400 V, three phase || 77 W LXM32.U45M2 1.5 A, 230 V, single phase
Mercury Free:
Yes
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Key Width:
12 mm
Rotor Inertia:
0.04 kg.cm²
Maximum Mechanical Speed:
10000 rpm
Electrical Connection:
rotatable right-angled connectors
Continuous Stall Current:
1.12 A
Back Emf Constant:
13.6 V/krpm 20 °C
Centring Collar Diameter:
30 mm
Shaft Length:
25 mm
Environmental Disclosure:
ENVPEP111049EN
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Feedback Type:
single turn SinCos Hiperface
Mounting Holes Diameter:
4.5 mm
Circle Diameter Of The Mounting Holes:
46 mm
Shaft End:
keyed
Nominal Speed:
9000 rpm LXM32.U60N4 1.5 A, 480 V, three phase || 9000 rpm LXM32.U60N4 1.5 A, 400 V, three phase || 4000 rpm LXM32.U45M2 1.5 A, 230 V, single phase
Second Shaft:
without second shaft end
Shaft Diameter:
8 mm
Brake Pull-In Power:
5.8 W
[Us] Rated Supply Voltage:
400 V
Circularity Profile:
N/A
Nominal Torque:
0.176 N.m LXM32.U60N4 1.5 A, 480 V, three phase || 0.176 N.m LXM32.U60N4 1.5 A, 400 V, three phase || 0.184 N.m LXM32.U45M2 1.5 A, 230 V, single phase
Peak Stall Torque:
0.8 N.m LXM32.U60N4 1.5 A, 480 V, three phase || 0.8 N.m LXM32.U60N4 1.5 A, 400 V, three phase || 0.8 N.m LXM32.U45M2 1.5 A, 230 V, single phase
Holding Torque:
0.4 N.m holding brake
Continuous Power:
220 W
Maximum Axial Force Fa:
0.2 x Fr
Pvc Free:
Yes
Motor Flange Size:
40 mm
Continuous Stall Torque:
0.21 N.m LXM32.U60N4 1.5 A, 480 V, three phase || 0.21 N.m LXM32.U60N4 1.5 A, 400 V, three phase || 0.21 N.m LXM32.U45M2 1.5 A, 230 V, single phase
Rohs Exemption Information:
Yes
Centring Collar Depth:
2.5 mm
Range Compatibility:
Lexium 32
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Stator Resistance:
17.2 Ohm 20 °C
Phase:
three phase
Maximum Permanent Current:
1.12 A
Ip Degree Of Protection:
IP50 standard
Holding Brake:
with
Type Of Cooling:
natural convection
Number Of Motor Poles:
10
Stator Electrical Time Constant:
0.85 ms 20 °C
Switching Frequency:
8 kHz
Maximum Current Irms:
4.7 A LXM32.U60N4 480 V || 4.7 A LXM32.U60N4 400 V || 4.7 A LXM32.U45M2 230 V
China Rohs Regulation:
X
Mounting Support:
international standard flange
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
