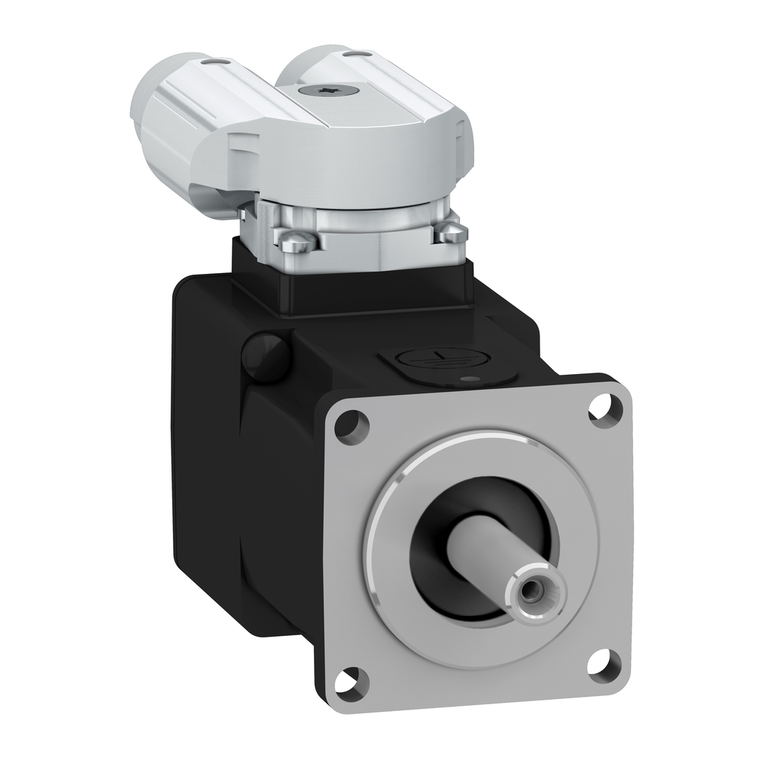

Schneider Electric BSH0401P26A2A Motor 40Mm Iec 0,18Nm 170W Ip65 No Key S
SKU:
BSH0401P26A2A
UPC:
3606485467108
MPN:
Condition:
New
[Us] Rated Supply Voltage:
400 V
Net Weight:
0.4 kg
Maximum Current Irms:
4.7 A LXM32.U60N4 480 V || 4.7 A LXM32.U60N4 400 V || 4.7 A LXM32.U45M2 230 V
Rohs Exemption Information:
Yes
Range Compatibility:
Lexium 32
Holding Brake:
without
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Type Of Cooling:
natural convection
Switching Frequency:
8 kHz
Stator Resistance:
17.2 Ohm 20 °C
Number Of Mounting Holes:
4
Mounting Support:
international standard flange
Nominal Output Power:
166 W LXM32.U60N4 1.5 A, 480 V, three phase || 166 W LXM32.U60N4 1.5 A, 400 V, three phase || 77 W LXM32.U45M2 1.5 A, 230 V, single phase
Stator Electrical Time Constant:
0.85 ms 20 °C
Speed Feedback Resolution:
32768 points/turn
Electrical Connection:
rotatable right-angled connectors
Shaft Diameter:
8 mm
Torque Constant:
0.19 N.m/A 120 °C
Mercury Free:
Yes
Continuous Stall Current:
1.12 A
Circle Diameter Of The Mounting Holes:
46 mm
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Centring Collar Diameter:
30 mm
Rotor Inertia:
0.0232 kg.cm²
Continuous Power:
220 W
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Maximum Permanent Current:
1.12 A
Nominal Torque:
0.176 N.m LXM32.U60N4 1.5 A, 480 V, three phase || 0.176 N.m LXM32.U60N4 1.5 A, 400 V, three phase || 0.184 N.m LXM32.U45M2 1.5 A, 230 V, single phase
Nominal Speed:
9000 rpm LXM32.U60N4 1.5 A, 480 V, three phase || 9000 rpm LXM32.U60N4 1.5 A, 400 V, three phase || 4000 rpm LXM32.U45M2 1.5 A, 230 V, single phase
Product Or Component Type:
servo motor
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Device Short Name:
BSH
Phase:
three phase
Motor Flange Size:
40 mm
Number Of Motor Poles:
10
Mounting Holes Diameter:
4.5 mm
Length:
73.4 mm
Feedback Type:
single turn SinCos Hiperface
Number Of Motor Stacks:
1
Shaft End:
smooth shaft
Continuous Stall Torque:
0.21 N.m LXM32.U60N4 1.5 A, 480 V, three phase || 0.21 N.m LXM32.U60N4 1.5 A, 400 V, three phase || 0.21 N.m LXM32.U45M2 1.5 A, 230 V, single phase
Maximum Mechanical Speed:
10000 rpm
Second Shaft:
without second shaft end
Pvc Free:
Yes
Shaft Length:
25 mm
Ip Degree Of Protection:
IP65 standard
Maximum Axial Force Fa:
0.2 x Fr
Peak Stall Torque:
0.8 N.m LXM32.U60N4 1.5 A, 480 V, three phase || 0.8 N.m LXM32.U60N4 1.5 A, 400 V, three phase || 0.8 N.m LXM32.U45M2 1.5 A, 230 V, single phase
