Schneider Electric

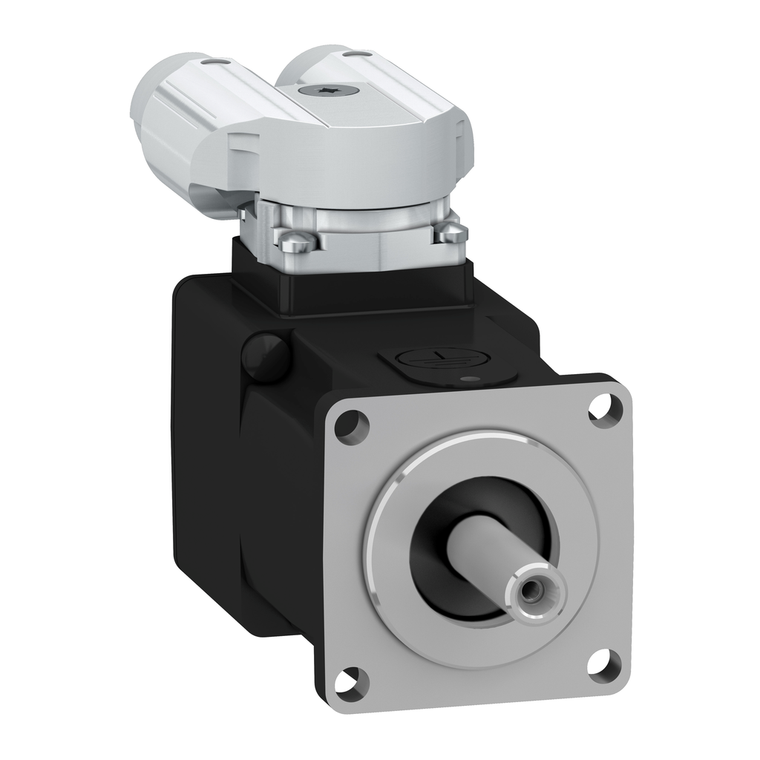

Schneider Electric BSH0401P27A2A Motor 40Mm Iec 0,18Nm 170W Ip65 No Key S

SKU:

BSH0401P27A2A

UPC:

3.60649E+12

MPN:

Condition:

New

Circle Diameter Of The Mounting Holes:

46 mm

Number Of Mounting Holes:

4

Mounting Support:

international standard flange

Phase:

three phase

Shaft Diameter:

8 mm

Product Or Component Type:

servo motor

Centring Collar Diameter:

30 mm

Rohs Exemption Information:

Yes

Continuous Power:

220 W

Pvc Free:

Yes

Holding Brake:

without

Centring Collar Depth:

2.5 mm

Rotor Inertia:

0.0232 kg.cm²

Peak Stall Torque:

0.8 N.m LXM32.U60N4 1.5 A, 480 V, three phase || 0.8 N.m LXM32.U60N4 1.5 A, 400 V, three phase || 0.8 N.m LXM32.U45M2 1.5 A, 230 V, single phase

Mounting Holes Diameter:

4.5 mm

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Ip Degree Of Protection:

IP65 standard

Net Weight:

0.4 kg

Speed Feedback Resolution:

32768 points/turn x 4096 turns

Range Compatibility:

Lexium 32

Nominal Speed:

9000 rpm LXM32.U60N4 1.5 A, 480 V, three phase || 9000 rpm LXM32.U60N4 1.5 A, 400 V, three phase || 4000 rpm LXM32.U45M2 1.5 A, 230 V, single phase

Device Short Name:

BSH

Shaft End:

smooth shaft

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Continuous Stall Torque:

0.21 N.m LXM32.U60N4 1.5 A, 480 V, three phase || 0.21 N.m LXM32.U60N4 1.5 A, 400 V, three phase || 0.21 N.m LXM32.U45M2 1.5 A, 230 V, single phase

Maximum Current Irms:

4.7 A LXM32.U60N4 480 V || 4.7 A LXM32.U60N4 400 V || 4.7 A LXM32.U45M2 230 V

Continuous Stall Current:

1.12 A

Environmental Disclosure:

ENVPEP111049EN

Maximum Permanent Current:

1.12 A

Number Of Motor Poles:

10

Motor Flange Size:

40 mm

Switching Frequency:

8 kHz

Type Of Cooling:

natural convection

Feedback Type:

multiturn SinCos Hiperface

Mercury Free:

Yes

[Us] Rated Supply Voltage:

400 V

Electrical Connection:

rotatable right-angled connectors

Back Emf Constant:

13.6 V/krpm 20 °C

Nominal Torque:

0.176 N.m LXM32.U60N4 1.5 A, 480 V, three phase || 0.176 N.m LXM32.U60N4 1.5 A, 400 V, three phase || 0.184 N.m LXM32.U45M2 1.5 A, 230 V, single phase

China Rohs Regulation:

X

Nominal Output Power:

166 W LXM32.U60N4 1.5 A, 480 V, three phase || 166 W LXM32.U60N4 1.5 A, 400 V, three phase || 77 W LXM32.U45M2 1.5 A, 230 V, single phase

Shaft Length:

25 mm

Torque Constant:

0.19 N.m/A 120 °C

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Stator Inductance:

14.6 mH 20 °C

Number Of Motor Stacks:

1

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Maximum Axial Force Fa:

0.2 x Fr

Circularity Profile:

N/A

Length:

73.4 mm

Second Shaft:

without second shaft end

Maximum Mechanical Speed:

10000 rpm

Sustainable Offer Status:

Green Premium product

Stator Resistance:

17.2 Ohm 20 °C

Stator Electrical Time Constant:

0.85 ms 20 °C

Datasheet:

View
