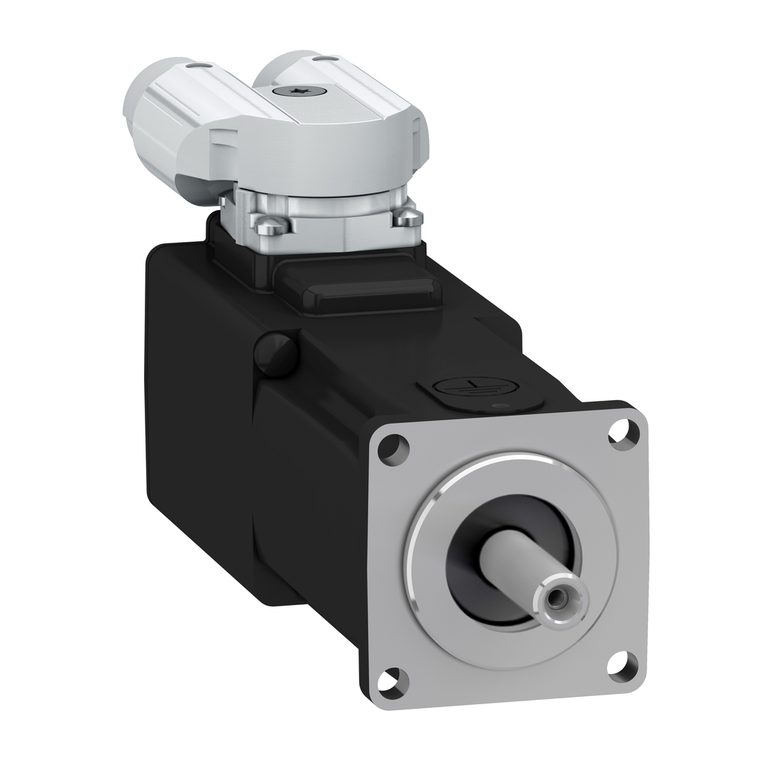

Schneider Electric BSH0402P26F2A Motor 40Mm Iec 0,34Nm 320W Ip65 No Key S
SKU:
BSH0402P26F2A
UPC:
3606485467320
MPN:
Condition:
New
Stator Inductance:
12.8 mH 20 °C
Maximum Axial Force Fa:
0.2 x Fr
Pvc Free:
Yes
Continuous Power:
398 W
Shaft End:
smooth shaft
Environmental Disclosure:
ENVPEP111049EN
Net Weight:
0.8 kg
Circularity Profile:
N/A
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Mercury Free:
Yes
Electrical Connection:
rotatable right-angled connectors
Holding Brake:
with
Number Of Motor Poles:
10
Holding Torque:
0.4 N.m holding brake
Maximum Current Irms:
6 A LXM32.U60N4 480 V || 6 A LXM32.U60N4 400 V || 6 A LXM32.U45M2 230 V
Centring Collar Depth:
2.5 mm
Speed Feedback Resolution:
32768 points/turn
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Mounting Support:
international standard flange
Peak Stall Torque:
1.37 N.m LXM32.U60N4 1.5 A, 480 V, three phase || 1.37 N.m LXM32.U60N4 1.5 A, 400 V, three phase || 1.37 N.m LXM32.U45M2 1.5 A, 230 V, single phase
Continuous Stall Current:
1.5 A
Shaft Diameter:
8 mm
Second Shaft:
without second shaft end
Length:
119.4 mm
Sustainable Offer Status:
Green Premium product
Circle Diameter Of The Mounting Holes:
46 mm
Ip Degree Of Protection:
IP65 standard
Feedback Type:
single turn SinCos Hiperface
Switching Frequency:
8 kHz
Type Of Cooling:
natural convection
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Torque Constant:
0.253 N.m/A 120 °C
China Rohs Regulation:
X
Centring Collar Diameter:
30 mm
Continuous Stall Torque:
0.38 N.m LXM32.U60N4 1.5 A, 480 V, three phase || 0.38 N.m LXM32.U60N4 1.5 A, 400 V, three phase || 0.38 N.m LXM32.U45M2 1.5 A, 230 V, single phase
Motor Flange Size:
40 mm
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
[Us] Rated Supply Voltage:
400 V
Brake Pull-In Power:
5.8 W
Stator Resistance:
11.6 Ohm 20 °C
Nominal Torque:
0.292 N.m LXM32.U60N4 1.5 A, 480 V, three phase || 0.307 N.m LXM32.U60N4 1.5 A, 400 V, three phase || 0.364 N.m LXM32.U45M2 1.5 A, 230 V, single phase
Maximum Mechanical Speed:
10000 rpm
Nominal Speed:
9000 rpm LXM32.U60N4 1.5 A, 480 V, three phase || 9000 rpm LXM32.U60N4 1.5 A, 400 V, three phase || 4000 rpm LXM32.U45M2 1.5 A, 230 V, single phase
Shaft Length:
25 mm
Rohs Exemption Information:
Yes
Number Of Mounting Holes:
4
Maximum Permanent Current:
1.5 A
Device Short Name:
BSH
Rotor Inertia:
0.0588 kg.cm²
Number Of Motor Stacks:
2
Product Or Component Type:
servo motor
Stator Electrical Time Constant:
1.1 ms 20 °C
Range Compatibility:
Lexium 32
Mounting Holes Diameter:
4.5 mm
Phase:
three phase
Back Emf Constant:
18 V/krpm 20 °C
Nominal Output Power:
275 W LXM32.U60N4 1.5 A, 480 V, three phase || 289 W LXM32.U60N4 1.5 A, 400 V, three phase || 152 W LXM32.U45M2 1.5 A, 230 V, single phase
