Schneider Electric

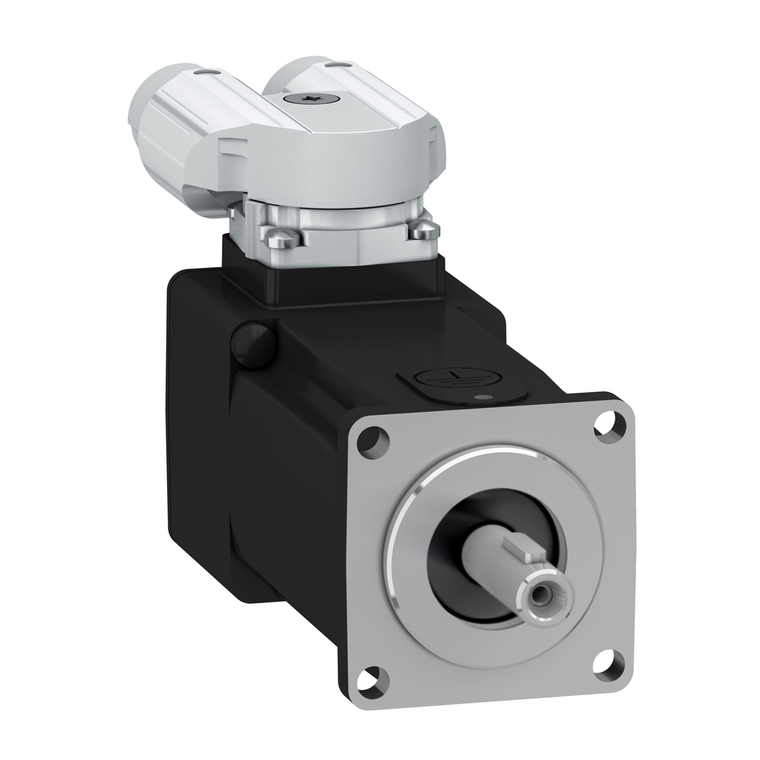

Schneider Electric BSH0402P37A2A Motor 40Mm Iec 0,34Nm 320W Ip65 Key Shaf

SKU:

BSH0402P37A2A

UPC:

3606485467290

MPN:

Condition:

New

Number Of Motor Poles:

10

Device Short Name:

BSH

Nominal Speed:

9000 rpm LXM32.U60N4 1.5 A, 480 V, three phase || 9000 rpm LXM32.U60N4 1.5 A, 400 V, three phase || 4000 rpm LXM32.U45M2 1.5 A, 230 V, single phase

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Electrical Connection:

rotatable right-angled connectors

Shaft Diameter:

8 mm

Torque Constant:

0.253 N.m/A 120 °C

Centring Collar Diameter:

30 mm

Shaft Length:

25 mm

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Number Of Mounting Holes:

4

Length:

93.4 mm

Nominal Output Power:

275 W LXM32.U60N4 1.5 A, 480 V, three phase || 289 W LXM32.U60N4 1.5 A, 400 V, three phase || 152 W LXM32.U45M2 1.5 A, 230 V, single phase

Maximum Permanent Current:

1.5 A

Rotor Inertia:

0.0419 kg.cm²

Pvc Free:

Yes

China Rohs Regulation:

X

Continuous Power:

398 W

Peak Stall Torque:

1.37 N.m LXM32.U60N4 1.5 A, 480 V, three phase || 1.37 N.m LXM32.U60N4 1.5 A, 400 V, three phase || 1.37 N.m LXM32.U45M2 1.5 A, 230 V, single phase

Speed Feedback Resolution:

32768 points/turn x 4096 turns

Sustainable Offer Status:

Green Premium product

Circle Diameter Of The Mounting Holes:

46 mm

Maximum Mechanical Speed:

10000 rpm

Continuous Stall Current:

1.5 A

Mounting Holes Diameter:

4.5 mm

Switching Frequency:

8 kHz

Circularity Profile:

N/A

Number Of Motor Stacks:

2

Environmental Disclosure:

ENVPEP111049EN

Key Width:

12 mm

Second Shaft:

without second shaft end

Mercury Free:

Yes

Nominal Torque:

0.292 N.m LXM32.U60N4 1.5 A, 480 V, three phase || 0.307 N.m LXM32.U60N4 1.5 A, 400 V, three phase || 0.364 N.m LXM32.U45M2 1.5 A, 230 V, single phase

Holding Brake:

without

Product Or Component Type:

servo motor

Centring Collar Depth:

2.5 mm

Rohs Exemption Information:

Yes

Mounting Support:

international standard flange

Motor Flange Size:

40 mm

Continuous Stall Torque:

0.38 N.m LXM32.U60N4 1.5 A, 480 V, three phase || 0.38 N.m LXM32.U60N4 1.5 A, 400 V, three phase || 0.38 N.m LXM32.U45M2 1.5 A, 230 V, single phase

Net Weight:

0.6 kg

Phase:

three phase

Feedback Type:

multiturn SinCos Hiperface

Ip Degree Of Protection:

IP65 standard

Shaft End:

keyed

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Maximum Current Irms:

6 A LXM32.U60N4 480 V || 6 A LXM32.U60N4 400 V || 6 A LXM32.U45M2 230 V

Back Emf Constant:

18 V/krpm 20 °C

Range Compatibility:

Lexium 32

[Us] Rated Supply Voltage:

400 V

Type Of Cooling:

natural convection

Stator Resistance:

11.6 Ohm 20 °C

Stator Electrical Time Constant:

1.1 ms 20 °C

Maximum Axial Force Fa:

0.2 x Fr

Stator Inductance:

12.8 mH 20 °C

Datasheet:

View
