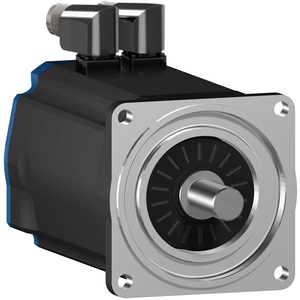

Schneider Electric BSH1001P02F2A Bsh Motor Iec 100Mm 3,4 Nmwo Key Ip40 Si
SKU:
BSH1001P02F2A
UPC:
3389118138094
MPN:
Condition:
New
Mercury Free:
Yes
Rotor Inertia:
2.018 kg.cm²
Nominal Torque:
3 N.m LXM15LD21M3, 230 V, single phase || 3 N.m LXM15LD17N4, 230 V, three phase || 3 N.m LXM15LD21M3, 230 V, three phase || 3.16 N.m LXM05AD17M3X, 200...240 V, three phase || 3.16 N.m LXM05BD17M3X, 200...240 V, three phase || 3.16 N.m LXM05CD17M3X, 2
Rohs Exemption Information:
Yes
Maximum Mechanical Speed:
6000 rpm
Product Compatibility:
LXM15LD21M3 230 V single phase || LXM05AD22N4 380...480 V three phase || LXM05BD22N4 380...480 V three phase || LXM05CD22N4 380...480 V three phase || LXM15LD17N4 400 V three phase || LXM15LD17N4 480 V three phase || LXM32.D18N4 400 V three phase ||
Pvc Free:
Yes
Holding Brake:
with
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Centring Collar Depth:
3.5 mm
Shaft End:
untapped
Warranty:
18 months
Continuous Stall Torque:
3.39 N.m LXM15LD21M3, 230 V, single phase || 3.4 N.m LXM05AD22N4, 380...480 V, three phase || 3.4 N.m LXM05BD17M3X, 200...240 V, three phase || 3.4 N.m LXM05BD22N4, 380...480 V, three phase || 3.4 N.m LXM05CD17M3X, 200...240 V, three phase || 3.4 N.m
Sustainable Offer Status:
Green Premium product
Range Compatibility:
Lexium 15 || Lexium 05 || Lexium 32
Ip Degree Of Protection:
IP50 standard
Nominal Output Power:
1300 W LXM15LD17N4, 400 V, three phase || 900 W LXM05AD22N4, 380...480 V, three phase || 900 W LXM05BD22N4, 380...480 V, three phase || 900 W LXM05CD22N4, 380...480 V, three phase || 950 W LXM15LD17N4, 230 V, three phase || 950 W LXM15LD21M3, 230 V,
Peak Stall Torque:
7.08 N.m LXM15LD21M3, 230 V, single phase || 7.1 N.m LXM05AD22N4, 380...480 V, three phase || 7.1 N.m LXM05BD17M3X, 200...240 V, three phase || 7.1 N.m LXM05BD22N4, 380...480 V, three phase || 7.1 N.m LXM05CD17M3X, 200...240 V, three phase || 7.1 N.m
Brake Pull-In Power:
18 W
Continuous Power:
1.6 W
Back Emf Constant:
60 V/krpm 120 °C
Motor Flange Size:
100 mm
Maximum Axial Force Fa:
0.2 x Fr
Nominal Speed:
3000 rpm LXM15LD10N4, 230 V, three phase || 1500 rpm LXM05CD17M3X, 200...240 V, three phase || 4500 rpm LXM15LD10N4, 400 V, three phase || 4500 rpm LXM15LD17N4, 400 V, three phase || 6000 rpm LXM15LD10N4, 480 V, three phase || 6000 rpm LXM15LD17N4, 4
Length:
199.5 mm
Holding Torque:
9 N.m holding brake
Second Shaft:
without second shaft end
Phase:
three phase
Shaft Diameter:
19 mm
Net Weight:
4.8 kg
Circle Diameter Of The Mounting Holes:
115 mm
Environmental Disclosure:
ENVPEP111049EN
China Rohs Regulation:
X
Shaft Length:
40 mm
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Torque Constant:
0.89 N.m/A 120 °C
Speed Feedback Resolution:
131072 points/turn x 4096 turns
Stator Resistance:
3.8 Ohm 20 °C
[Us] Rated Supply Voltage:
480 V
Type Of Cooling:
natural convection
Circularity Profile:
N/A
Mounting Holes Diameter:
9 mm
Device Short Name:
BSH
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Switching Frequency:
8 kHz
Feedback Type:
multiturn SinCos Hiperface
Stator Inductance:
17.6 mH 20 °C
Stator Electrical Time Constant:
4.63 ms 20 °C
Maximum Permanent Current:
0
Centring Collar Diameter:
95 mm
Maximum Current Irms:
12 A LXM15LD21M3 || 12 A LXM32.D18N4 || 12 A LXM15LD10N4 || 12 A LXM15LD17N4 || 12 A LXM05AD17M3X || 12 A LXM05AD22N4 || 12 A LXM05BD17M3X || 12 A LXM05BD22N4 || 12 A LXM05CD17M3X || 12 A LXM05CD22N4
Number Of Motor Poles:
8
Continuous Stall Current:
3.5 A
Number Of Motor Stacks:
1
Maximum Radial Force Fr:
530 N 5000 rpm || 570 N 4000 rpm || 630 N 3000 rpm || 720 N 2000 rpm || 900 N 1000 rpm
Number Of Mounting Holes:
4
Mounting Support:
international standard flange
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
