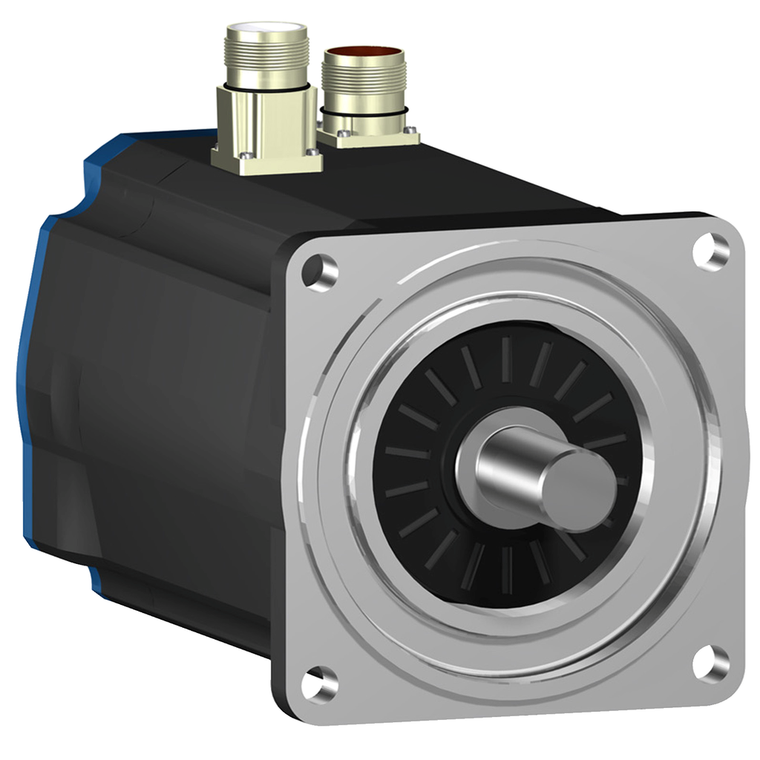

Schneider Electric BSH1001P12A1A Bsh Motor Iec 100Mm 3,4 Nm With Key Ip50

(No reviews yet) Write a Review

Write a Review

Schneider Electric BSH1001P12A1A Bsh Motor Iec 100Mm 3,4 Nm With Key Ip50

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

BSH1001P12A1A

UPC:

3.38912E+12

MPN:

Condition:

New

Sustainable Offer Status:

Green Premium product

Continuous Stall Torque:

3.39 N.m LXM15LD21M3, 230 V, single phase || 3.4 N.m LXM05AD22N4, 380...480 V, three phase || 3.4 N.m LXM05BD17M3X, 200...240 V, three phase || 3.4 N.m LXM05BD22N4, 380...480 V, three phase || 3.4 N.m LXM05CD17M3X, 200...240 V, three phase || 3.4 N.m

Mounting Holes Diameter:

9 mm

Maximum Axial Force Fa:

0.2 x Fr

Circularity Profile:

N/A

Warranty:

18 months

Length:

168.5 mm

Mounting Support:

international standard flange

Phase:

three phase

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Switching Frequency:

8 kHz

Circle Diameter Of The Mounting Holes:

115 mm

Electrical Connection:

straight connectors

Maximum Mechanical Speed:

6000 rpm

Ip Degree Of Protection:

IP50 standard

Number Of Motor Poles:

8

Maximum Radial Force Fr:

530 N 5000 rpm || 570 N 4000 rpm || 630 N 3000 rpm || 720 N 2000 rpm || 900 N 1000 rpm

Pvc Free:

Yes

Nominal Speed:

3000 rpm LXM15LD10N4, 230 V, three phase || 1500 rpm LXM05CD17M3X, 200...240 V, three phase || 4500 rpm LXM15LD10N4, 400 V, three phase || 4500 rpm LXM15LD17N4, 400 V, three phase || 6000 rpm LXM15LD10N4, 480 V, three phase || 6000 rpm LXM15LD17N4, 4

Continuous Stall Current:

3.5 A

Centring Collar Diameter:

95 mm

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Product Or Component Type:

servo motor

Range Compatibility:

Lexium 32 || Lexium 15 || Lexium 05

Type Of Cooling:

natural convection

Environmental Disclosure:

ENVPEP111049EN

Stator Resistance:

3.8 Ohm 20 °C

Feedback Type:

multiturn SinCos Hiperface

China Rohs Regulation:

X

Shaft Diameter:

19 mm

Rotor Inertia:

1.4 kg.cm²

Continuous Power:

1.6 W

Peak Stall Torque:

7.08 N.m LXM15LD21M3, 230 V, single phase || 7.1 N.m LXM05AD22N4, 380...480 V, three phase || 7.1 N.m LXM05BD17M3X, 200...240 V, three phase || 7.1 N.m LXM05BD22N4, 380...480 V, three phase || 7.1 N.m LXM05CD17M3X, 200...240 V, three phase || 7.1 N.m

Second Shaft:

without second shaft end

Maximum Permanent Current:

0

Number Of Mounting Holes:

4

Nominal Output Power:

1300 W LXM15LD17N4, 400 V, three phase || 900 W LXM05AD22N4, 380...480 V, three phase || 900 W LXM05BD22N4, 380...480 V, three phase || 900 W LXM05CD22N4, 380...480 V, three phase || 950 W LXM15LD17N4, 230 V, three phase || 950 W LXM15LD21M3, 230 V,

Mercury Free:

Yes

Shaft End:

keyed

Shaft Length:

40 mm

Back Emf Constant:

60 V/krpm 120 °C

Stator Inductance:

17.6 mH 20 °C

Nominal Torque:

3 N.m LXM15LD21M3, 230 V, single phase || 3 N.m LXM15LD17N4, 230 V, three phase || 3 N.m LXM15LD21M3, 230 V, three phase || 3.16 N.m LXM05AD17M3X, 200...240 V, three phase || 3.16 N.m LXM05BD17M3X, 200...240 V, three phase || 3.16 N.m LXM05CD17M3X, 2

Stator Electrical Time Constant:

4.63 ms 20 °C

Key Width:

30 mm

Net Weight:

4.2 kg

Torque Constant:

0.89 N.m/A 120 °C

Speed Feedback Resolution:

131072 points/turn x 4096 turns

Product Compatibility:

LXM15LD21M3 230 V single phase || LXM05AD22N4 380...480 V three phase || LXM05BD22N4 380...480 V three phase || LXM05CD22N4 380...480 V three phase || LXM15LD17N4 400 V three phase || LXM15LD17N4 480 V three phase || LXM32.D18N4 400 V three phase ||

Motor Flange Size:

100 mm

Maximum Current Irms:

12 A LXM15LD21M3 || 12 A LXM32.D18N4 || 12 A LXM15LD10N4 || 12 A LXM15LD17N4 || 12 A LXM05AD17M3X || 12 A LXM05AD22N4 || 12 A LXM05BD17M3X || 12 A LXM05BD22N4 || 12 A LXM05CD17M3X || 12 A LXM05CD22N4

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Number Of Motor Stacks:

1

Rohs Exemption Information:

Yes

[Us] Rated Supply Voltage:

480 V

Centring Collar Depth:

3.5 mm

Device Short Name:

BSH

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Holding Brake:

without
