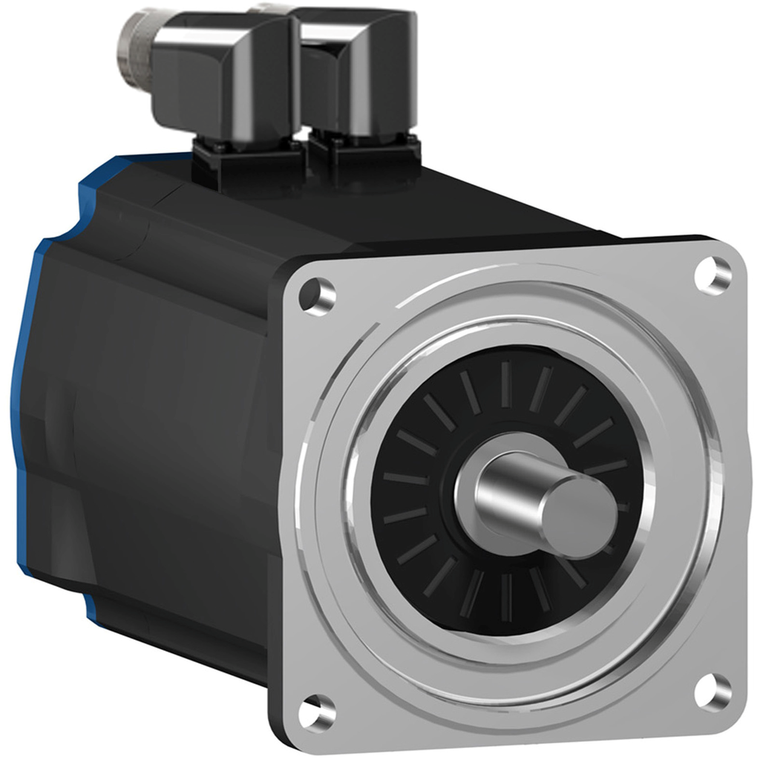

Schneider Electric BSH1001T32A2A Bsh Motor Iec 100Mm 3,4 Nm With Key Ip65
SKU:
BSH1001T32A2A
UPC:
3389118138742
MPN:
Condition:
New
Continuous Stall Current:
7.3 A
Ip Degree Of Protection:
IP65 standard || IP67 with IP67 kit
Maximum Axial Force Fa:
0.2 x Fr
Shaft Diameter:
19 mm
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Warranty:
18 months
Switching Frequency:
8 kHz
Continuous Power:
1.6 W
Mounting Support:
international standard flange
Motor Flange Size:
100 mm
Electrical Connection:
rotatable right-angled connectors
Range Compatibility:
Lexium 32 || Lexium 15 || Lexium 05
Shaft Length:
40 mm
Nominal Torque:
2.75 N.m LXM32.D30M2 10 A, 115 V, single phase || 2.9 N.m LXM05AD42M3X, 200...240 V, three phase || 2.9 N.m LXM05BD42M3X, 200...240 V, three phase || 2.9 N.m LXM05CD42M3X, 200...240 V, three phase || 2.9 N.m LXM05AD28M2, 200...240 V, single phase ||
Sustainable Offer Status:
Green Premium product
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Feedback Type:
multiturn SinCos Hiperface
Nominal Output Power:
700 W LXM32.D30M2 10 A, 115 V, single phase || 900 W LXM05AD42M3X, 200...240 V, three phase || 900 W LXM05BD42M3X, 200...240 V, three phase || 900 W LXM05CD42M3X, 200...240 V, three phase || 900 W LXM32.D18M2 6 A, 230 V, single phase || 500 W LXM05AD
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Maximum Mechanical Speed:
6000 rpm
Rohs Exemption Information:
Yes
Length:
168.5 mm
Second Shaft:
without second shaft end
Peak Stall Torque:
6.3 N.m LXM32.D30M2 10 A, 115 V, single phase || 8.5 N.m LXM05AD42M3X, 200...240 V, three phase || 8.5 N.m LXM05BD42M3X, 200...240 V, three phase || 8.5 N.m LXM05CD42M3X, 200...240 V, three phase || 8.5 N.m LXM05AD28F1, 110...120 V, single phase || 8
Maximum Permanent Current:
25.1 A
Centring Collar Depth:
3.5 mm
Maximum Radial Force Fr:
530 N 5000 rpm || 570 N 4000 rpm || 630 N 3000 rpm || 720 N 2000 rpm || 900 N 1000 rpm
Speed Feedback Resolution:
131072 points/turn x 4096 turns
Device Short Name:
BSH
Stator Inductance:
4 mH 20 °C
Product Compatibility:
LXM05AD28F1 110...120 V single phase || LXM05BD42M3X 200...240 V three phase || LXM05CD42M3X 200...240 V three phase || LXM15LD28M3 230 V three phase || LXM05AD28M2 200...240 V single phase || LXM05BD28F1 110...120 V single phase || LXM05BD28M2 200..
Mercury Free:
Yes
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Shaft End:
keyed
Stator Resistance:
0.87 Ohm 20 °C
Circle Diameter Of The Mounting Holes:
115 mm
Holding Brake:
without
Number Of Mounting Holes:
4
Stator Electrical Time Constant:
4.6 ms 20 °C
Torque Constant:
0.45 N.m/A 120 °C
Phase:
three phase
Rotor Inertia:
1.4 kg.cm²
Product Or Component Type:
servo motor
Mounting Holes Diameter:
9 mm
China Rohs Regulation:
X
Back Emf Constant:
29 V/krpm 120 °C
Continuous Stall Torque:
3.3 N.m LXM32.D30M2 10 A, 115 V, single phase || 3.4 N.m LXM05CD28M2, 200...240 V, single phase || 3.4 N.m LXM05CD42M3X, 200...240 V, three phase || 2.7 N.m LXM32.D18M2 6 A, 230 V, single phase || 3.39 N.m LXM15LD28M3, 230 V, three phase || 3.4 N.m L
[Us] Rated Supply Voltage:
480 V
Key Width:
30 mm
Maximum Current Irms:
18 A LXM32.D18M2 230 V || 25.1 A LXM05CD28F1 || 25.1 A LXM05CD28M2 || 25.1 A LXM05CD42M3X || 15 A LXM32.D30M2 115 V || 23 A LXM15LD28M3 || 25.1 A LXM05AD28F1 || 25.1 A LXM05AD28M2 || 25.1 A LXM05AD42M3X || 25.1 A LXM05BD28F1 || 25.1 A LXM05BD28M2 ||
Net Weight:
4.2 kg
Centring Collar Diameter:
95 mm
Nominal Speed:
2500 rpm LXM32.D30M2 10 A, 115 V, single phase || 1500 rpm LXM05BD28F1, 110...120 V, single phase || 1500 rpm LXM05CD28F1, 110...120 V, single phase || 4000 rpm LXM15LD28M3, 230 V, three phase || 3000 rpm LXM05AD28M2, 200...240 V, single phase || 300
